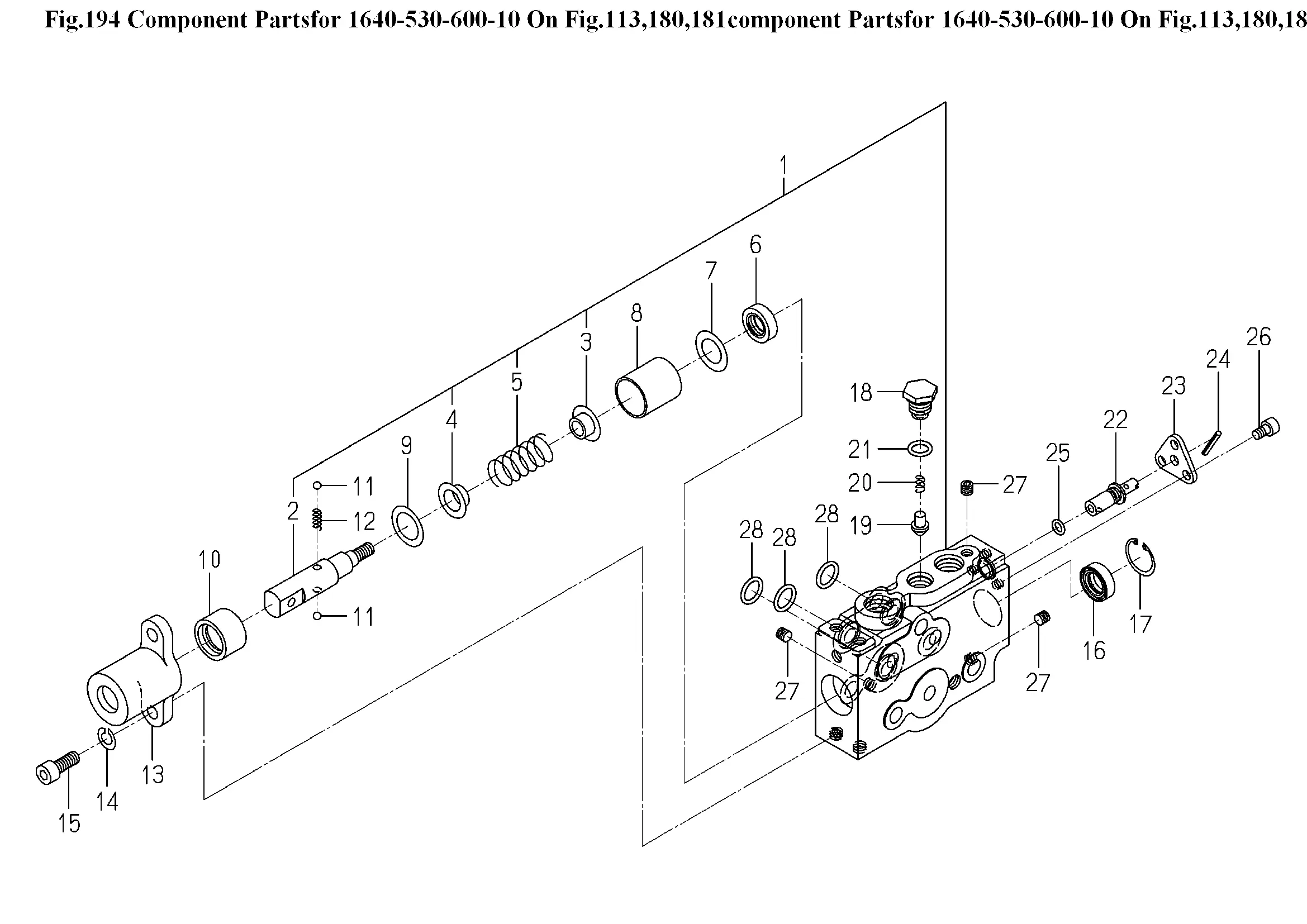

Einzelteile Steuerblock
Ersatzteile (56 Teile)
1
1640-530-610-10
1
1640-530-610-10
2
1640-530-613-00
2
1640-530-613-00
3
1640-530-614-00
3
1640-530-614-00
4
1640-530-615-00
4
1640-530-615-00
5
SPRING/HC042
5
SPRING/HC042
6
SEAL,OIL/TC4,14247
6
SEAL,OIL/TC4,14247
7
K211-004-006-00
7
K211-004-006-00
8
SLEEVE
8
SLEEVE
9
1640-530-623-00
9
1640-530-623-00
10
SLEEVE/DETENT
10
SLEEVE/DETENT
11
BALL,STEEL
11
BALL,STEEL
12
SPRING/HC015
12
SPRING/HC015
13
1640-530-626-00
13
1640-530-626-00
14
WASHER,SP/M8
14
WASHER,SP/M8
15
V220-540-802-00
15
V220-540-802-00
16
SEAL,OIL/TC4,14247
16
SEAL,OIL/TC4,14247
17
V705-140-024-00
17
V705-140-024-00
18
1640-530-628-00
18
1640-530-628-00
19
1640-530-629-00
19
1640-530-629-00
20
SPRING
20
SPRING
21
O-RING/1B,P12
21
O-RING/1B,P12
22
1640-530-631-00
22
1640-530-631-00
23
1640-530-632-00
23
1640-530-632-00
24
V580-140-302-50
24
V580-140-302-50
25
O-RING/1B,P7
25
O-RING/1B,P7
26
V220-540-601-00
26
V220-540-601-00
27
K200-014-007-00
27
K200-014-007-00
28
O-RING/1B,P14
28
O-RING/1B,P14
