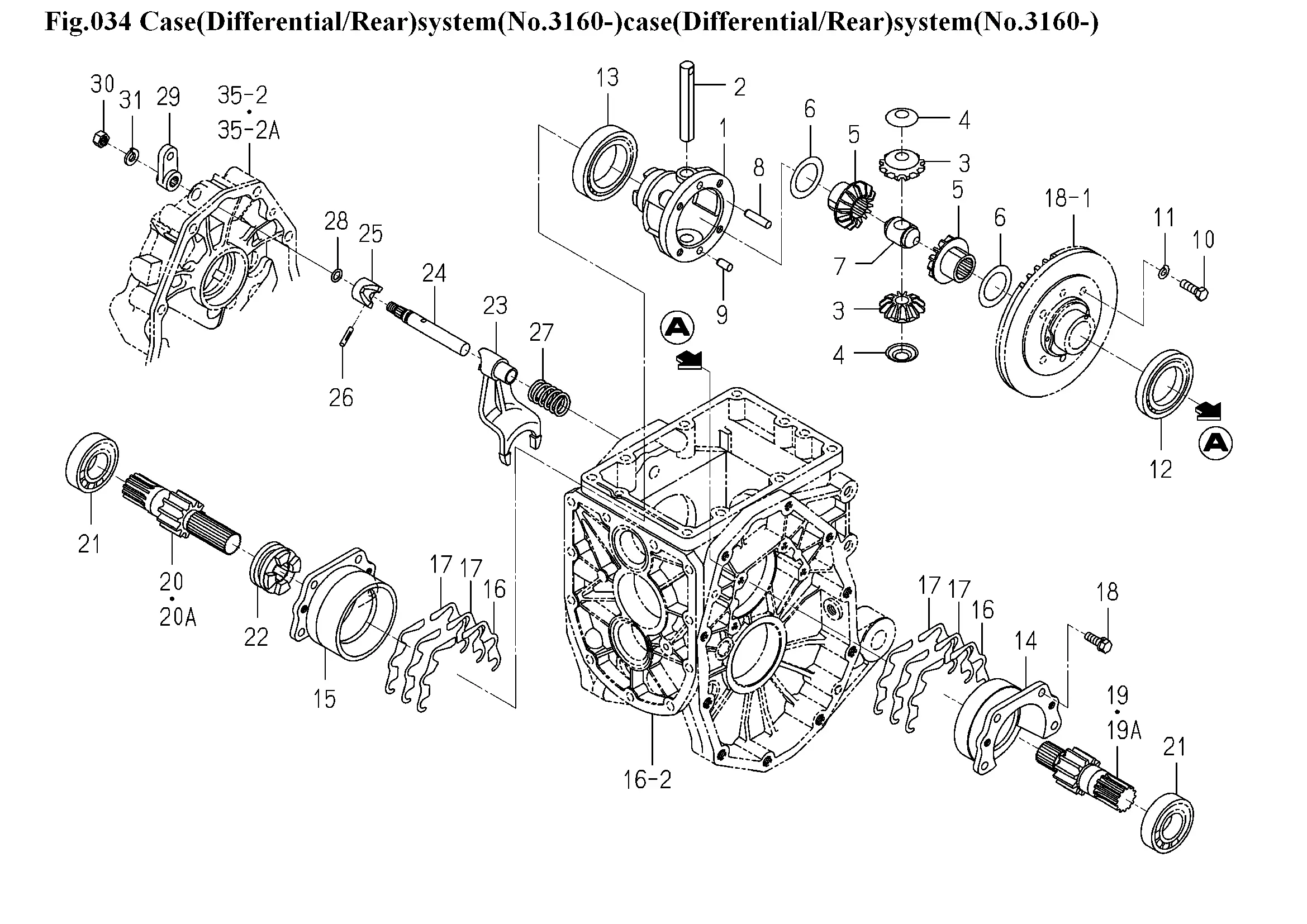

Differential ab S/N 3160
Ersatzteile (33 Teile)
1
1427-301-002-20
2
SHAFT,DIFF. PINION
3
PINION/BEVEL/12
4
COLLAR,PINION THRUST
5
GEAR/BEVEL/14
6
COLLAR,THRUST
7
Halter, Differenzialkegelrad
8
1672-301-002-00
9
PIN,ST,B/8X16
10
BOLT/M8X25
11
WASHER,SP/M8
12
BEARING,RB/6009
13
BEARING,RB/6010
14
METAL,DIFF-CASE LH
15
METAL,DIFF-CASE RH
16
1427-201-014-10
17
1427-201-015-10
18
BOLT,S/M8X25/7T
19
1717-304-001-00
19A
1717-304-001-10
20
1717-304-002-00
20A
1717-304-002-10
21
V600-410-620-60
22
1427-301-013-20
23
1427-301-014-10
24
1427-301-015-10
25
CAM,DIFF-LOCK
26
V530-240-502-40
27
SPRING,PRESS/40
28
O-RING/1A,P10A
29
ARM/DIFFLOCK
30
NUT/M10
31
WASHER,SP/M10
