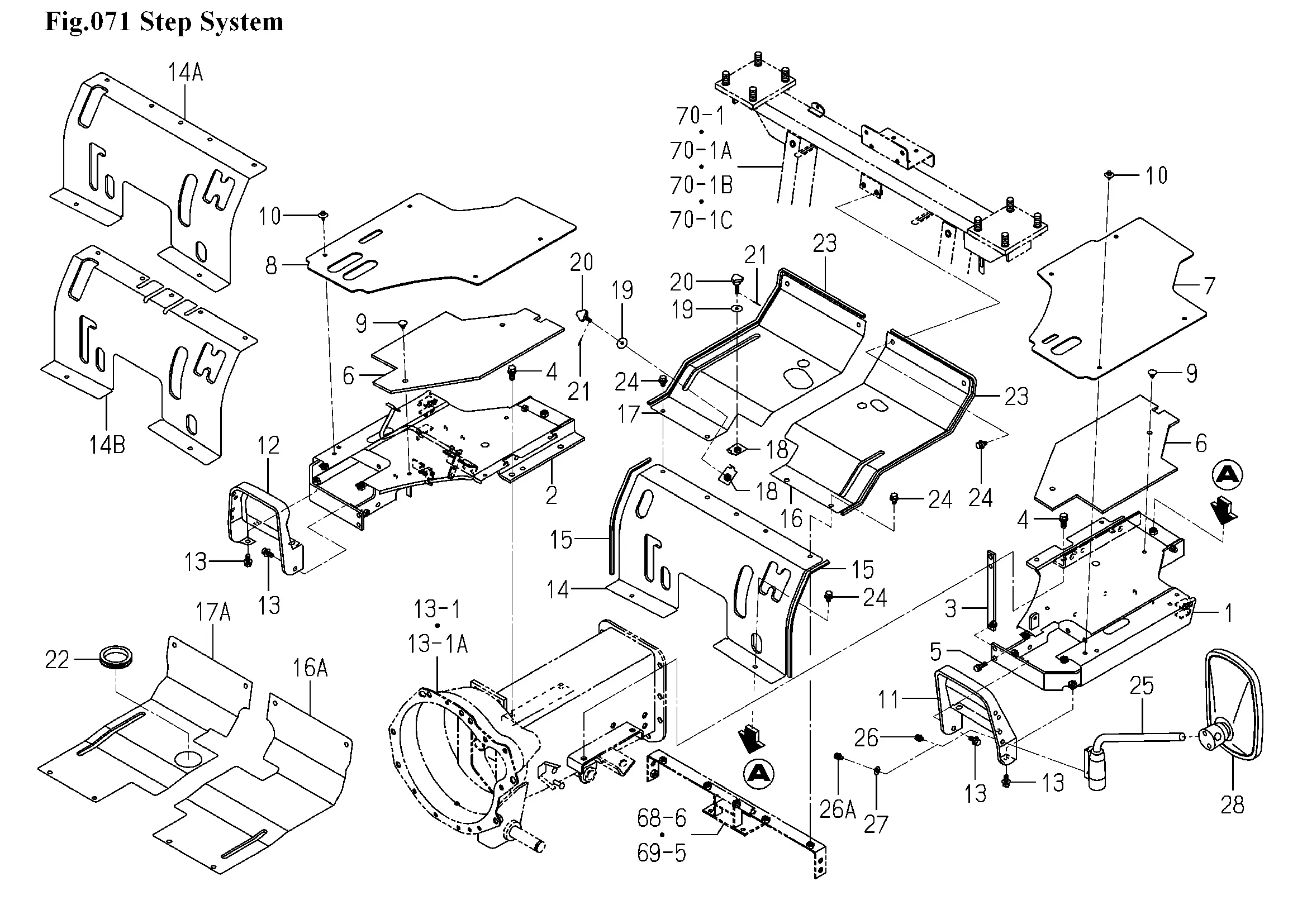

Sitzwanne, Abdeckungen
Ersatzteile (33 Teile)
1
STEP/LH COMP
2
Trittblech
3
1726-630-300-10
4
V211-261-002-50
5
BOLT,S/M8X25
6
Platte
7
Bodenmatte, li
8
Bodenmatte, re
9
CLIP(B)
10
Spreizniete
11
Blech, li
12
Blech, re
13
BOLT,SP/M8X20
14
1738-630-001-10
14A
1738-630-001-20
14B
1738-630-001-30
15
1738-630-012-00
16
1738-630-002-10
16A
COVER/LH
17
1738-630-003-10
17A
COVER/RH
18
1614-608-220-10
19
WASHER/6X24X2
20
BOLT/KNOB/M06X27
21
PIN,SPLIT/1.6X15
22
1725-410-078-00
23
1738-630-011-00
24
BOLT,SP/M8X16
25
ARM/MIRROR ASSY
26
V210-360-601-20
26A
BOLT,SP/M6X16
27
WASHER,PL/M8
28
MIRROR ASSY
