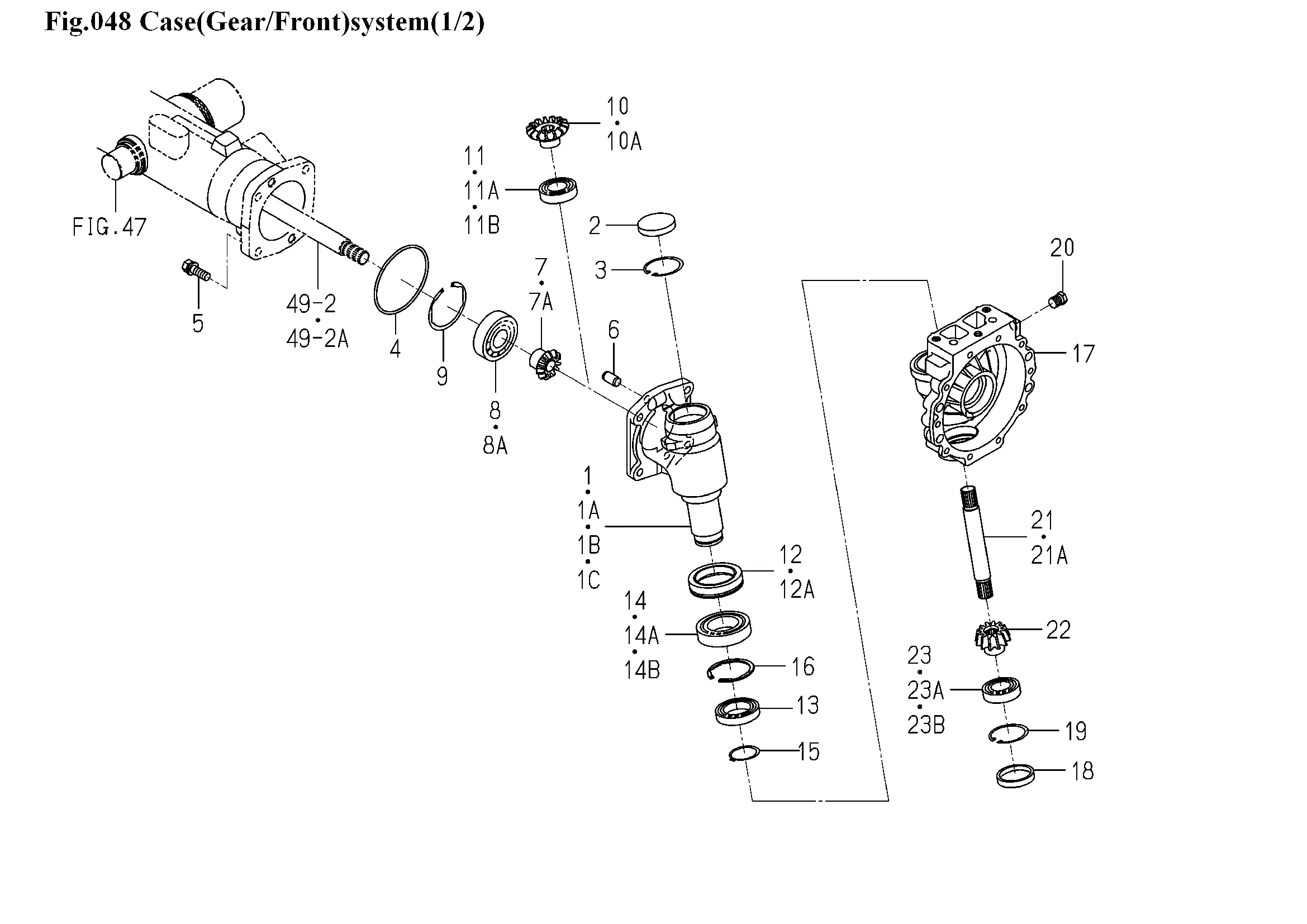

Gehäuse, Achsantrieb
Ersatzteile (76 Teile)
1
Achsschenkel
1A
1672-434-009-10
1B
Achsschenkel
1C
1726-434-011-30
2
1564-201-003-00
3
RING,SNAP/47 C
4
O-RING/1A,G90
5
V211-561-003-00
6
PIN,ST,B/10X24
7
Kegelrad, Z11
7A
1703-434-003-10
8
BEARING,RB/6305
8A
V600-410-630-50
9
RING,SNAP/R62
10
Kegelrad, Z15
10A
1703-434-004-10
11
V600-110-600-50
11A
V600-410-600-50
11B
BEARING/BALL
12
Wellendichtring
12A
SEAL/OIL ASSY
13
BEARING,RB/6907
14
BEARING,RB/6008
14A
V600-410-600-80
14B
BEARING/BALL
15
RING,SNAP/35 C
16
V707-140-055-00
17
1672-434-011-10
18
1564-201-003-00
19
RING,SNAP/47 C
20
PLUG/SCREW/SEAL
21
Welle
21A
1612-434-006-10
22
Zahnrad
23
V600-110-600-50
23A
V600-410-600-50
23B
BEARING/BALL
24
Steckachse
25
Tellerrad
25A
1672-434-008-10
26
SEAL/QLNY35571116
27
BEARING,RB/6205
27A
V600-410-620-50
27B
BEARING,RB/6205
28
BEARING,RB/6206
28A
V600-410-620-60
29
RING,SNAP/25 C
30
Deckel, Vorderachse
31
PIN,ST,B/10X24
32
BOLT,SP/M8X25
33
Achsschenkel, LH
33A
1717-434-013-10
33B
1717-434-013-20
33C
1717-434-013-40
34
1726-434-004-00
34A
1726-434-013-00
34B
1726-434-013-10
35
PIN,ST,B/10X24
35A
Verschlussdeckel f.Achsgehäuse
36
BOLT,S/M10X35/7T
36A
O-RING/1A,P41
37
BOLT,S/M8X25/7T
38
V251-341-002-8D
38A
1717-434-200-00
39
V304-460-010-00
39A
NIPPLE,GREASE
40
WASHER,SP/M10
40A
BOLT,S/M10X35/7T
41
V211-561-004-00
41A
V211-561-004-50
42
BOLT/SEAL
43
BOLT/M12X25/7T
43A
WASHER,SP/M10
44
WASHER,SP/M12
45
BOLT/M12X25/7T
46
WASHER,SP/M12
