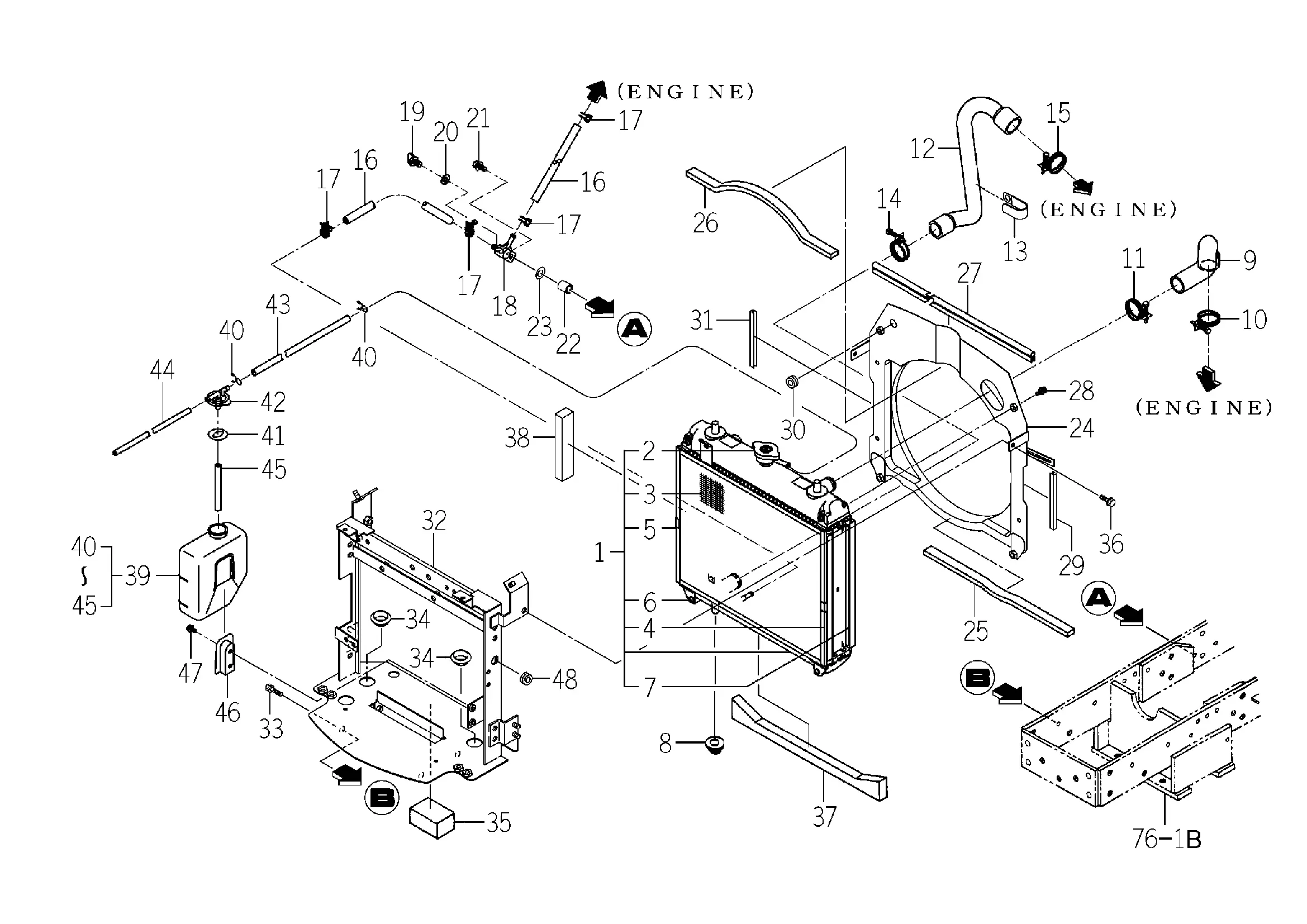

Kühler ab Seriennr. 1308
Ersatzteile (48 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
BUSH,LEVER
9
HOSE/RADIATOR/INLET
10
CLAMP/WIRE/36-44
11
J061-230-038-00
12
Schlauch, Kühler
13
HOLDER/JE/9-9
14
J061-230-038-00
15
CLAMP/WIRE/36-44
16
HOSE/250
17
J061-210-015-00
18
CONNECTOR
19
1424-101-203-00
20
PACKING
21
BOLT,SP/M8X40
22
Buchse 09x14x20
23
WASHER,PL/M8
24
SHROUD COMP
25
INSULATOR
26
INSULATOR
27
INSULATOR/550
28
V210-360-602-00
29
TRIM/130
30
Gummimuffe
31
TRIM/130
32
1750-102-810-00
33
V211-261-001-60
34
CAP/30
35
SEAL/45X50X80
36
BOLT,SP/M8X16
37
INSULATOR
38
SEAL/30X20X150
39
RESERVETANK ASSY
40
CLAMP
41
PACKING
42
CAP
43
1716-102-281-00
44
HOSE/RUBBER
45
6221-408-011-00
46
Halter
47
FLANGEBOLT/M6X12
48
GROMMET
