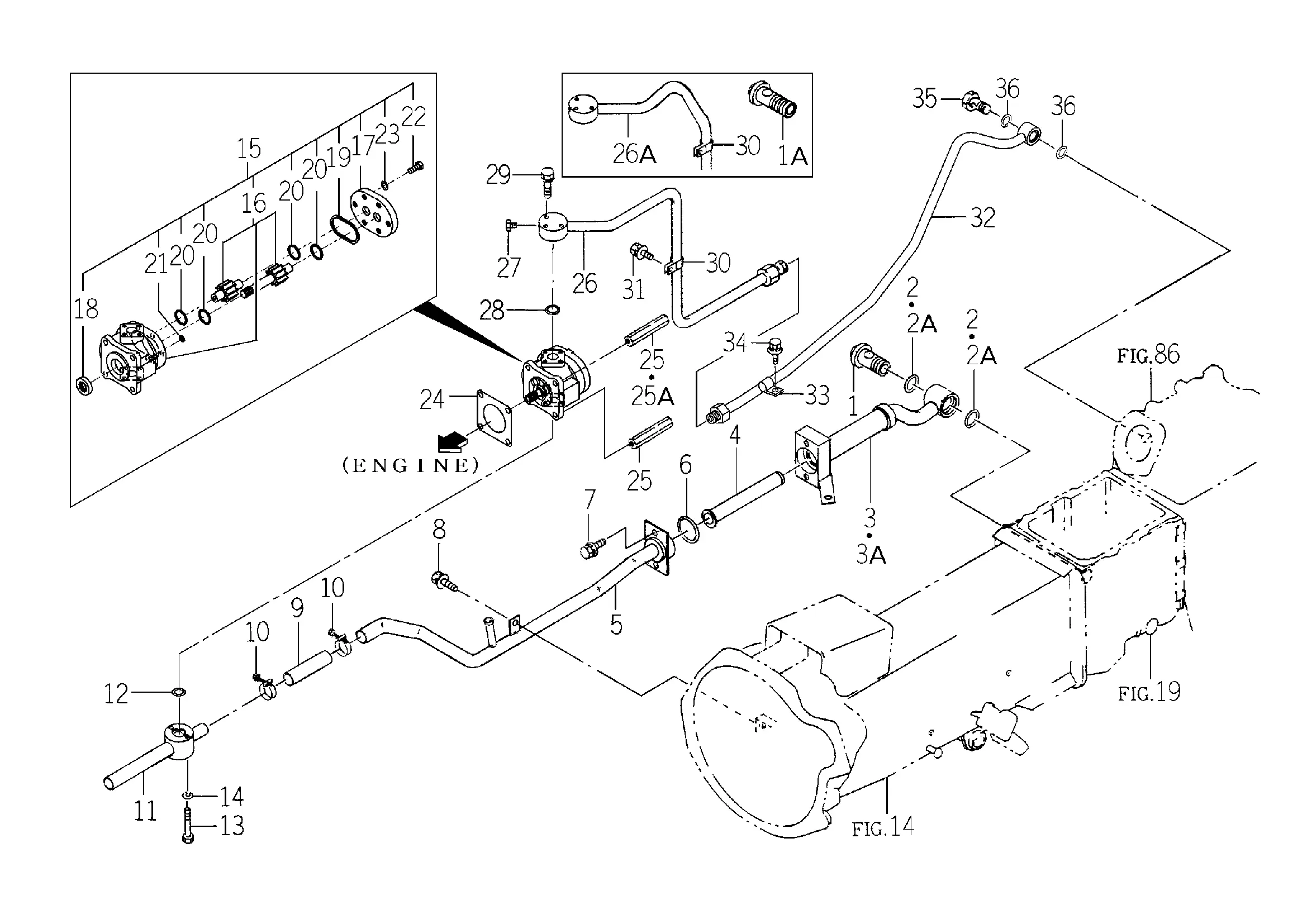

Hydraulikpumpe, Leitungen
Ersatzteile (41 Teile)
1
1750-508-001-00
1A
ADAPTER/BOLT/M28X2.0
2
O-RING/1B,P28
2A
O-RING/1A,P28
3
1750-508-210-10
3A
1750-508-210-20
4
Leitungsfilter
5
PIPE/SUCTION/MI COMP
6
O-RING/1A,G45
7
BOLT,SP/M8X20
8
BOLT,SP/M8X20
9
Schlauch
10
CLAMP/WIRE/28-36
11
1750-508-230-10
12
O-RING/1B,P20
13
V210-260-605-00
14
V401-160-006-00
15
PUMP,GEAR ASSY
16
K135-012-100-00
17
COVER,PUMP
18
SEAL,OIL/TC14287
19
O-RING/1B,G50 HS90
20
O-RING/1B,P22
21
O-RING/1B,P6
22
K135-002-009-00
23
V401-170-008-00
24
PACKING,OIL PUMP
25
NUT/M08
25A
NUT/M08
26
1750-508-240-10
26A
PIPE/DEL/FRONT COMP
27
PLUG/SCREW/SEAL
28
O-RING/1B,P20
29
BOLT,S/M6X30/7T
30
1675-508-003-00
31
BOLT,SP/M8X16
32
1750-508-250-10
33
1675-508-003-00
34
BOLT,SP/M8X16
35
ADAPTER/BOLT/G3/8
36
O-RING/1B,P18
