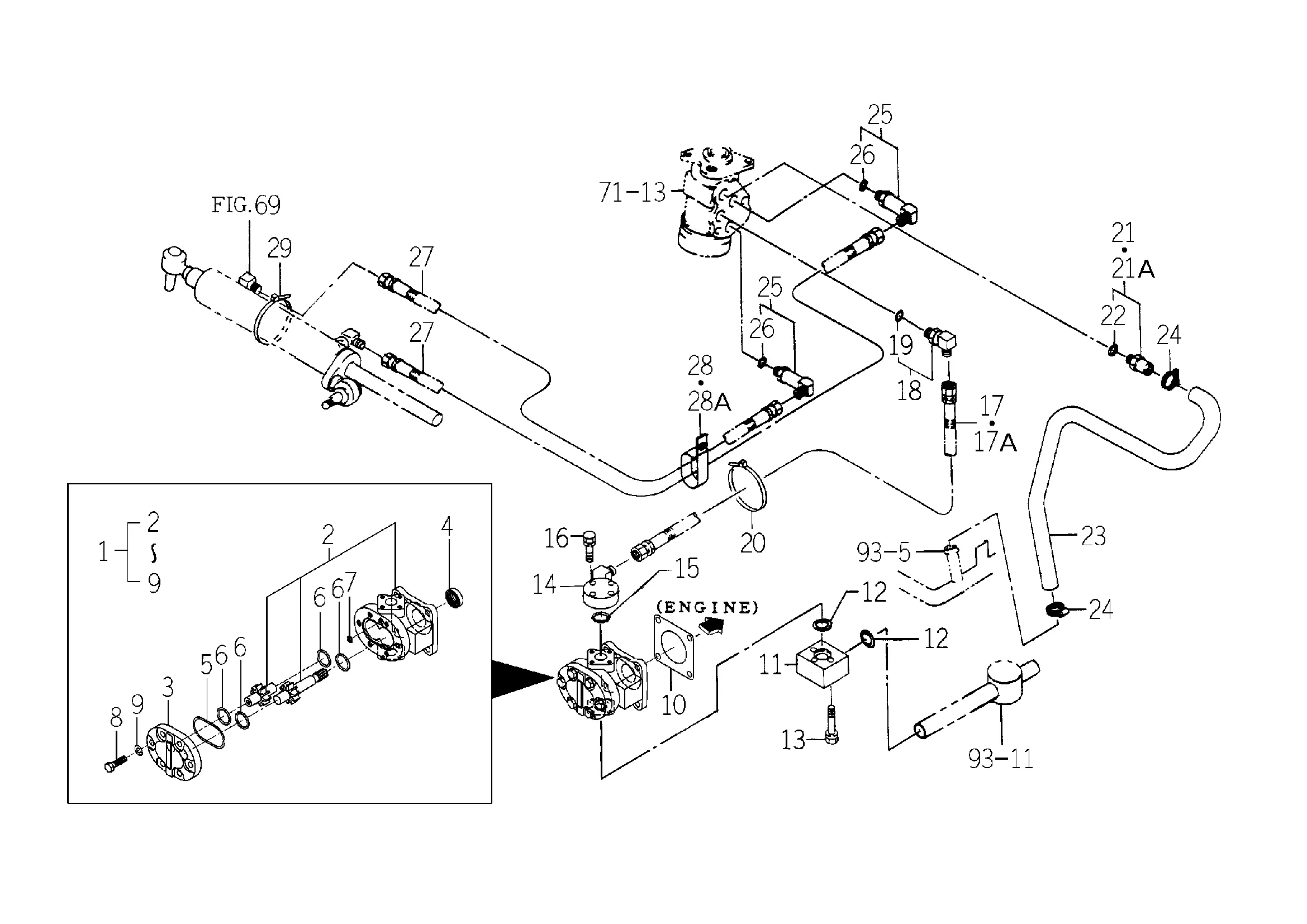

Hydraulikleitungen bis Seriennr. 1307
Ersatzteile (32 Teile)
1
Hydraulikpumpe, Lenkung
2
PUMP SET
3
COVER,PUMP
4
SEAL,OIL/TC14287
5
O-RING/1B,G50 HS90
6
O-RING/1B,P22
7
O-RING/1B,P6
8
K135-002-009-00
9
V401-170-008-00
10
PACKING,OIL PUMP
11
1709-407-002-00
12
O-RING/1B,P20
13
V210-560-604-50
14
Flansch
15
O-RING/1B,P20
16
BOLT,S/M6X30/7T
17
8664-555-330-00
17A
3676-374-310-00
18
ADAPTER/L/G1/4 ASSY
19
O-RING/1B,P11
20
BAND,WIRE/140
21
1682-408-230-00
21A
1682-408-230-10
22
O-RING/1B,P11
23
Schlauch
24
J061-116-025-00
25
ELBOW/90DEG/L ASSY
26
O-RING/1B,P11
27
Hydraulikschlauch
28
CLAMP,RADIATOR HOSE
28A
CLAMP/28X55
29
1342-402-006-00
