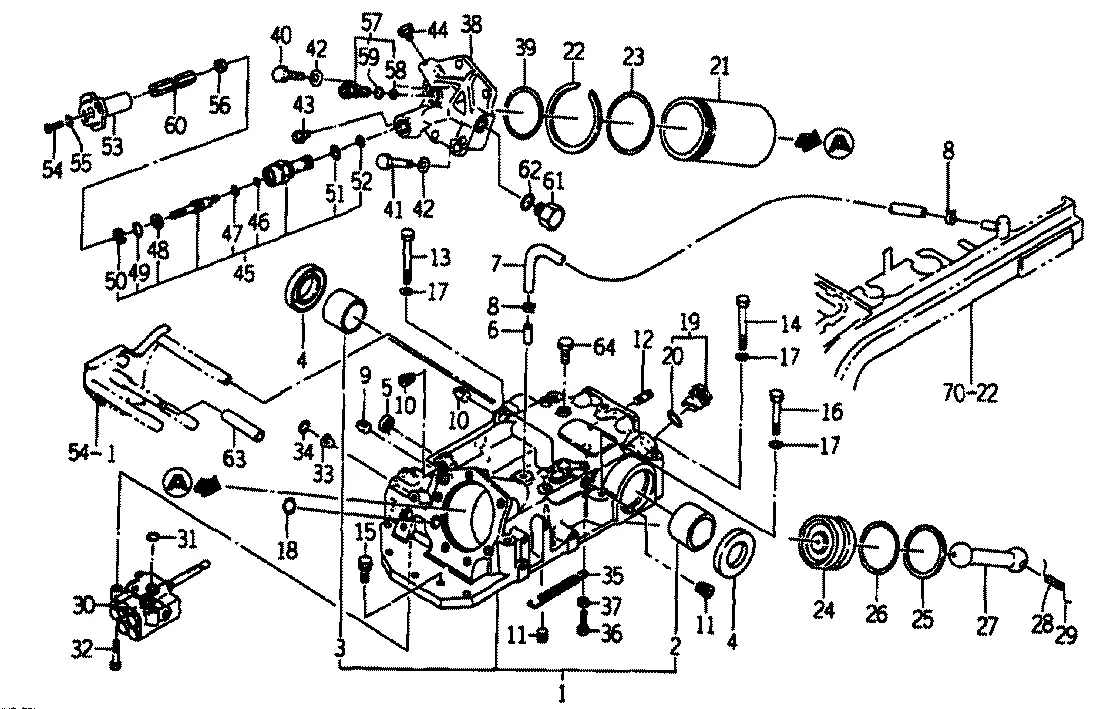

Heckhydraulik
Ersatzteile (63 Teile)
1
1646-501-200-00
2
BUSH/60X65X50
3
BUSH/55X60X50
4
SEAL,OIL/TC55729
5
SEAL,OIL/VC162404
6
PIPE,BREATHER
7
3664-310-005-10
8
J062-154-167-00
9
Stopfen
10
V781-160-000-60
11
V780-140-000-60
12
V251-341-002-8D
13
V201-361-009-0B
14
V201-361-009-00
15
V211-561-003-00
16
V201-361-007-0B
17
WASHER,SP/M10
18
O-RING/1B,P14
19
Deckel
20
Dichtung
21
1564-507-001-10
22
RING SNAP
23
O-RING/1B,G95
24
PISTON
25
RING
26
O-RING/1B,P75
27
ROD
28
V580-140-806-00
30
Ventil
31
O-RING/1B,P14
32
V211-260-804-00
33
FILTER/LINE/12X18X15
34
O-RING/1B,P20
35
SPRING,HE157
36
V201-260-803-00
37
NUT/M8
38
1564-507-008-00
39
O-RING/1B,G80
40
V201-361-203-50
41
V201-361-206-00
42
WASHER,SP/M12
43
PLUG/SCREW/SEAL
44
PLUG/SCREW/SEAL
45
K231-004-000-20
46
O-RING/1B,P10A
47
RING/BACK UP
48
Manschette 11x21x3
49
Sicherungsring
50
SEAL,DUST
51
O-RING/1B,P22
52
O-RING/1B,P16
53
KNOB
54
SCREW/M6X40
55
V401-160-006-00
56
NUT/M10
57
VALVE,RELIEF ASSY
58
O-RING/1B,P12
59
O-RING/1B,P18
60
1617-501-051-10
61
PLUG/M22
62
O-RING/1B,P20
63
Schlauch
64
Schraube M8X12
