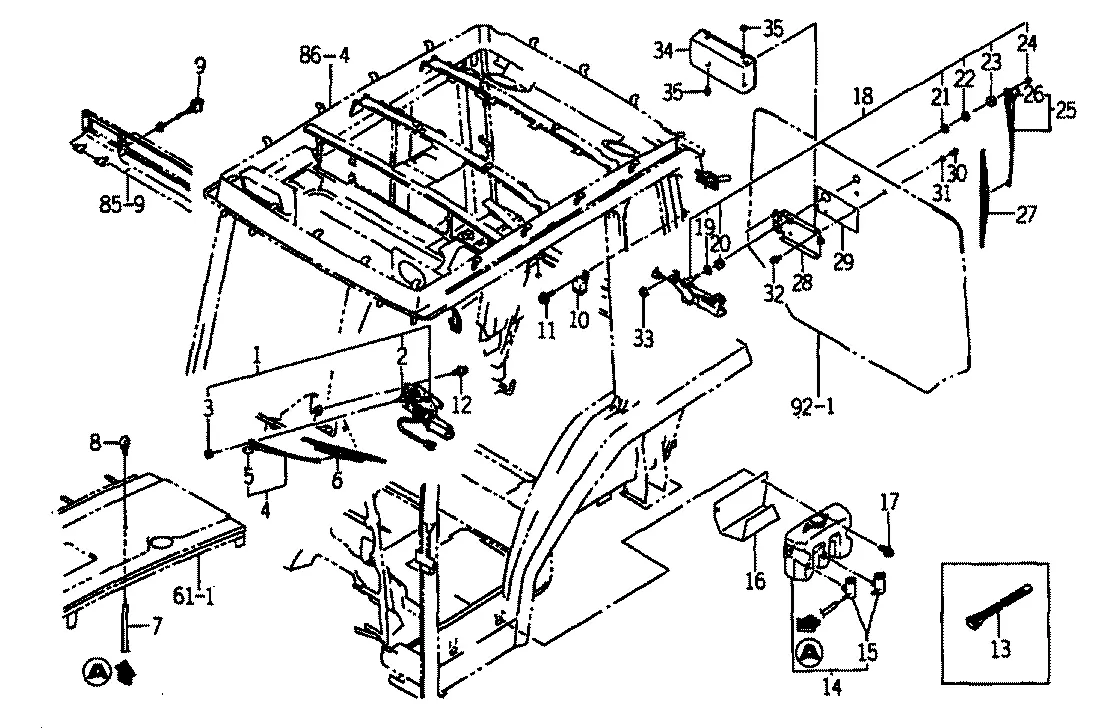

Elektrik-Kabine (Wischermotor ect.) SCYE4 Type
Ersatzteile (35 Teile)
1
Wischermotor
2
1673-666-512-00
3
V301-260-006-00
4
Arm Wiper 300 Assy
5
COVER/HEAD
6
BLADE/WIPER/400 ASSY
7
1704-666-055-00
8
Waschdüse
9
Switch Wiper Assy
10
Relais 5 Pol., ACA3213-1
11
SCREW,SP/M6X16
12
BOLT,SP/M6X16
13
BAND,WIRE/140
14
1692-658-200-00
15
Motor
16
1704-666-051-00
17
SCREW,SP/M6X20
18
1696-658-310-00
19
1696-658-311-00
20
1696-658-312-00
21
1696-658-313-00
22
1696-658-314-00
23
1696-658-315-00
24
V301-260-006-00
25
Wischerarm
26
COVER/HEAD
27
BLADE/WIPER/400 ASSY
28
Halter, Wischermotor
29
1696-658-002-00
30
Mutter
31
Gummi
32
V120-365-001-20
33
Kombimutter-M8
34
Abdeckung
35
RIVET
