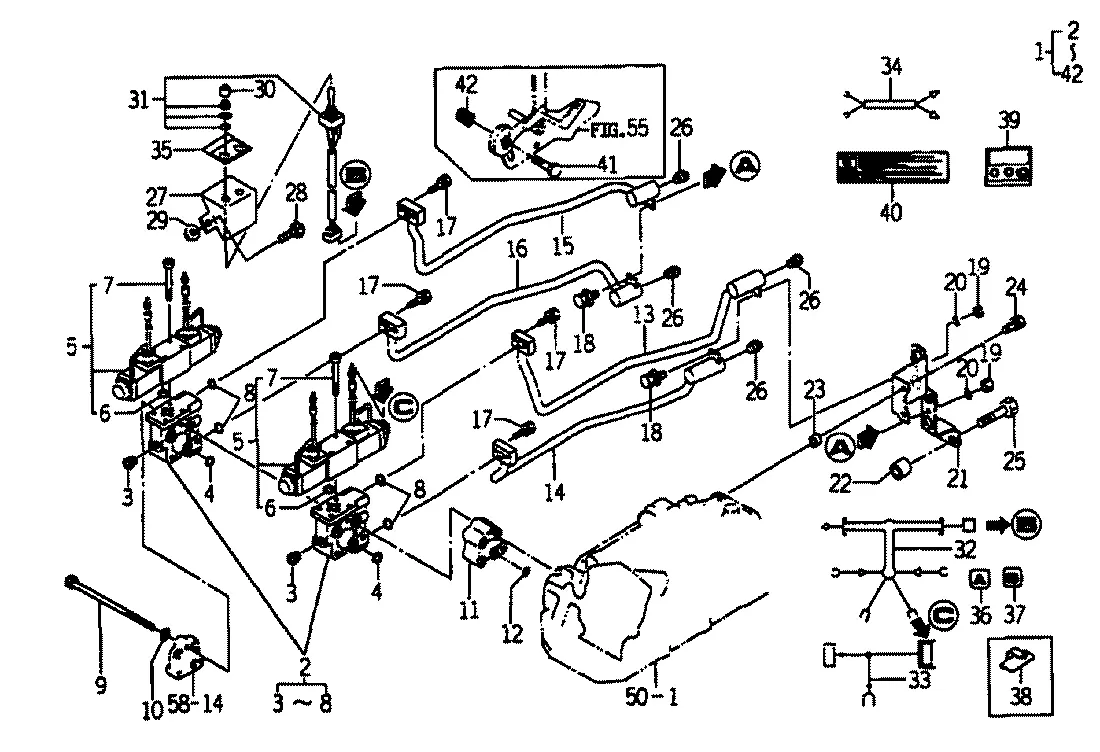

Steuerventil-Heckhydraulik ( Option)
Ersatzteile (42 Teile)
1
1704-530-920-00
2
K200-009-000-00
3
PLUG/SCREW/SEAL
4
O-RING/1B,P14
5
K200-009-100-00
6
K200-009-002-00
7
V220-540-505-00
8
O-RING/1B,P12
9
1121-311-001-00
10
WASHER,SP/M10
11
1564-530-001-00
12
O-RING/1B,P14
13
1564-530-390-00
14
1564-530-400-00
15
1564-530-410-00
16
1564-530-420-00
17
BOLT,S/M8X25
18
BOLT,SP/M8X16
19
NUT/M8
20
WASHER,SP/M8
21
1564-530-230-10
22
1564-530-004-00
23
1564-502-001-00
24
BOLT(S) M10X30
25
V201-361-605-00
26
V781-160-000-6T
27
Halter
28
SCREW,SP/M6X12
29
NUT/WASHER/M6
30
Kappe
31
Schalter
32
1560-530-200-10
33
1560-530-220-00
34
1704-530-921-00
35
1560-530-002-00
36
1518-903-006-00
37
1518-903-007-00
38
1426-621-038-00
39
1564-905-002-20
40
1668-904-001-10
41
V201-261-004-00
42
SPRING/HC014
