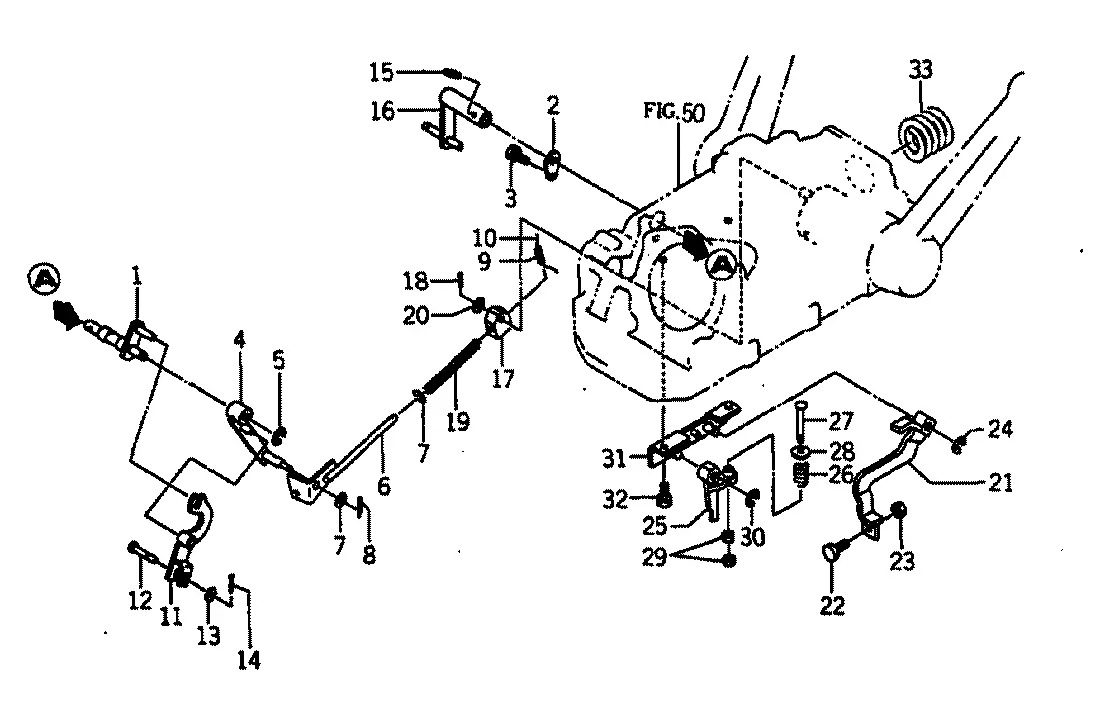

Gestänge-Heckhydraulik
Ersatzteile (32 Teile)
1
ARM COMP
2
STOPPER
3
V211-260-801-60
4
ARM COMP
5
RING,SNAP/8 E
6
1564-509-210-30
7
WASHER,PL/M8
8
PIN,SPLIT/2X20
9
PIN,SPRING/3X16 W
11
ARM
12
PIN
13
V411-260-006-00
14
PIN,SPLIT/2X20
15
PIN,SPRING/4X20 W
16
Schaltarm
17
LINK
18
PIN,SPLIT/2X20
19
SPRING
20
WASHER,PL/M8
21
Arm
22
1673-509-001-00
23
NUT/M8
24
RING,SNAP/8 E
25
Arm
26
Feder HC28
27
AnschlagSchraube
28
Scheibe
29
V301-260-006-00
30
RING,SNAP/8 E
31
1560-509-320-10
32
V211-260-801-60
33
1568-210-001-20
