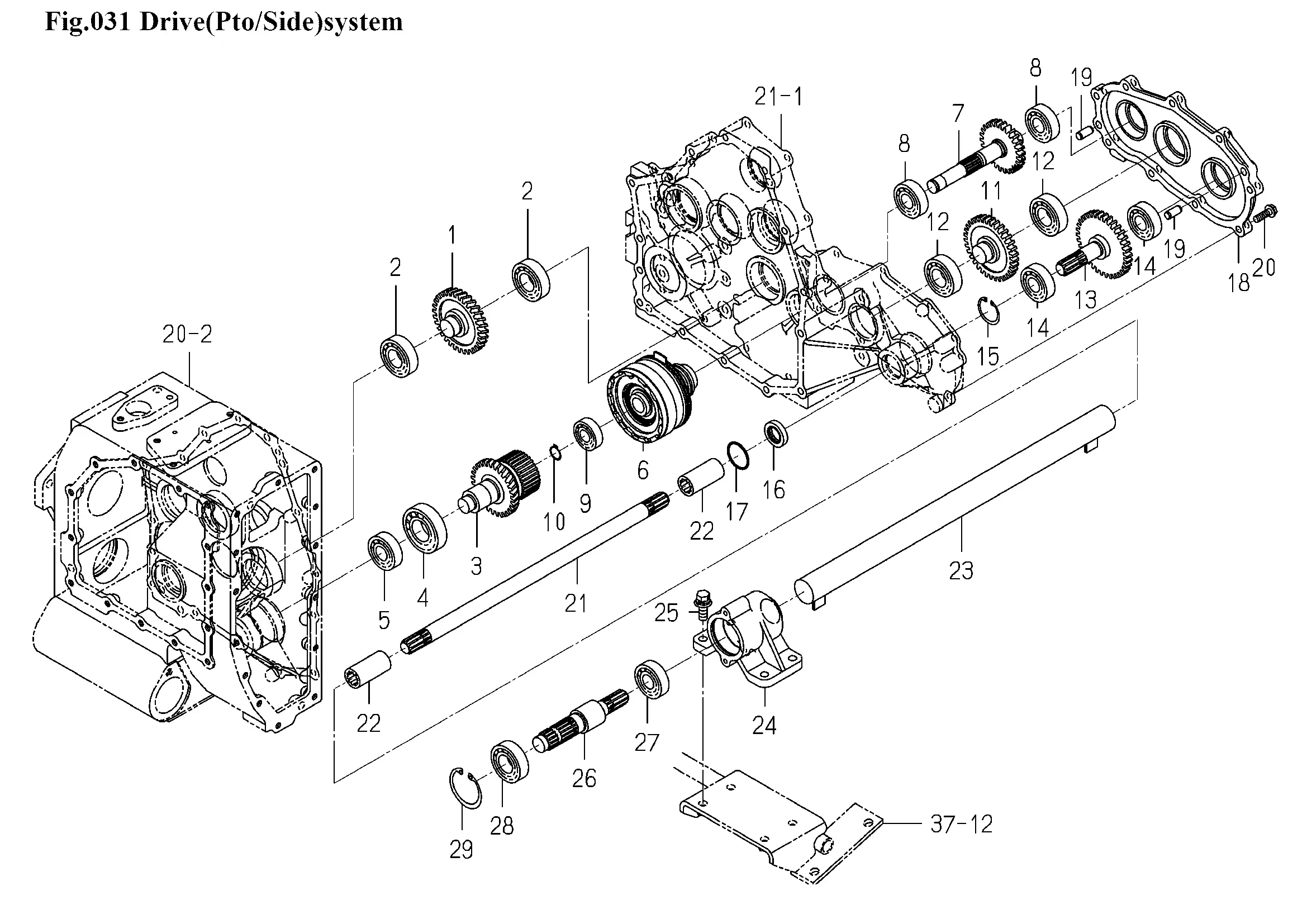

Antrieb PTO
Ersatzteile (29 Teile)
1
GEAR/HELICAL/31
2
BEARING,RB/6205
3
GEAR/HELICAL/28
4
BEARING,RB/6206
5
V600-110-620-40
6
CLUTCH/PTO ASSY
7
1832-244-200-00
8
V600-110-620-40
9
BEARING,RB/6203
10
RING,SNAP/17 C
11
1832-244-002-00
12
BEARING,RB/6205
13
GEAR/SPUR/34
14
V600-110-620-40
15
RING,SNAP/34 C
16
SEAL/OIL
17
O-RING/1A,S34
18
METAL/PTO/MOWER
19
PIN,ST,B/10X22
20
FLANGEBOLT/M8X25
21
SHAFT/465
22
COUPRING/16X27X55
23
1832-244-230-10
24
1771-244-011-10
25
BOLT,SP/M10X30/7T
26
SHAFT/PTO
27
BEARING/BALL
28
BEARING/BALL/HPS
29
RING,SNAP/52 C
