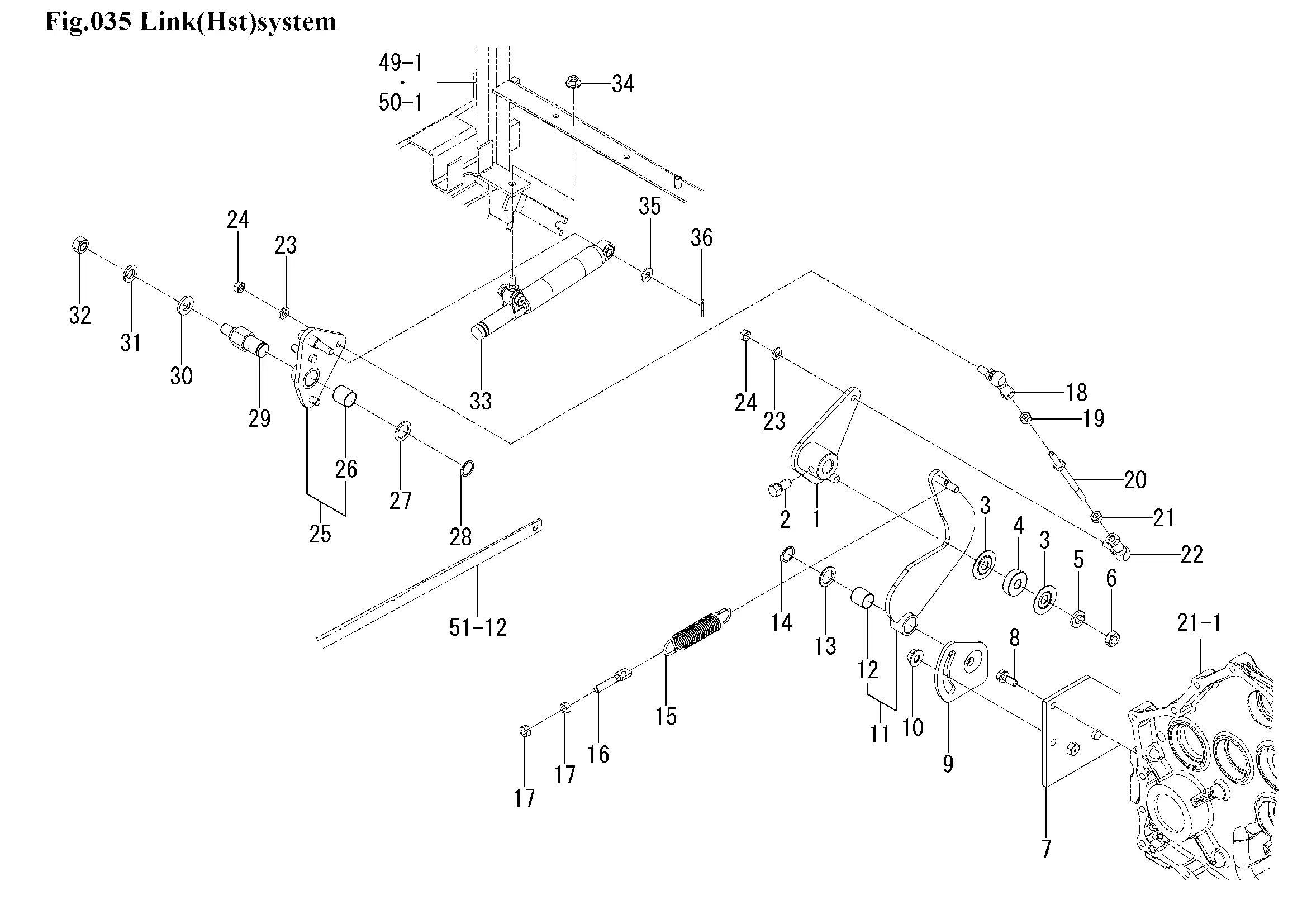

Anbauteile, Hydrostatgetriebe
Ersatzteile (36 Teile)
1
1832-271-210-00
2
BOLT/SM/M10X23
3
WASHER/38X12X2
4
V600-150-620-10
5
WASHER,SP/M12
6
V305-260-012-00
7
1832-271-240-10
8
V211-660-802-00
9
1832-271-230-00
10
NUT/WASHER/M10
11
1832-271-260-00
12
2504-135-008-10
13
WASHER/18X26X02
14
RING,SNAP/18 C
15
SPRING/HE108
16
ROD/M08X47
17
NUT/M8
18
1560-695-021-00
19
NUT/M8
20
ROD/M08X110 COMP
21
NUT/LH/M08
22
1560-695-022-00
23
WASHER,SP/M8
24
NUT/M8
25
ARM/HST ASSY
26
2504-135-008-10
27
WASHER/18X26X02
28
RING,SNAP/18 C
29
PIN/COUNTER/HST
30
WASHER,SUPPORT
31
WASHER,SP/M12
32
V304-460-012-00
33
DAMPER/OIL ASSY
34
Kombimutter-M8
35
WASHER,PL/M8
36
PIN,SPLIT/2.5X20
