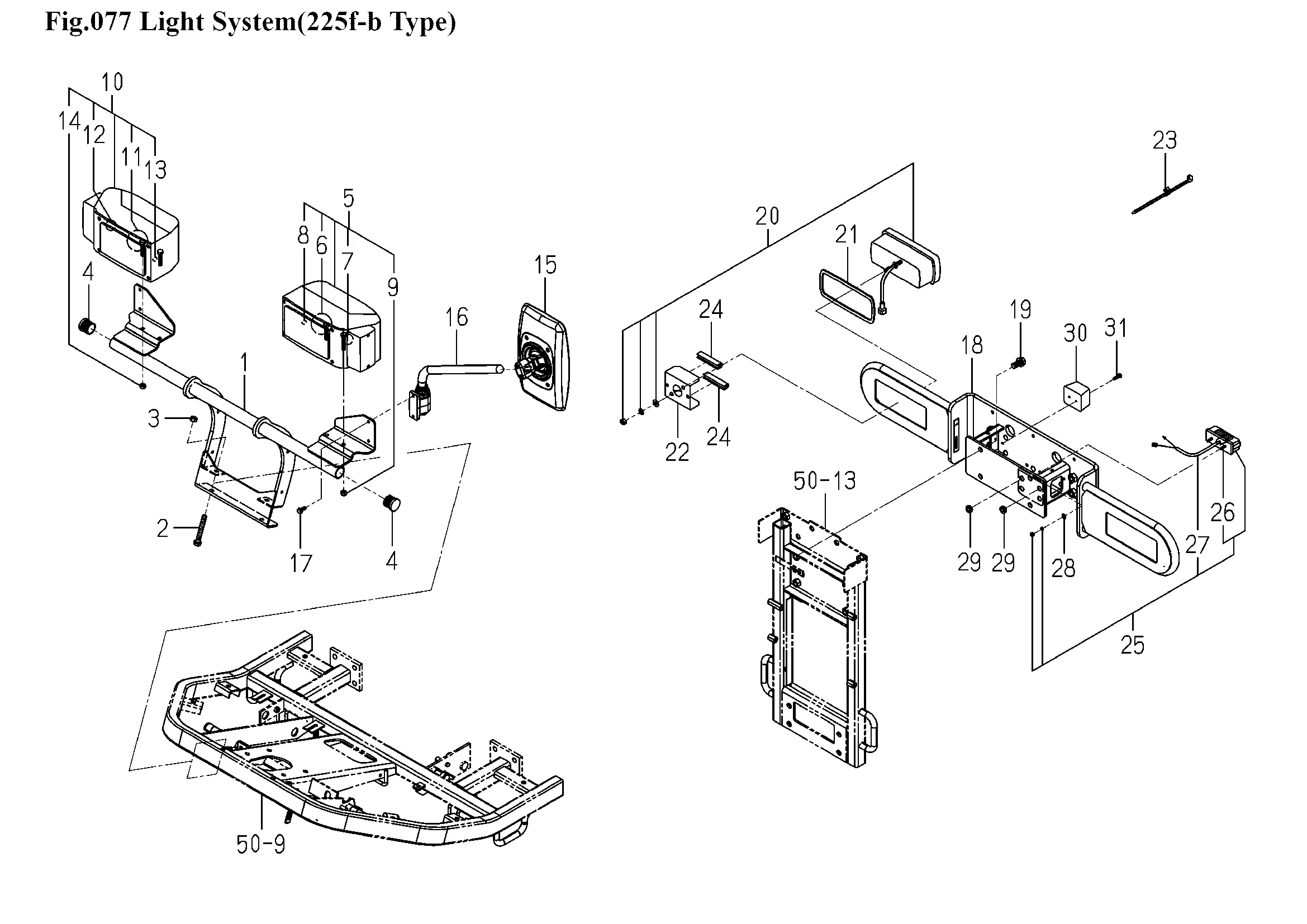

Scheinwerfer, Spiegel
Ersatzteile (31 Teile)
1
STAY/LAMP/FRONT COMP
2
FLANGEBOLT/M10X70
3
U-NUT/M10X1.5
4
CAP/PIPE
5
LAMP/HEAD/LH ASSY
6
1774-650-212-00
7
1772-654-216-00
8
1809-650-232-00
9
1809-650-233-00
10
LAMP/HEAD/RH ASSY
11
1774-650-212-00
12
1772-654-216-00
13
1809-650-232-00
14
1809-650-233-00
15
MIRROR ASSY
16
ARM/MIRROR ASSY
17
FLANGEBOLT/M6X16
18
1832-650-660-10
19
6901-931-225-00
20
LAMP/COMBINATION/REA
21
INSULATOR/LAMP
22
PLATE/U/70X85
23
1560-666-004-00
24
TRIM/70
25
LAMP/NUMBERPLAT SET
26
1674-654-271-00
27
HARNESS/LAMP
28
V411-260-006-00
29
GROMMET/9
30
STOPPER/B
31
V111-176-002-50
