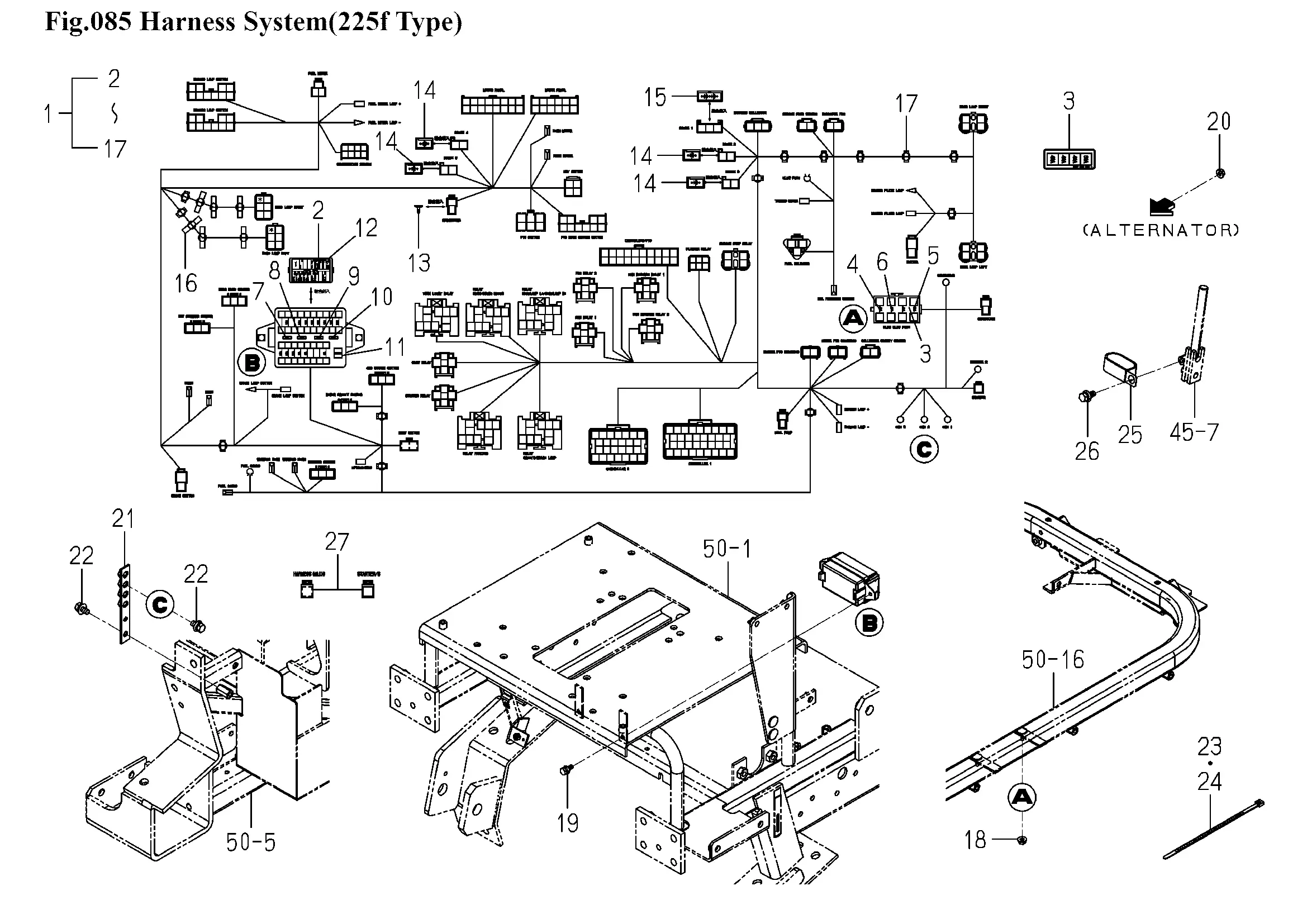

Kabelbaum
Ersatzteile (28 Teile)
1
1832-690-800-20
2
1832-690-802-10
3
1832-690-803-00
4
FUSE/SLOWBLOW/40A
5
FUSE/SLOW BLOW/60A
6
FUSE/SLOW BLOW/40A
7
FUSE/BLADE/32V05A
8
FUSE/BLADE/32V10A
9
FUSE/BLADE/32V15A
10
FUSE/BLADE/32V20A
11
TOOL/FUSE
12
COVER/FUSE
13
RESISTER/8
14
DIODE/3.0A
15
DIODE/1.5A-3P ASSY
16
1725-690-071-00
17
1809-690-205-00
18
NUT/WASHER/M6
19
V210-360-602-00
20
NUT/WASHER/M6
21
1832-410-290-00
22
BOLT,SP/M8X16
23
1342-402-006-00
24
BAND,WIRE/140
25
CLAMP/28X55
26
BOLT,SP/M8X20
27
HARNESS/JOINT ASSY
ob
COVER/FUSE
