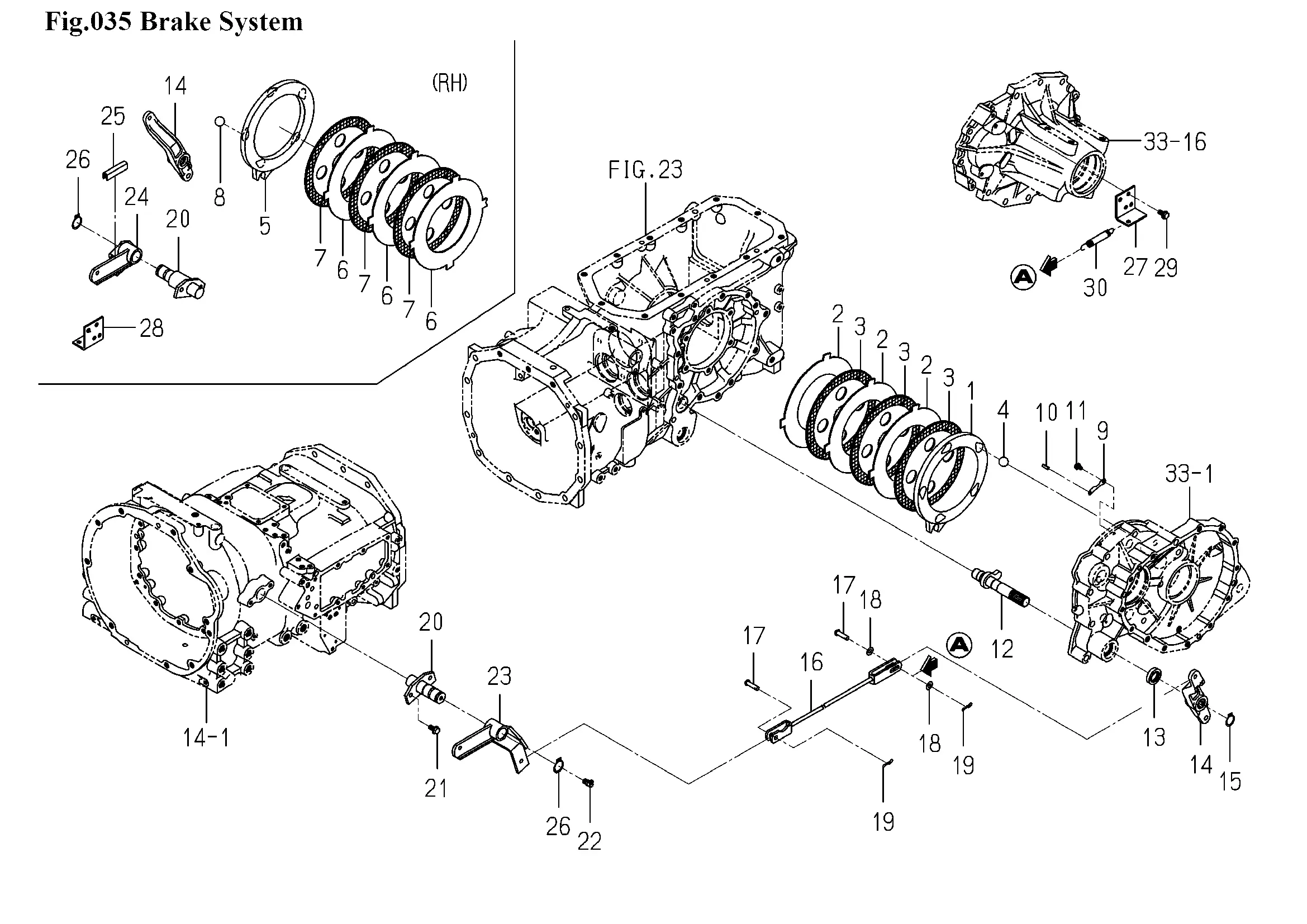

Bremse
Ersatzteile (30 Teile)
1
PLATE/PRESSURE/LH
2
PLATE/SEPARATER
3
PLATE/FRICTION
4
STEELBALL
5
PLATE/PRESSURE/RH
6
PLATE/SEPARATER
7
PLATE/FRICTION
8
STEELBALL
9
PLATE
10
PIN,SPRING/5X16 W
11
FLANGEBOLT/M6X10
12
1792-310-230-00
13
SEAL,OIL/TC22358
14
ARM/BRAKE
15
RING,SNAP/22 C
16
ROD/FORK COMP
17
PIN,YOKE A
18
WASHER,PL/M8
19
PIN/SNAP/B
20
1792-310-320-00
21
FLANGEBOLT/M8X16
22
NIPPLE,GREASE/PT1/8
23
ARM/BRAKE/LH COMP
24
ARM/BRAKE/RH COMP
25
1650-720-014-00
26
RING,SNAP/25 C
27
1729-310-001-00
28
1729-310-002-00
29
FLANGEBOLT/M8X16
30
SPRING/HE095
