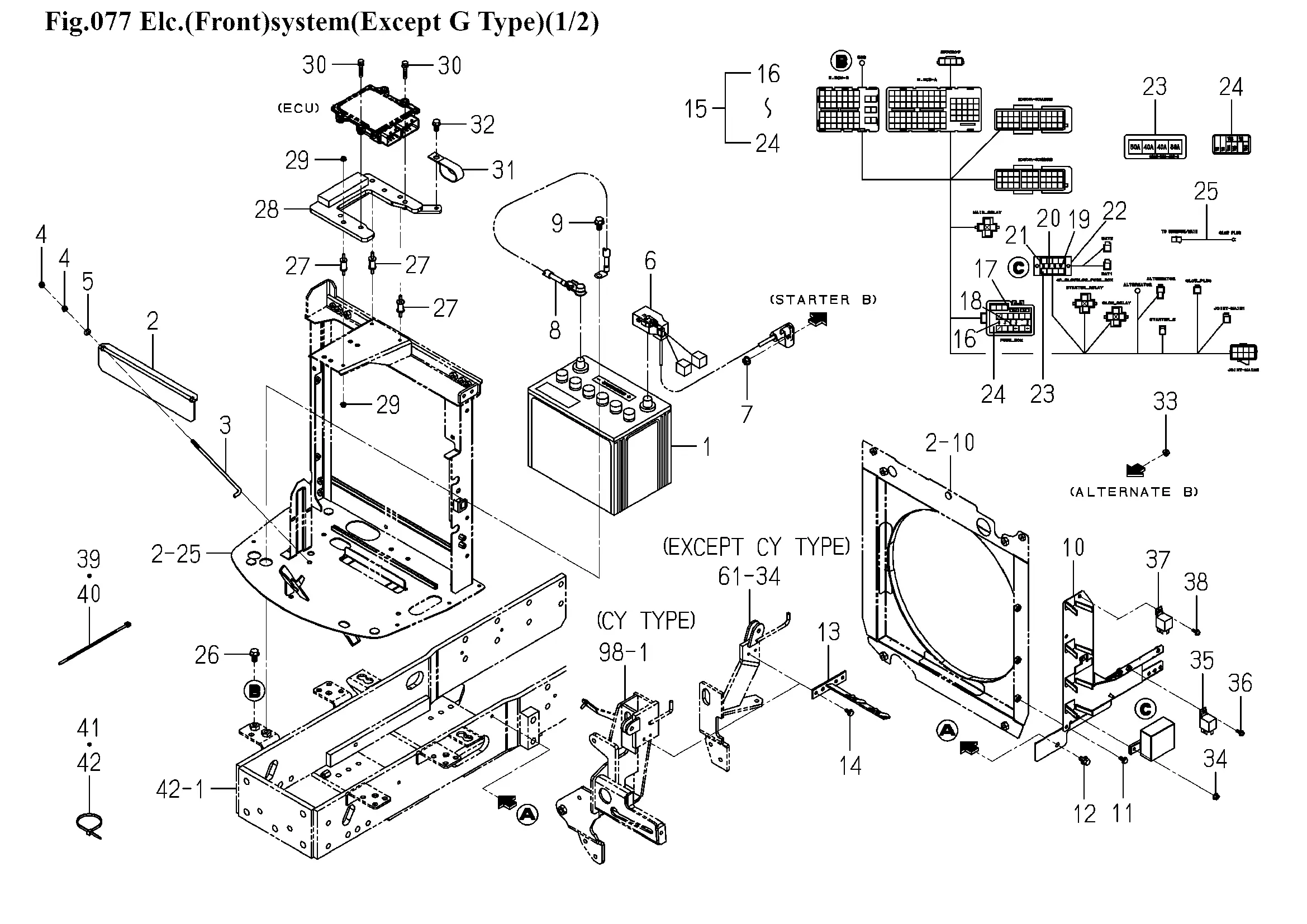

Batterie, Scheinwerfer
Ersatzteile (58 Teile)
1
BATTERY/80D26R ASSY
2
1801-650-021-00
3
BOLT/M6X250
4
1746-811-001-00
5
V411-260-006-00
6
1815-650-610-00
7
Kombimutter-M8
8
1792-650-290-10
9
1815-804-001-00
10
1815-650-630-20
11
FLANGEBOLT/M6X12
12
BOLT,SP/M8X16
13
1848-654-310-10
14
FLANGEBOLT/M6X12
15
1815-650-620-10
16
FUSE/BLADE/32V05A
17
FUSE/BLADE/32V15A
18
FUSE/BLADE/32V30A
19
FUSE/SLOW BLOW/50A
20
FUSE/SLOW BLOW/60A
21
FUSE/SLOWBLOW/80A
22
COVER/FUSE
23
1816-650-402-00
24
1816-650-403-00
25
HARNESS,GLOW
26
1815-804-001-00
27
INSULATOR/ECU
28
1848-650-260-00
29
1848-815-001-00
30
1848-802-001-00
31
CLAMP,RADIATOR HOSE
32
1746-804-003-00
33
NUT/WASHER/M6
34
NUT/WASHER/M6
35
RELAY/35A ASSY
36
V120-365-001-60
37
RELAY/35A ASSY
38
V120-365-001-60
39
BAND,WIRE/140
40
1342-402-006-00
41
1593-623-003-00
42
1560-666-004-00
43
1817-650-450-00
44
V231-360-801-20
45
1815-650-210-10
46
BULB/12V60/55W
47
1815-650-220-10
48
BULB/12V60/55W
49
BOLT/SP
50
HARNESS/FOOD ASSY
51
1560-666-004-00
52
BAND,WIRE/140
53
1650-652-014-00
54
1342-402-006-00
55
1740-680-530-20
56
WASHER/6X14X3
57
1118-606-002-10
58
V411-260-006-00
