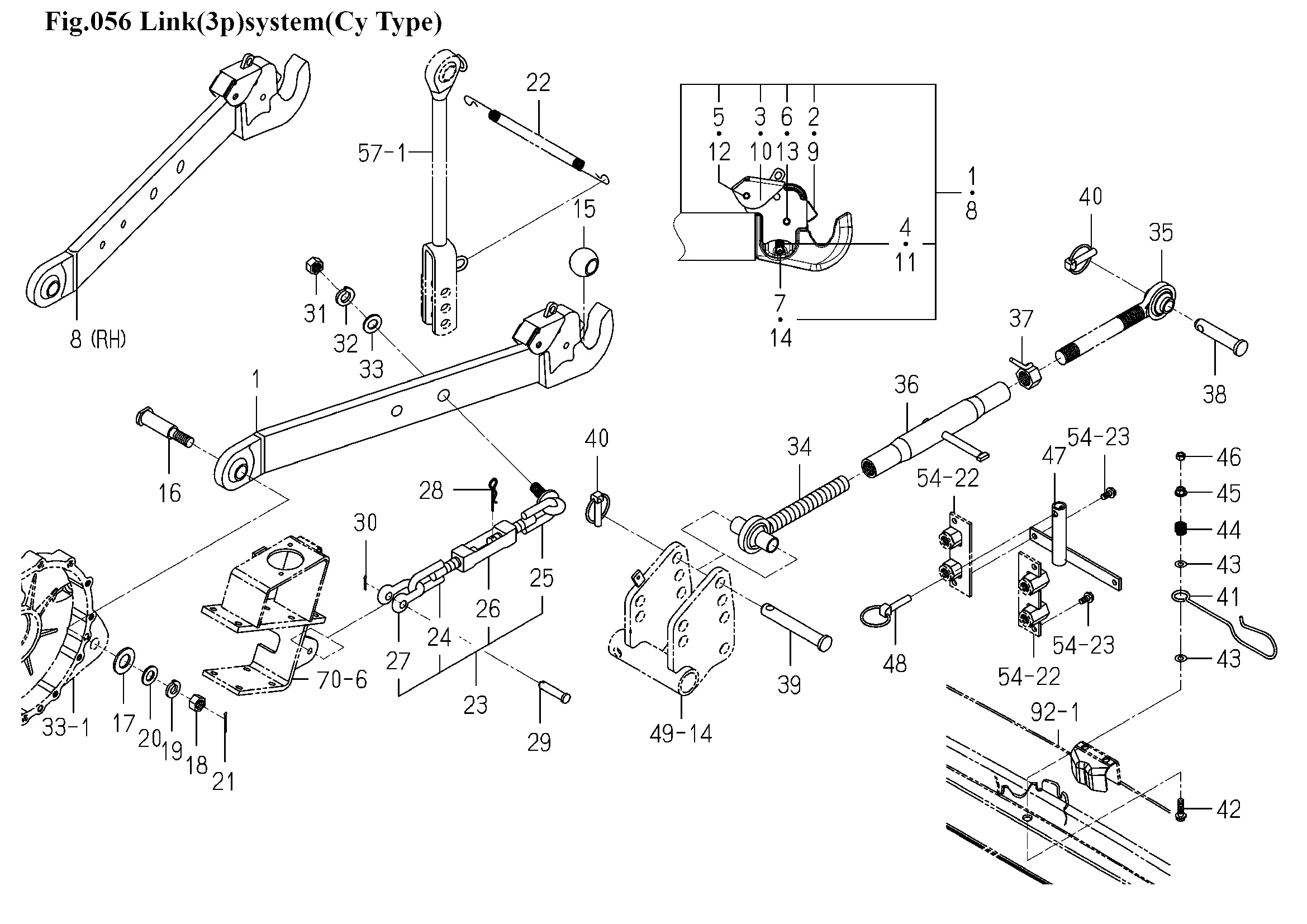

Heck 3 Punkt Aushebung
Ersatzteile (48 Teile)
1
LINK/LOWER/LH COMP
2
ARM/HOOK
3
LINK/HOOK
4
SPRING
5
PIN/SPRING
6
PIN/SPRING
7
PIN/SPRING
8
LINK/LOWER/RH COMP
9
ARM/HOOK
10
LINK/HOOK
11
SPRING
12
PIN/SPRING
13
PIN/SPRING
14
PIN/SPRING
15
BALL (NML). siehe 305051
16
PIN/22X99
17
WASHER,PL/M22
18
NUT/M16/7T
19
WASHER,SP/M16
20
V411-260-016-00
21
V500-164-003-00
22
SPRING
23
CHAIN/CHECK/S ASSY
24
CHAIN/CHECK/FRONT
25
CHAIN/CHECK/REA COMP
26
BUCKLE/TURN/M16
27
SHACKLE
28
PIN,HAIR
29
PIN/12X48
30
V500-163-002-00
31
NUT/M16/7T
32
WASHER,SP/M16
33
V411-260-016-00
34
1560-525-290-20
35
1568-525-300-40
36
TURNBUCLE COMP
37
1402-511-600-02
38
PIN/19X94
39
PIN 19X132
40
LINKPIN
41
HOOK/TOPLINK
42
V231-360-803-00
43
WASHER,PL/M8
44
SPRING/HC014
45
V363-260-008-00
46
NUT/M8
47
1815-514-320-00
48
LINKPIN
