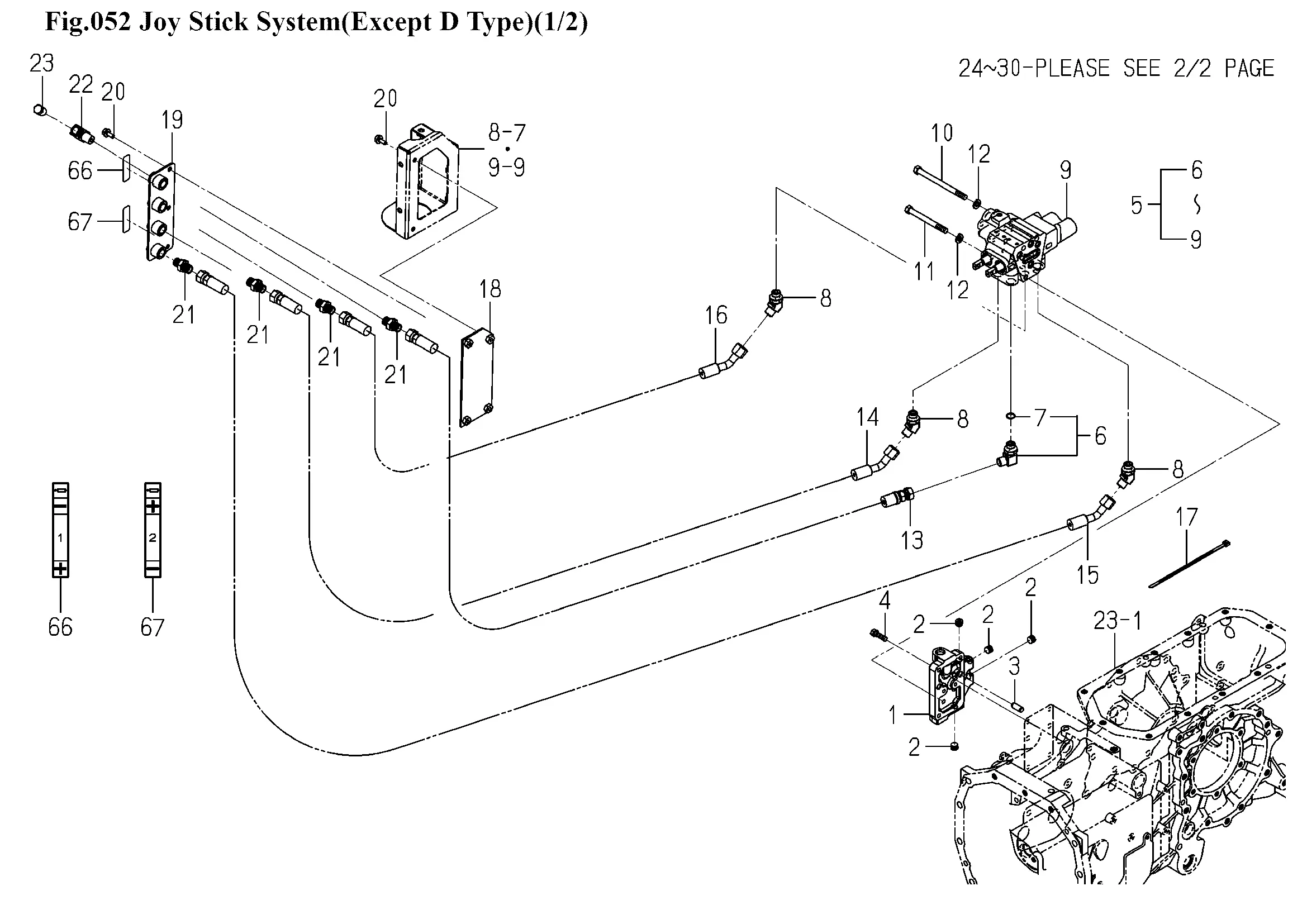

Kreutzhebel, Joy Stick
Ersatzteile (67 Teile)
1
1815-511-005-10
2
PLUG/SCREW/SEAL
3
PIN,ST,B/10X24
4
V211-560-803-00
5
1815-511-700-10
6
ADAPTER/L/G3/8 ASSY
7
O-RING/1B,P14
8
ADAPTER (G3/8B-G3/8B
9
K211-121-000-00
10
V201-261-010-00
11
V201-261-013-00
12
WASHER,SP/M10
13
1802-509-230-10
14
1815-511-590-00
15
1815-511-360-10
16
1815-511-360-10
17
1342-402-006-00
18
1801-511-730-00
19
1816-511-410-00
20
FLANGEBOLT/M8X16
21
ADAPTER/R/G3/8
22
1817-511-007-00
23
PLUG/SCREW/SEAL
24
1815-511-550-00
25
BUSH/10X12X20
26
FLANGEBOLT/M6X12
27
1815-511-570-10
28
1815-511-580-10
29
PIN/06X25
30
PIN/SNAP
31
V411-260-006-00
32
BRACKET/LOCK COMP
33
BOLT,SP/M8X20
34
ARM/LOCK ASSY
35
BUSH/10X12X20
36
RING,SNAP/9 E
37
1815-511-021-00
38
1817-511-310-00
39
1742-511-791-00
40
1742-511-792-00
41
1742-511-793-00
42
1742-511-794-00
43
KNOB
44
V411-260-005-00
45
PIN,SPLIT/1.6X15
46
CABLE/BOOM ASSY
47
CABLE/BUCKET ASSY
48
JOINT/BALL/M06
49
JOINT/BALL/M06/L
50
BUCKLE/TURN/M06
51
V301-260-006-00
52
NUT/FLANGE/M06
53
HOLDER/JOY COMP
54
FLANGEBOLT/M8X16
55
ARM/JOY
56
SPRING
57
WASHER/27X32X01
58
RING,SNAP/32 C
59
BOLT/LOCK
60
WASHER/8X12X2
61
BOOT,CHANGE LEVER
62
LEVER/JOY COMP
63
BOLT/M8X16
64
GRIP
65
BOOT/JOY
66
1817-512-002-10
67
LABEL/PORT/2ND/E4/+
