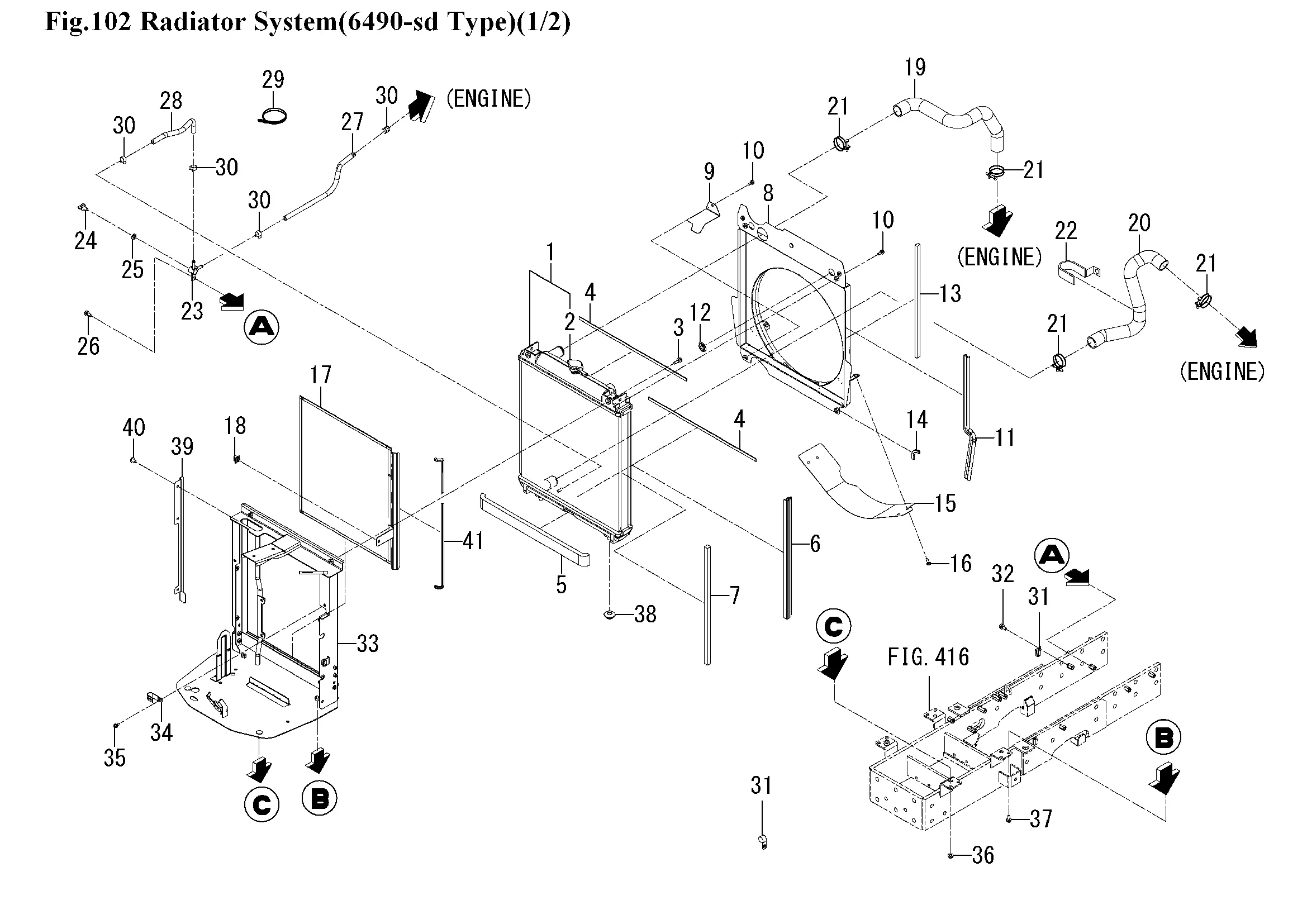

Kühler
Ersatzteile (68 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR
5
INSULATOR/40X480
6
INSULATOR/475
7
INSULATOR/15X15X470
8
1816-102-220-00
9
1796-102-005-00
10
1746-804-002-00
11
TRIM/510
12
3670-272-001-00
13
INSULATOR
14
INSULATOR/30
15
PLATE
16
1746-804-002-00
17
Kühlernetz
18
LATCH ASSY
19
HOSE/RADIATOR/INLET
20
HOSE/RADIATOR/OUTLET
21
CLAMP/WIRE/36-44
22
CLAMP
23
CONNECTOR
24
1424-101-203-00
25
PACKING
26
1746-804-003-00
27
Schlauch, 320
28
Schlauch, 8x13x580
29
1342-402-006-00
30
CLIP/HOSE/14.7-15.9
31
1675-508-003-00
32
FLANGEBOLT/M8X16
33
1816-102-230-10
34
HOLDER/JE/9-9
35
BOLT/SP
36
1746-816-001-00
37
1746-804-003-00
38
BUSH,LEVER
39
1816-102-005-10
40
CLIP(B)
41
PAD/520
42
1785-102-210-30
43
1746-817-001-00
44
WASHER,PL/M8
45
SPRING/HT020
46
1792-102-240-00
47
PIN/SNAP
48
1801-102-004-00
49
CAP/PARKING
50
RESERVETANK ASSY
51
CAP
52
PACKING
53
1690-102-214-00
54
1690-102-215-00
55
1690-102-216-00
56
HOSE/RUBBER
57
BAND,WIRE/140
58
1792-102-006-00
59
BOLT/SP
60
1816-102-003-00
61
INSULATOR/700
62
PROTECTOR/185
63
TRIM/90
64
1746-804-001-00
65
NUT/WASHER
66
1792-102-270-10
67
TUBE/07X09X30
68
BOLT/SP
