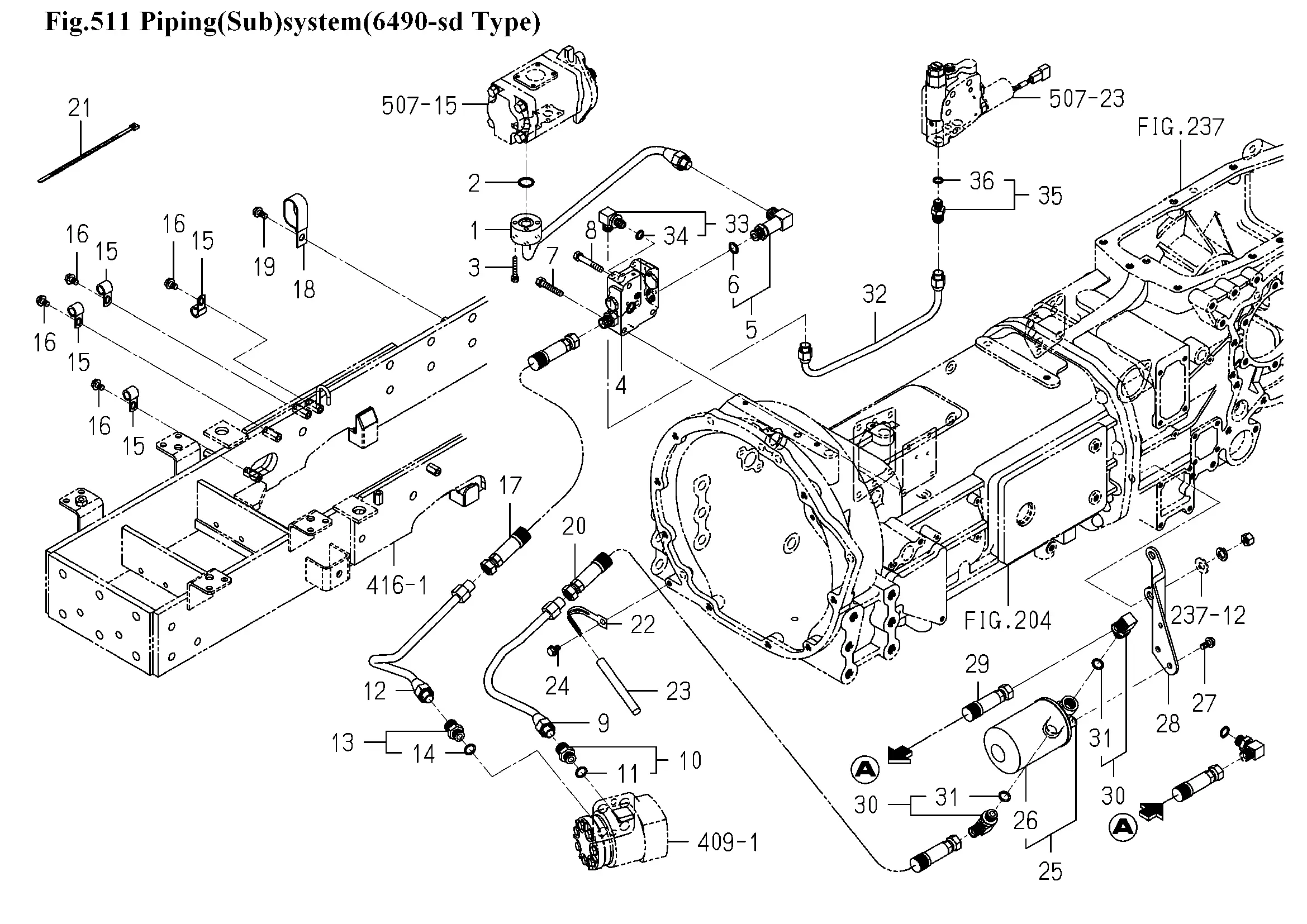

Hydraulikfilter
Ersatzteile (36 Teile)
1
1815-509-230-00
2
O-RING/1B,P20
3
BOLT,S/M6X40/7T
4
VALVE/REDUCE/00 ASSY
5
ADAPTER/L/PF3/8 ASSY
6
O-RING/1B,P14
7
V211-260-804-50
8
V211-260-805-00
9
PIPE/RETURN COMP
10
ADAPTER/PF3/8 ASSY
11
O-RING/1B,P14
12
PIPE/STEERING COMP
13
ADAPTER/PF3/8 ASSY
14
O-RING/1B,P14
15
HOLDER/12
16
V231-360-801-20
17
1802-509-230-00
18
CLAMP,RADIATOR HOSE
19
FLANGEBOLT/M8X16
20
1816-509-230-00
21
1342-402-006-00
22
CLAMP
23
TUBE/120
24
V231-360-801-20
25
FILTER/CHARGE/2 ASSY
26
CARTRIDGE/20
27
FLANGEBOLT/M8X16
28
1815-509-002-10
29
Schlauch, 750
30
ADAPTER/L/G3/8 ASSY
31
O-RING/1B,P14
32
1815-509-220-00
33
ADAPTER/L/PF1/4 ASSY
34
O-RING/1B,P11
35
ADAPTOR/PF1/4 ASSY
36
O-RING/1B,P11
