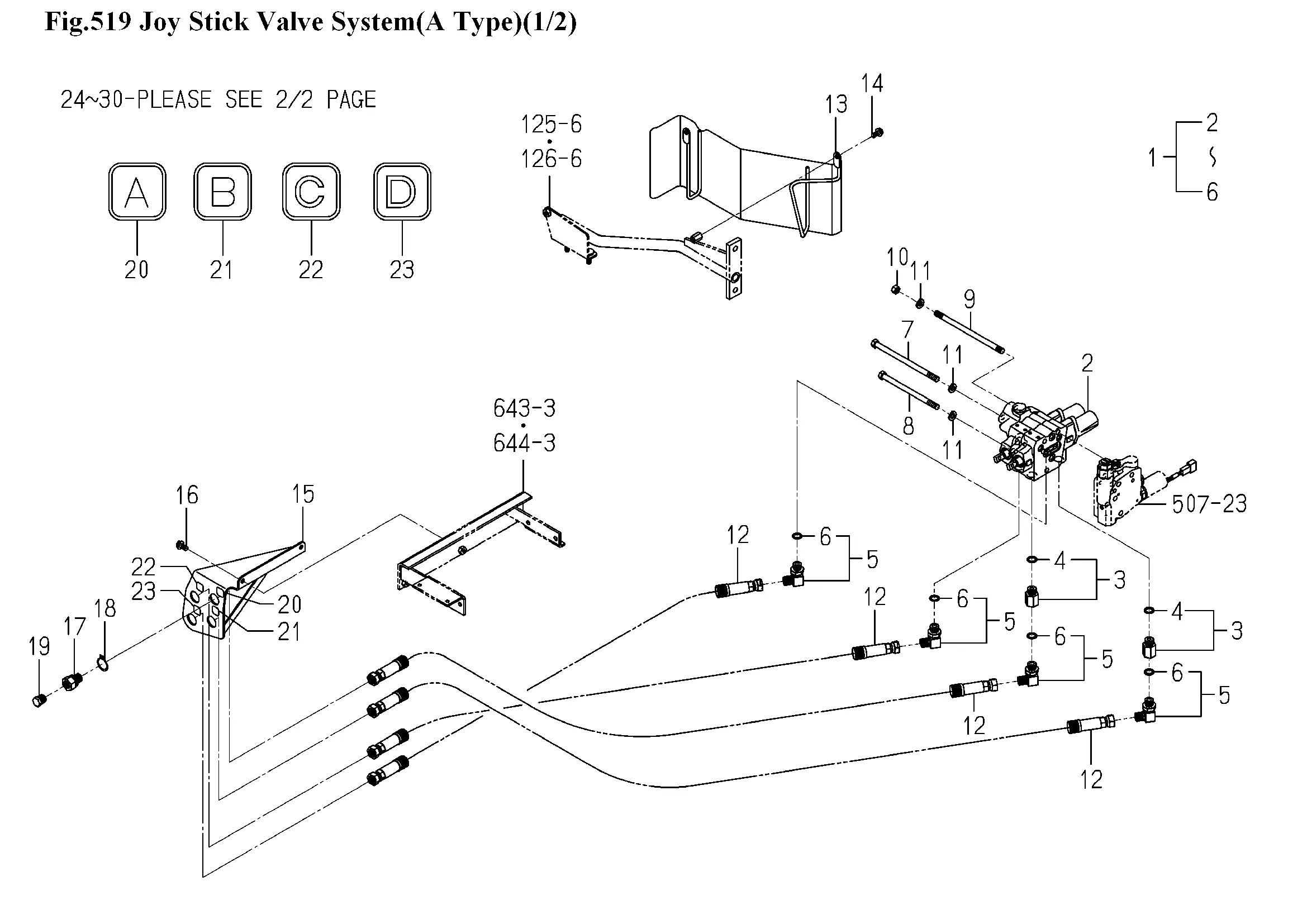

Kreutzhebel, Joy Stick
Ersatzteile (65 Teile)
1
1815-511-400-00
2
Steuerventil kpl.
3
ADAPTER/G3/8 ASSY
4
O-RING/1B,P14
5
ADAPTER/L/G3/8 ASSY
6
O-RING/1B,P14
7
V201-261-017-00
8
V201-261-015-00
9
1742-511-002-00
10
NUT/M10
11
WASHER,SP/M10
12
1801-509-250-00
13
1815-511-410-10
14
FLANGEBOLT/M8X16
15
1815-511-250-00
16
FLANGEBOLT/M8X16
17
1815-511-003-10
18
1792-511-004-00
19
PLUG/SCREW/SEAL
20
1518-903-006-00
21
1518-903-007-00
22
1723-902-007-00
23
1723-902-008-00
24
HOLDER/CABLE ASSY
25
BUSH/10X12X20
26
FLANGEBOLT/M6X12
27
Halter
28
ARM/BUCKET COMP
29
PIN/06X25
30
PIN/SNAP
31
V411-260-006-00
32
BRACKET/LOCK COMP
33
FLANGEBOLT/M8X16
34
ARM/LOCK ASSY
35
BUSH/10X12X20
36
RING,SNAP/9 E
37
SPRING/HE055
38
Bowdenzug, Arretierung, kpl.
39
1742-511-791-00
40
1742-511-792-00
41
1742-511-793-00
42
1742-511-794-00
43
KNOB
44
V411-260-005-00
45
PIN,SPLIT/1.6X15
46
CABLE/BOOM ASSY
47
CABLE/BUCKET ASSY
48
JOINT/BALL/M06
49
ROD/END
50
V301-260-006-00
51
NUT/FLANGE/M06
52
FLANGEBOLT/M6X20
53
HOLDER/JOY COMP
54
FLANGEBOLT/M8X16
55
1815-511-001-10
56
SPRING
57
WASHER/27X32X01
58
RING,SNAP/32 C
59
BOLT/LOCK
60
WASHER/8X12X2
61
BOOT,CHANGE LEVER
63
LEVER/JOY COMP
64
BOLT/SM/M08X20
65
GRIP
66
BOOT/JOY
