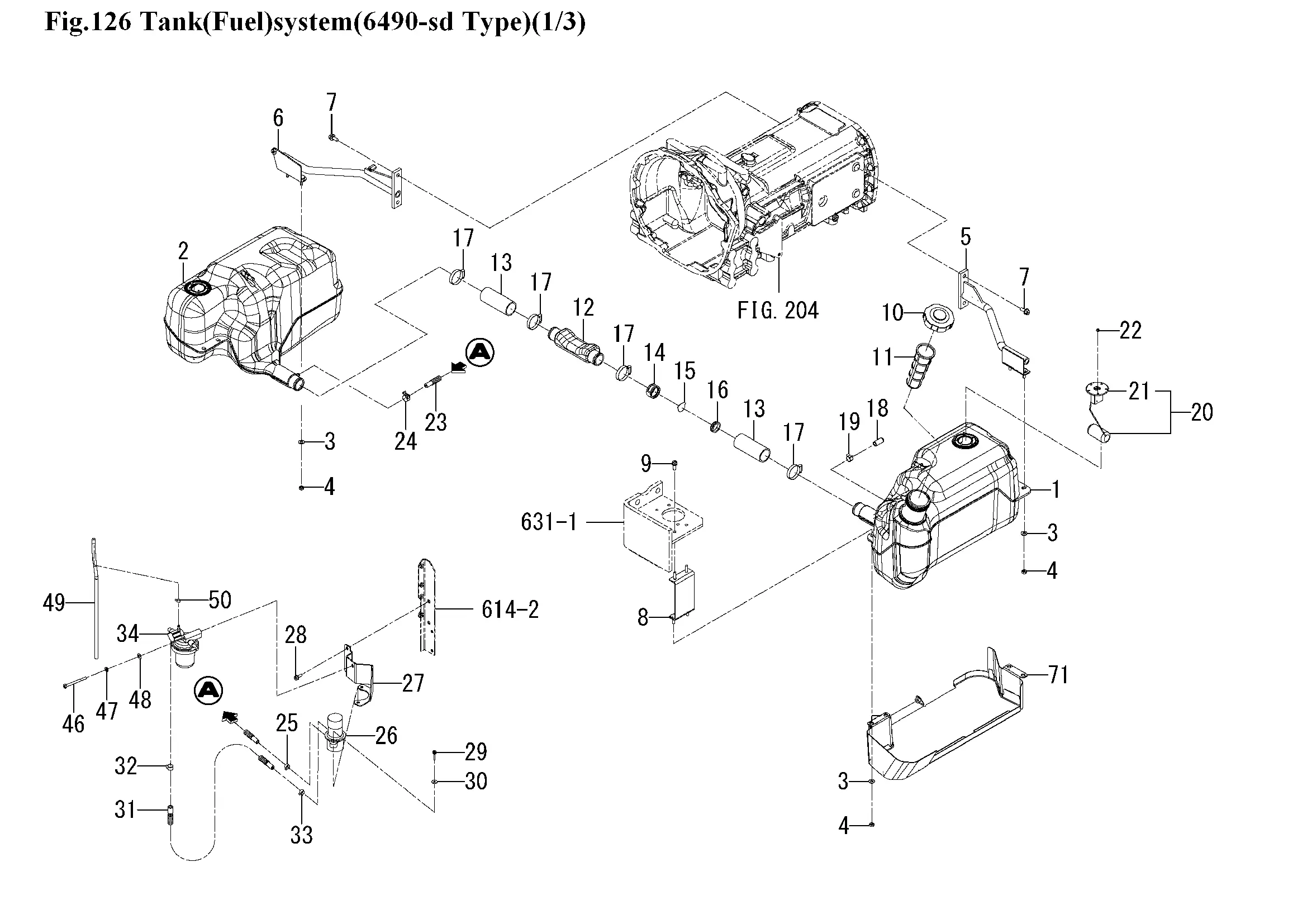

Tank
Ersatzteile (78 Teile)
1
TANK/FUEL/LH
2
TANK/FUEL/RH
3
WASHER,PL/M8
4
1719-312-001-00
5
1801-111-200-00
6
1815-111-210-00
7
BOLT,S/M10X25/7T
8
STAY/TANK/L COMP
9
Kombimutter-M8
10
CAP/FUEL ASSY
11
FILTER/FUEL
12
PIPE/FUEL/UNDER
13
Kraftstoffschlauch
14
Leitung, Ventil
15
PLATE/VALVE
16
Dichtung
17
1696-508-002-00
18
1518-111-006-00
19
CLIP/HOSE/14.7-15.9
20
GAUGE/FUEL ASSY
20
Tankgeber
21
PACKING/RUBBER
22
V360-260-004-00
23
1792-111-250-00
24
J062-138-148-00
25
CLIP/HOSE/11.9-12.6
26
Kraftstoffpumpe
27
1792-111-220-00
28
V231-360-802-00
29
BOLT,SP/M6X30
30
3560-503-302-00
31
1792-111-260-00
32
CLIP/HOSE/14.7-15.9
33
CLIP/HOSE/11.9-12.6
34
Kraftstofffilter, kpl.
35
Hebel, Kraftstoffhahn
36
SEAL
37
1560-102-204-40
38
O-RING/1A,P21
39
1560-102-205-40
40
NUT,RING
41
O-RING/1A,G65
42
Kraftstofffilter
43
SPRING
44
O-RING/1A,P16
45
1513-102-332-00
46
BOLT/M8X80
47
WASHER,SP/M8
48
WASHER,PL/M8
49
PIPE
50
CLIP/HOSE/8.7-9.3
51
Kraftstoffschlauch, 250
52
CLIP/HOSE/12.6-13.4
53
HOSE/FUEL/900 ASSY
54
J062-076-082-00
55
1792-111-015-10
56
HOSE/FUEL/300
57
J062-138-148-00
58
1342-402-006-00
59
CLAMP
60
TUBE/120
61
HOSE/FUEL/70
62
HOSE/FUEL/900 ASSY
63
CLIP/HOSE/14.7-15.9
64
J062-154-167-00
65
Kraftstoffschlauch, 350
66
JOINT/T
67
J062-138-148-00
68
HOLDER/JE/9-9
69
1675-407-003-00
70
FLANGEBOLT/M6X10
71
1816-111-300-00
72
COVER/TANK/E4 COMP
73
1801-111-012-10
74
CUSHION,RUBBER
75
V231-360-801-20
76
Kombimutter-M8
77
PLATE,RUBBER
