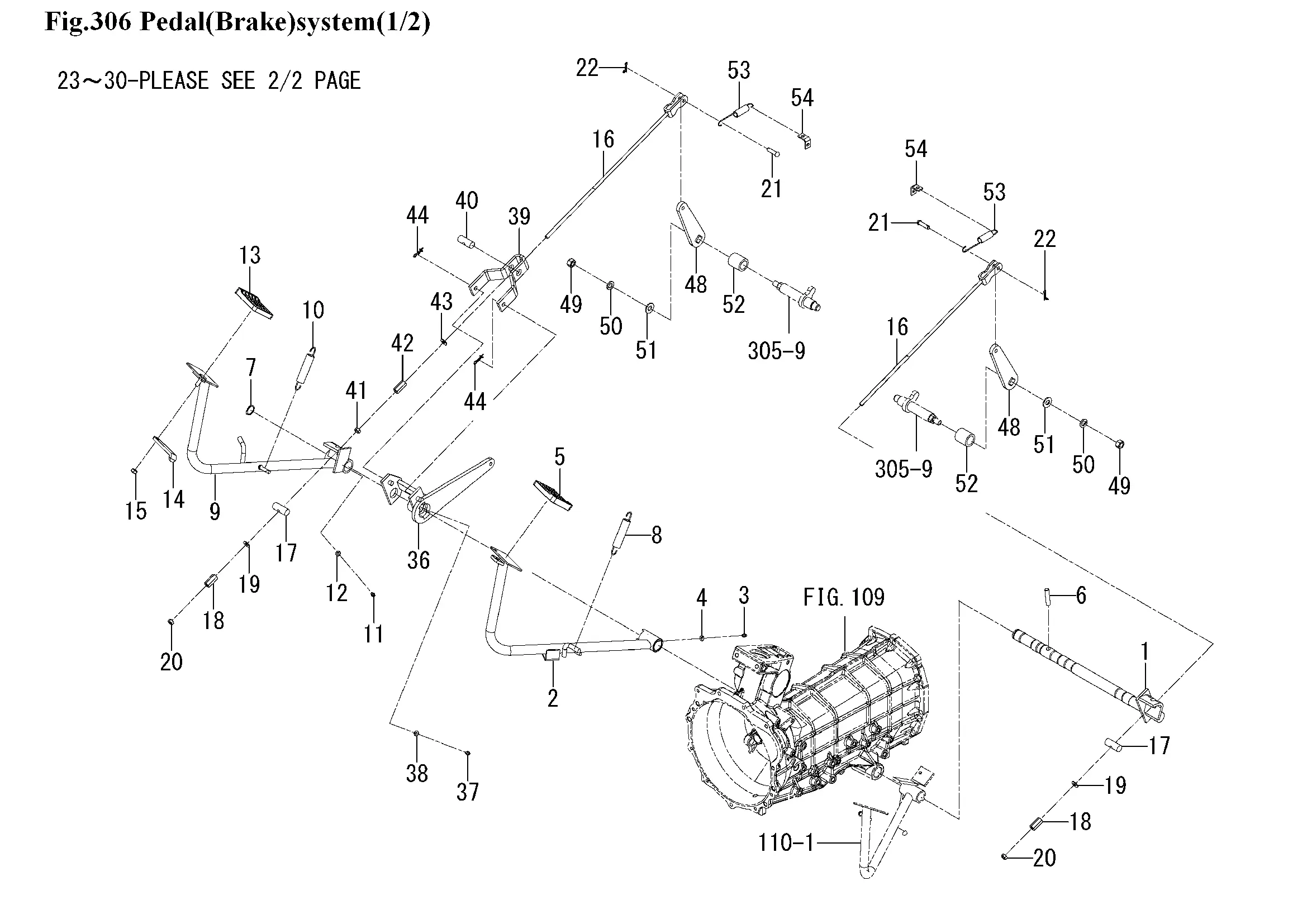

Pedal, Bremse
Ersatzteile (54 Teile)
1
1776-312-230-00
2
1776-312-210-00
3
NIPPLE,GREASE
4
V401-160-006-00
5
PAD
6
1776-312-004-00
7
RING,SNAP/25 C
8
SPRING/HE106
9
1776-312-220-00
10
SPRING/HE106
11
NIPPLE,GREASE
12
V401-160-006-00
13
PAD
14
1675-312-051-01
15
1719-312-001-00
16
1776-312-300-00
17
1776-312-006-00
18
3820-412-051-00
19
WASHER,PL/M8
20
NUT/M8
21
PIN,YOKE A
22
PIN/SNAP/B
23
1740-313-300-10
24
ROD
25
SPRING
26
BUTTON
27
GRIP/ORANGE
28
BOLT,SP/M8X20
29
ROD/M8X92
30
ROD/70 COMP
31
TURNBUCKLE/M8
32
NUT/M8
33
NUT/LH/M08
34
PIN/08X19
35
PIN/SNAP/B
36
1776-312-340-00
37
NIPPLE,GREASE
38
V401-160-006-00
39
1776-312-005-10
40
1776-312-006-00
41
NUT/M8
42
3820-412-051-00
43
3830-201-001-00
44
2161-222-003-00
45
RUBBER,CUSHION
46
INSULATOR
47
NUT/M8
48
1776-312-012-00
49
NUT/M12
50
WASHER,SP/M12
51
V411-260-012-00
52
COLLAR/22X32X35
53
SPRING/HE110
54
1738-312-009-00
