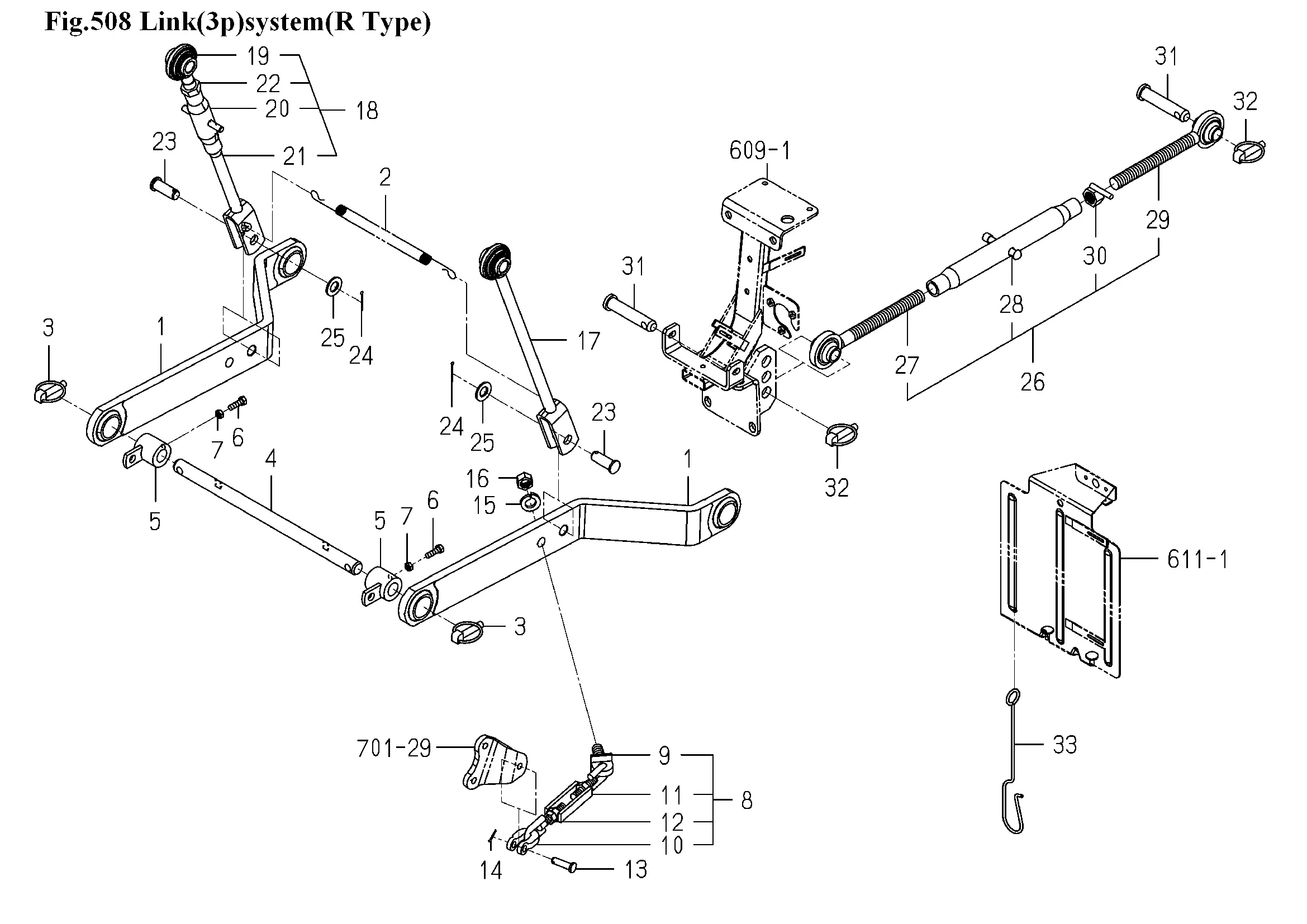

Heckaushebung
Ersatzteile (33 Teile)
1
LINK/LOWER COMP
2
SPRING
3
LINKPIN
4
PIN/22X404
5
HUB/SPACER COMP
6
V201-360-802-50
7
V305-260-008-00
8
CHIN/CHECK ASSY
9
CHAIN/CHECK/LH COMP
10
CHAIN/CHECK/RH COMP
11
BACKLE/TURN COMP
12
1776-514-501-00
13
PIN/10X32
14
PIN,SPLIT/2.5X20
15
WASHER,SP/M16
16
V334-460-016-00
17
ROD/LIFT/LH COMP
18
ROD/LIFT/RH ASSY
19
ROD/LIFT/RH/B COMP
20
BACKLE/TURN COMP
21
1776-514-270-00
22
1776-514-241-00
23
PIN/16X44
24
PIN,SPLIT/4X30XSUS
25
V411-260-016-00
26
LINK/TOP ASSY
27
LINK/TOP/LH COMP
28
BACKLE/TURN COMP
29
LINK/TOP/RH COMP
30
1776-514-350-00
31
PIN/19X94
32
LINKPIN
33
HOOK,TOP LINK
