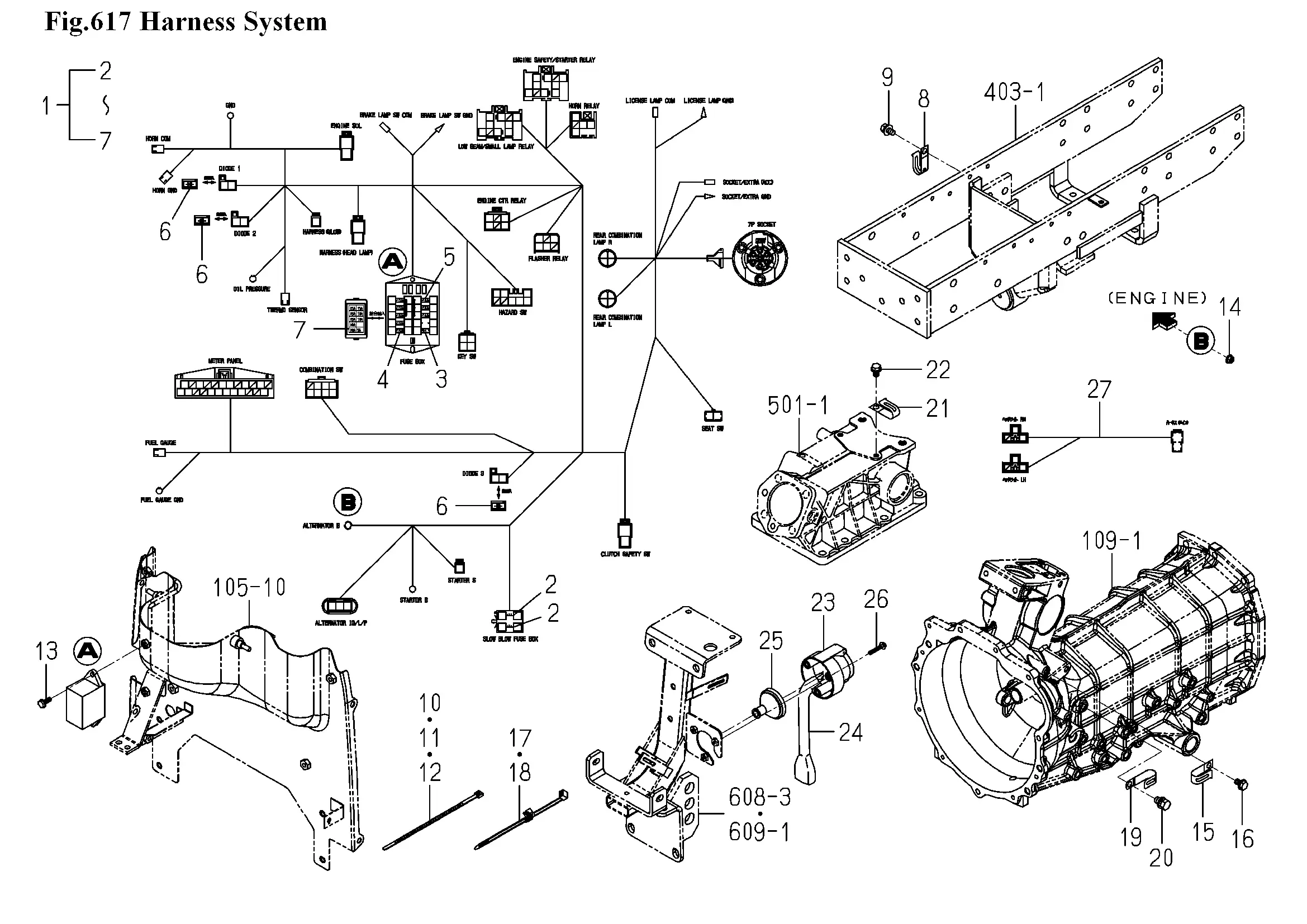

Kabelbaum
Ersatzteile (27 Teile)
1
HARNESS/MAIN ASSY
2
FUSE/SLOW BLOW/40A
3
FUSE/BLADE/32V05A
4
FUSE/BLADE/32V10A
5
FUSE/BLADE/32V15A
6
DIODE/3A
7
1776-690-312-00
8
HOLDER/JE/9-9
9
BOLT,SP/M8X16
10
1342-402-006-00
11
BAND,WIRE/140
12
BAND,WIRE/140
13
FLANGEBOLT/M6X16
14
NUT/FLANGE/M6
15
HOLDER/JE/9-9
16
V231-360-801-20
17
1560-666-004-00
18
1560-666-004-00
19
CLAMP,HARNESS
20
V211-261-001-60
21
HOLDER/JE/9-9
22
V231-360-801-20
23
PLUG/7P
24
HARNESS/SOCKET ASSY
25
1650-654-036-00
26
V120-265-003-00
27
1776-690-320-00
