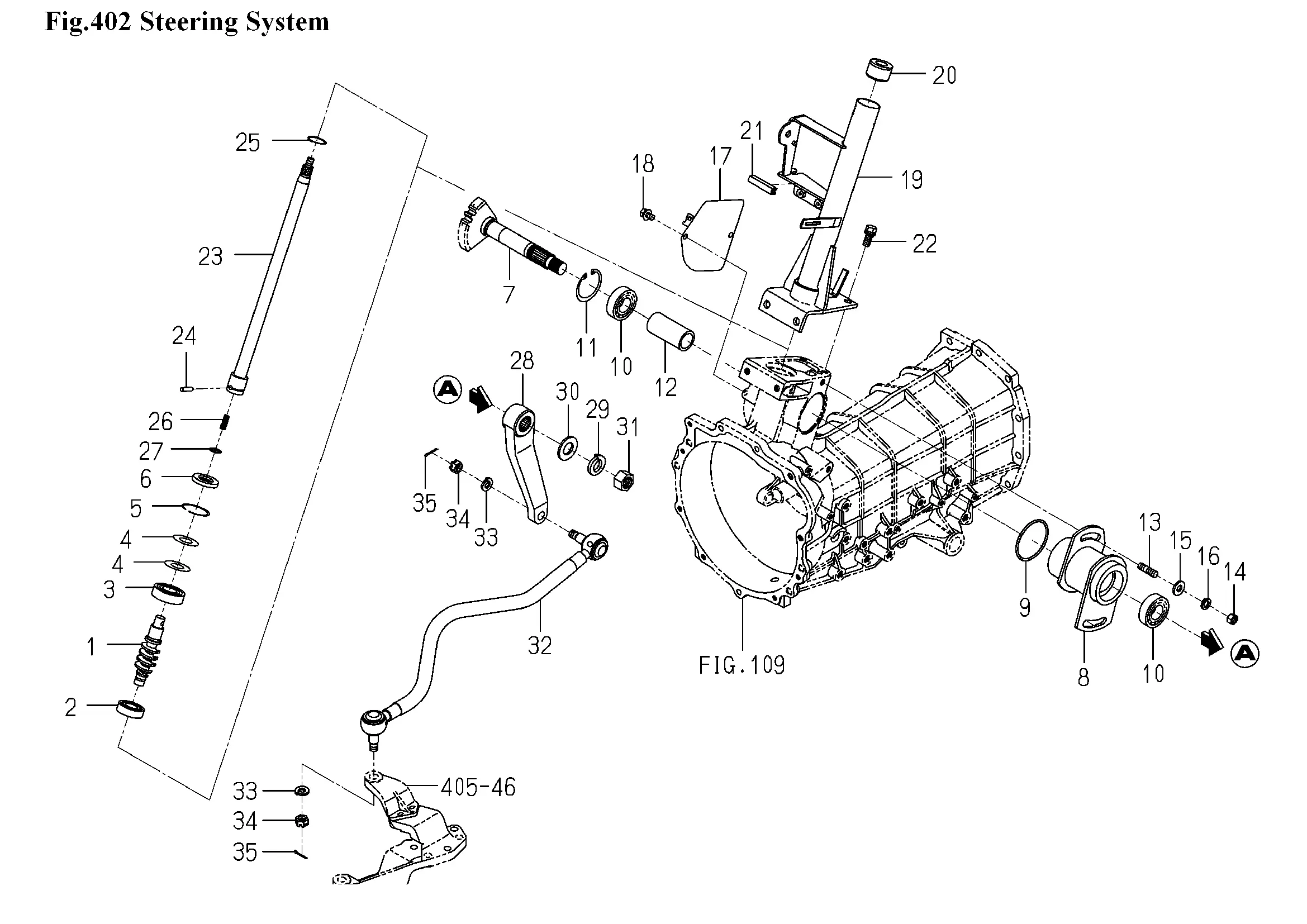

Lenkung
Ersatzteile (35 Teile)
1
WORM/24
2
BEARING,RB/7202
3
BEARING,RB/7004
4
SHIM/20X42X01
5
RING,SNAP/42 C
6
SEAL,OIL/VC20426
7
GEAR/HELICAL/28 COMP
8
FLANGE/CONTROL COMP
9
O-RING/1B,G65
10
BEARING/BALL
11
RING,SNAP/52 C
12
COLLAR/26X34X72
13
V252-341-002-00
14
V304-460-010-00
15
1337-721-002-00
16
WASHER,SP/M10
17
1776-406-270-10
18
BOLT,SP/M8X16
19
1776-406-240-00
20
1429-406-205-10
21
PAD/50
22
BOLT,S/M10X25/7T
23
SHAFT/STEERING COMP
24
PIN/PARALLEL/06X24
25
RING,SNAP/28 C
26
SPRING/HC022
27
O-RING/1A,S16
28
ARM/PITMAN
29
WASHER,SP/M20
30
WASHER,PL/M20
31
V304-460-020-00
32
ROD/DRAG COMP
33
WASHER,SP/M12
34
NUT,CASTLE/M12 P1.25
35
V500-163-002-00
