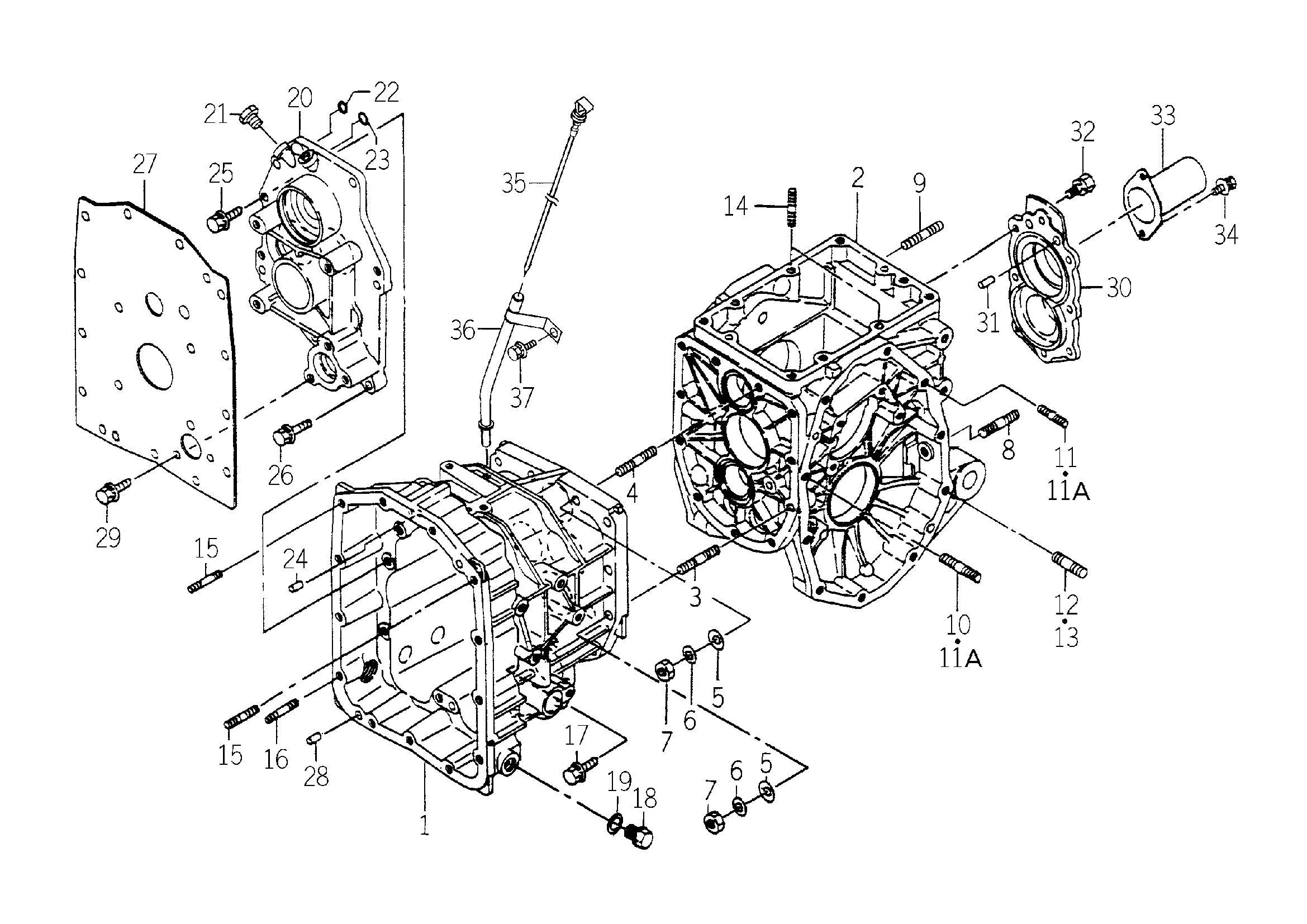

Getriebegehäuse
Ersatzteile (38 Teile)
1
Gehäuse
2
1688-201-055-10
3
V252-341-003-50
4
Stiftschraube, M10x35
5
V411-260-010-00
6
WASHER,SP/M10
7
NUT/M10
8
V251-261-202-5D
9
STUD/M12X25/7T
10
V252-261-004-00
11
BOLT/M10X55
11A
BOLT/M10X55
12
V252-341-204-50
13
STUD/M12X50/7T
14
STUD/M10X30/7T
15
V252-341-002-00
16
STUD/M10X25/7T
17
BOLT,SP/M10X50/7T
18
PLUG,DRAIN
19
Dichtring, AblasSchraube
20
Deckel
21
PLUG/SCREW/SEAL
22
O-RING/1B,P7
23
O-Ring
24
PIN,ST,B/10X24
25
BOLT,SP/M10X35/7T
26
BOLT,SP/M10X40/7T
27
Platte
28
PIN,KNOCK
29
V211-660-802-00
30
METAL/PTO
31
PIN,ST,B/10X24
32
BOLT,S/M8X30
33
1444-314-009-10
34
V210-360-602-00
35
Peilstab
36
Peilstabhülse
37
BOLT,SP/M8X20
