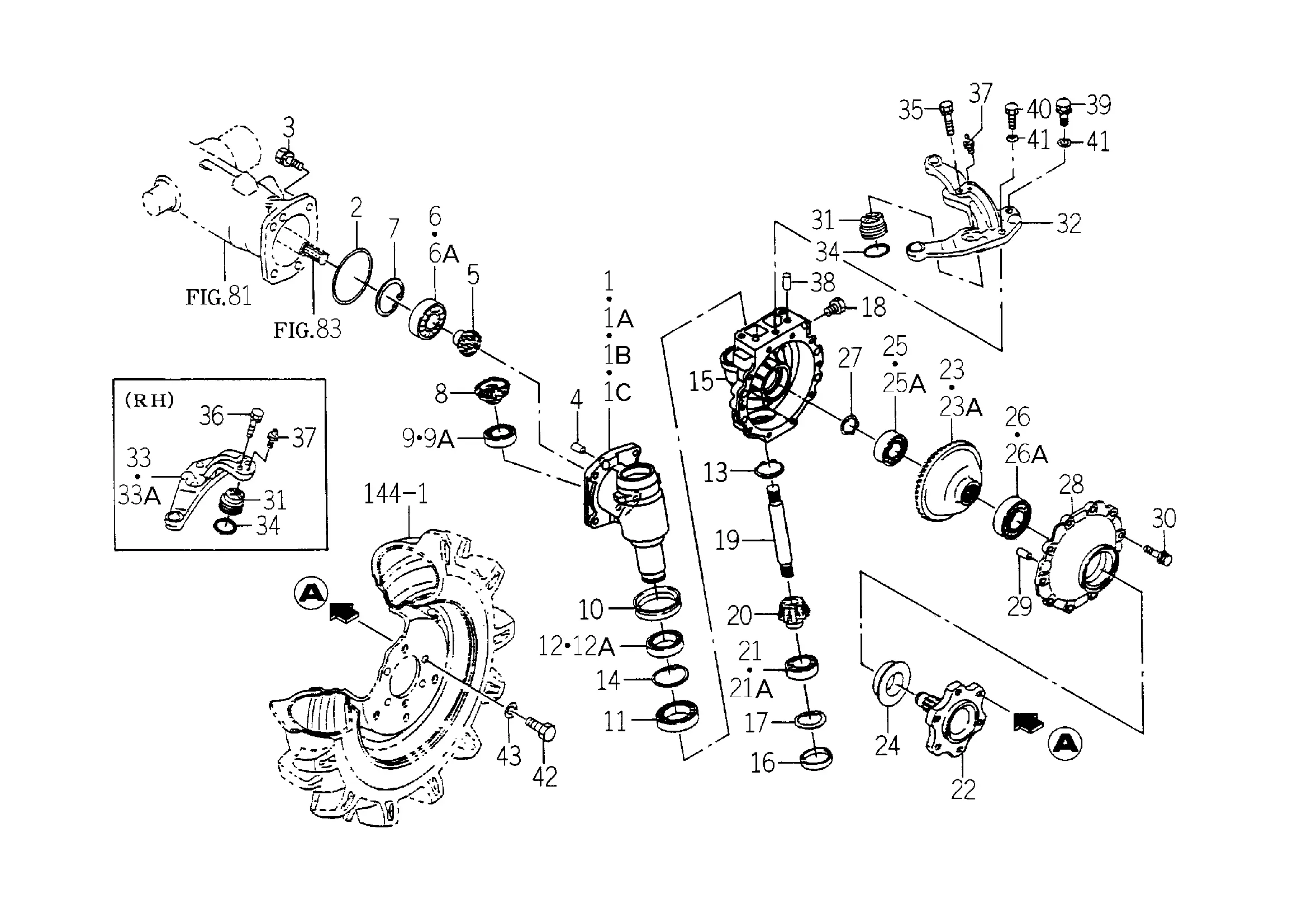

Vorderachsantrieb
Ersatzteile (54 Teile)
1
1689-434-001-20
1A
1726-434-011-00
1B
1726-434-011-10
1C
Achsschenkel
2
O-RING/1A,G90
3
V211-561-003-00
4
PIN,ST,B/10X24
5
Kegelrad
6
BEARING,RB/6305
6A
V600-410-630-50
7
RING,SNAP/R62
8
Kegelrad
9
V600-110-600-50
9A
V600-410-600-50
10
SEAL/OIL ASSY
11
BEARING,RB/6907
12
BEARING,RB/6008
12A
V600-410-600-80
13
RING,SNAP/35 C
14
V707-140-055-00
15
1672-434-011-10
16
1564-201-003-00
17
RING,SNAP/47 C
18
PLUG,DRAIN (1/4)
19
Welle
20
Zahnrad
21
V600-110-600-50
21A
V600-410-600-50
22
SHAFT/WHEEL
23
Tellerrad
23A
1672-434-008-10
24
SEAL/QLNY35571116
25
BEARING,RB/6205
25A
V600-410-620-50
26
BEARING,RB/6206
26A
V600-410-620-60
27
RING,SNAP/25 C
28
Deckel, Vorderachse
29
PIN,ST,B/10X24
30
BOLT,SP/M8X25
31
Verschlussdeckel f.Achsgehäuse
32
Achsschenkel, li
33
1684-434-012-00
33A
Achsschenkel, re
34
O-RING/1A,P41
35
BOLT,S/M8X25/7T
36
V211-560-802-00
37
NIPPLE,GREASE
38
PIN,ST,B/10X24
39
BOLT,S/M10X35/7T
40
BOLT/SEAL
41
WASHER,SP/M10
42
BOLT/M12X25/7T
43
WASHER,SP/M12
