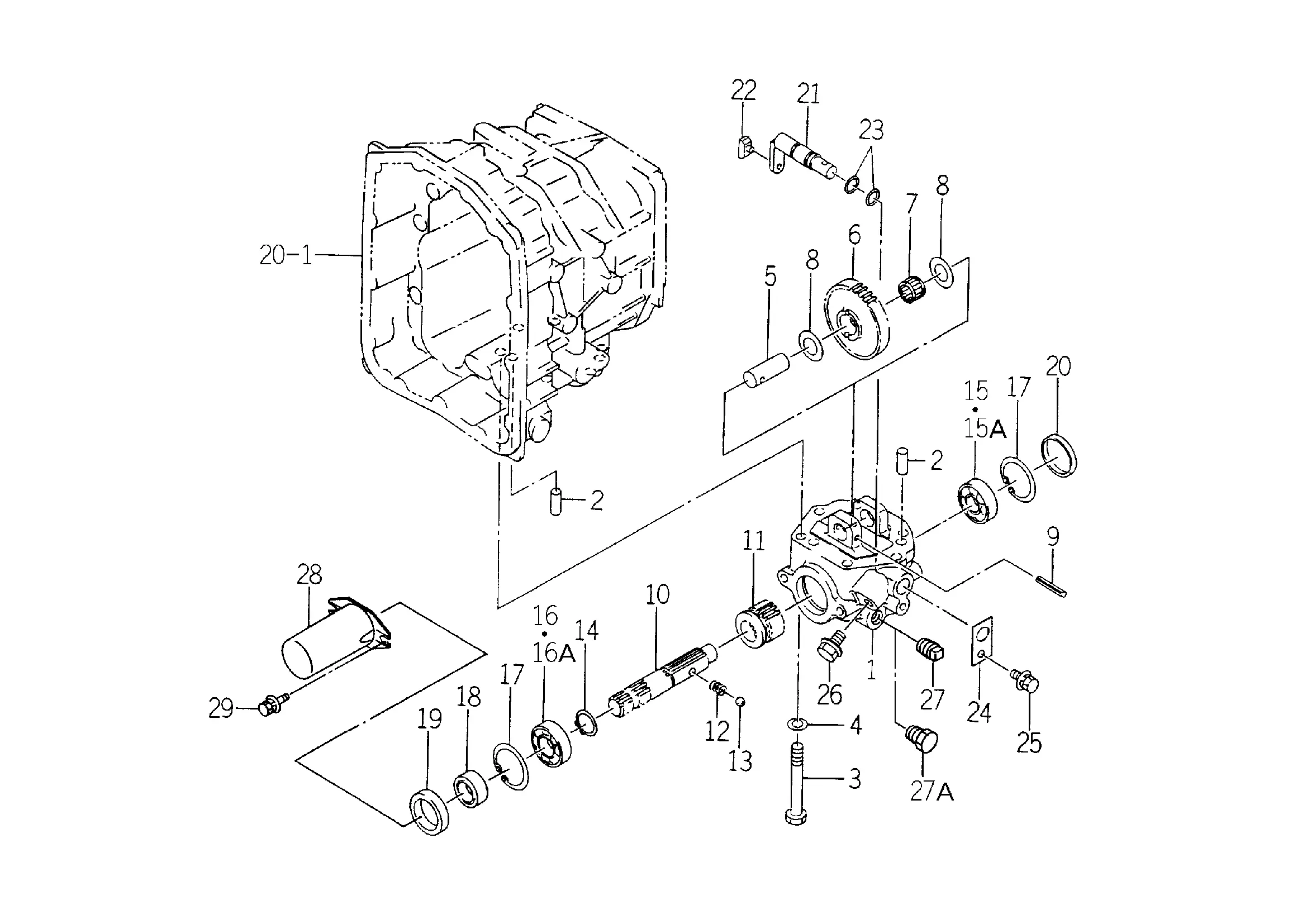

Zwischenachs PTO
Ersatzteile (32 Teile)
1
1682-255-201-10
2
PIN,ST,B/10X24
3
V201-361-009-00
4
WASHER,SP/M10
5
PIN/20X51
6
Zahnrad
7
Nadellager
8
Buchse
9
V580-140-604-00
10
Welle
11
1682-255-205-10
12
SPRING,SHIFTER
13
BALL,STEEL
14
RING,SNAP/25 C
15
BEARING,RB/6304
15A
V600-410-630-40
16
BEARING,RB/6205
16A
V600-410-620-50
17
RING,SNAP/52 C
18
1427-212-003-20
19
SEAL,OIL/TC35528
20
3625-701-003-00
21
1682-255-210-40
22
COLLAR,SHIFTER
23
O-RING/1A,P14
24
PLATE/I/30X50
25
BOLT,SP/M8X16
26
V233-361-201-60
27
PLUG/SCREW/SEAL
27A
PLUG/SCREW/SEAL
28
1444-314-009-10
29
V210-360-602-00
