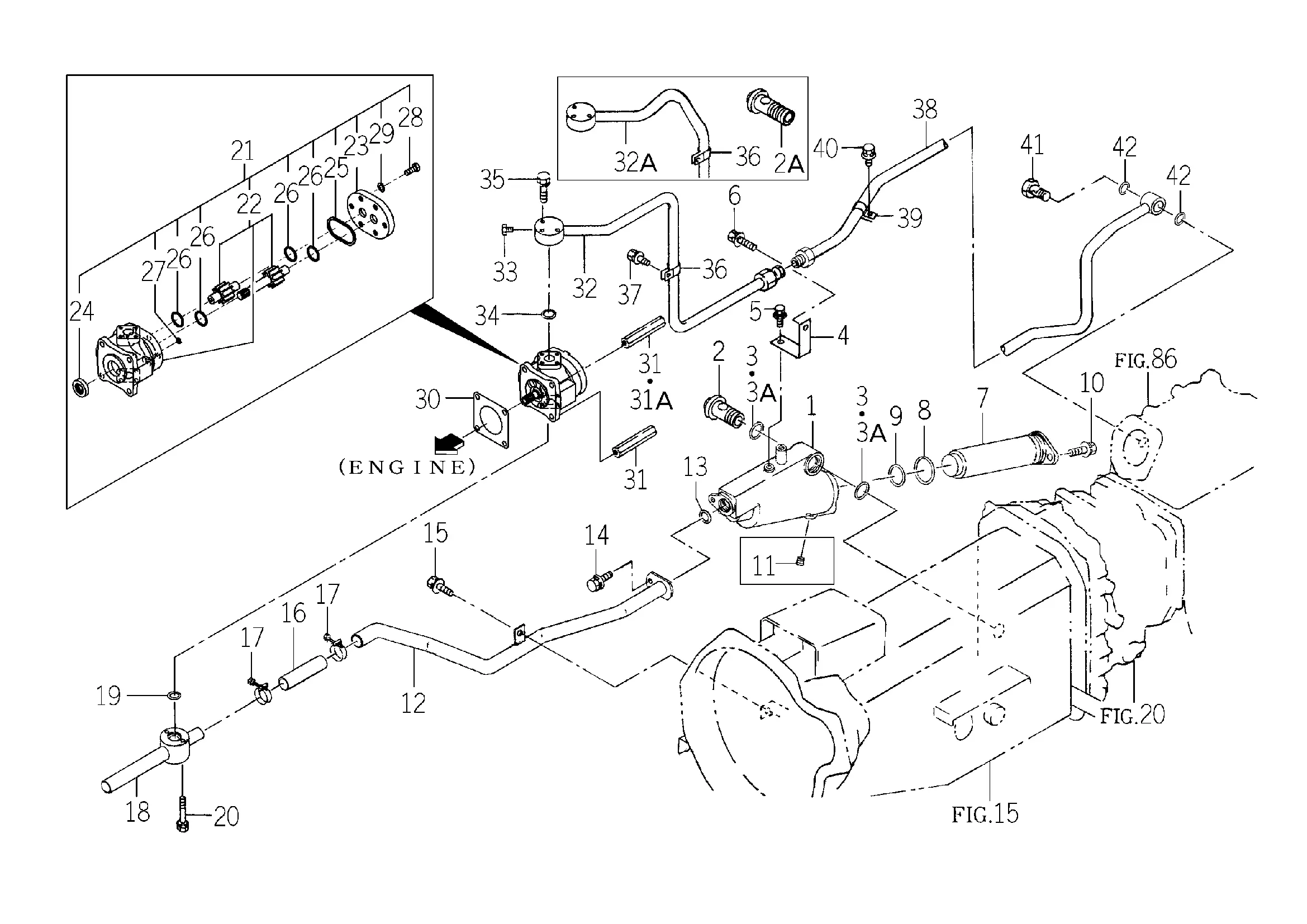

Hydraulikpumpe, Leitungen
Ersatzteile (46 Teile)
1
Filtergehäuse
2
Hohlschraube
2A
ADAPTER/BOLT/M28X2.0
3
O-RING/1B,P28
3A
O-RING/1A,P28
4
1750-508-052-00
5
BOLT,SP/M8X16
6
BOLT,SP/M10X25
7
Hydraulikfilter
8
O-RING/1A,G45
9
O-Ring P35
10
BOLT,SP/M10X25
11
PLUG/SCREW/SEAL
12
Hydraulikleitung
13
O-RING/1B,P24
14
BOLT,SP/M8X16
15
BOLT,SP/M8X20
16
Schlauch
17
CLAMP/WIRE/28-36
18
1750-508-230-10
19
O-RING/1B,P20
20
BOLT,S/M6X50/7T
21
PUMP,GEAR ASSY
22
K135-012-100-00
23
COVER,PUMP
24
SEAL,OIL/TC14287
25
O-RING/1B,G50 HS90
26
O-RING/1B,P22
27
O-RING/1B,P6
28
K135-002-009-00
29
V401-170-008-00
30
PACKING,OIL PUMP
31
NUT/M08
31A
NUT/M08
32
1750-508-240-10
32A
PIPE/DEL/FRONT COMP
33
PLUG/SCREW/SEAL
34
O-RING/1B,P20
35
BOLT,S/M6X30/7T
36
1675-508-003-00
37
BOLT,SP/M8X16
38
Hydraulikleitung
39
1675-508-003-00
40
BOLT,SP/M8X16
41
ADAPTER/BOLT/G3/8
42
O-RING/1B,P18
