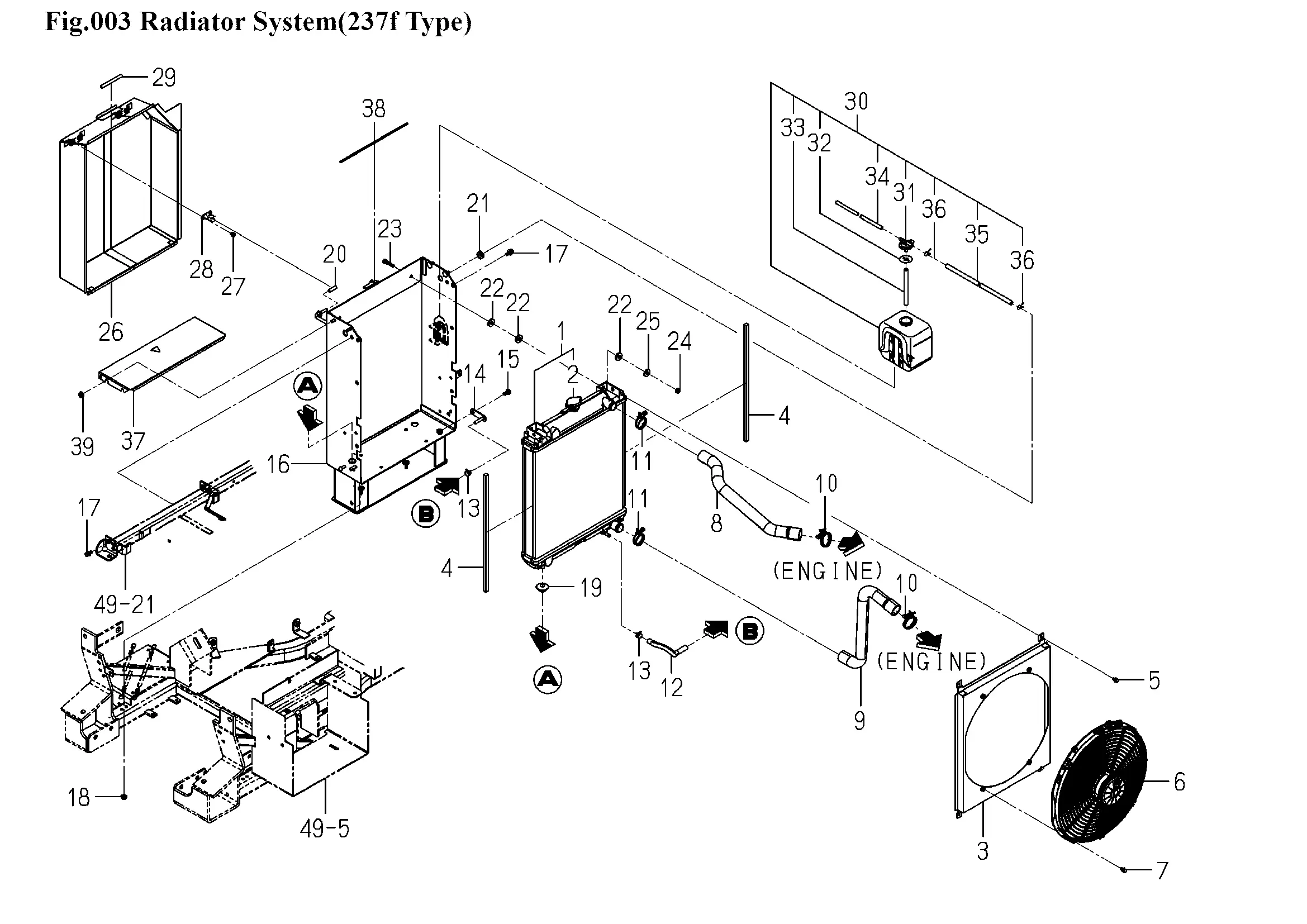

Kühler
Ersatzteile (39 Teile)
1
RADIATOR ASSY
2
CAP
3
1832-102-220-00
4
INSULATOR/10X10X450
5
BOLT,SP/M6X16
6
1832-102-310-10
7
BOLT,SP/M6X16
8
1832-102-062-00
9
1832-102-063-00
10
CLAMP/WIRE/36-44
11
J061-230-038-00
12
HOSE/290 ASSY
13
CLIP/HOSE/14.7-15.9
14
1809-102-330-00
15
FLANGEBOLT/M8X16
16
1832-102-610-00
17
BOLT,SP/M8X20
18
Kombimutter-M8
19
BUSH,LEVER
20
TUBE/07X09X30
21
GROMMET
22
CUSHION/RUBBER/10X25
23
V201-260-803-50
24
1719-312-001-00
25
WASHER/24X9X3.2
26
COVER/RADIATOR COMP
27
SCREW,SP/M6X12
28
SPRING
29
INSULATOR/90
30
RESERVETANK ASSY
31
CAP
32
PACKING
33
1690-102-214-00
34
1690-102-215-00
35
1690-102-216-00
36
HOSE/RUBBER
37
1832-102-065-00
38
INSULATOR/300
39
Kombimutter-M8
