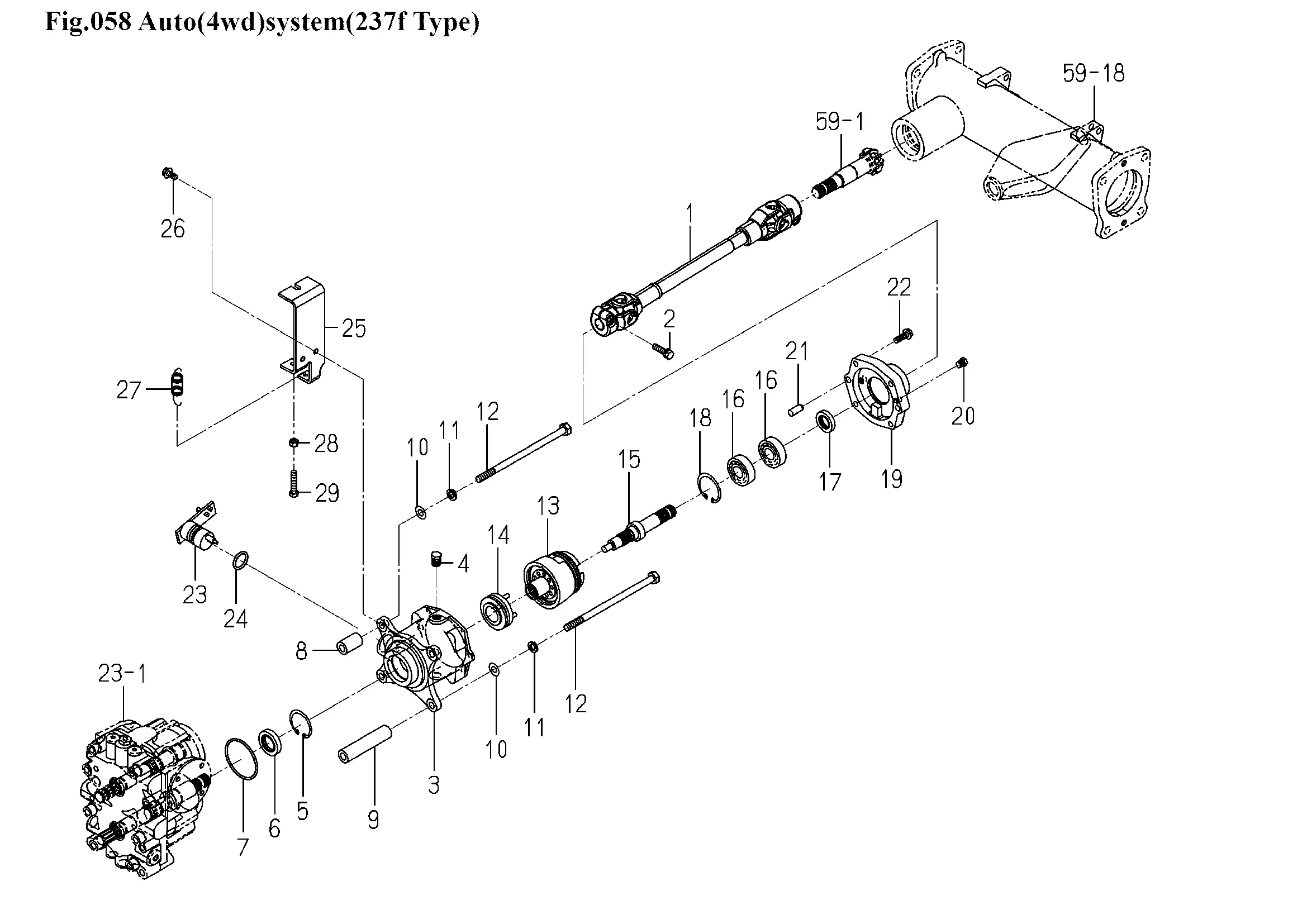

Kupplung, Allradantrieb
Ersatzteile (29 Teile)
1
1832-431-610-00
2
BOLT/SEAL/M8X30X9T
3
CASE/4WD
4
PLUG/SCREW/SEAL
5
RING,SNAP/45 C
6
SEAL,OIL/TC25458
7
O-RING/1A,G65
8
HUB/12X22X30
9
HUB/12X22X97
10
V411-260-010-00
11
WASHER,SP/M10
12
1832-431-006-00
13
1720-221-210-00
14
1720-221-230-00
15
SHAFT/OUTPUT
16
V600-110-620-40
17
V744-120-350-70
18
RING,SNAP/47 C
19
1832-431-002-00
20
PLUG/SCREW/SEAL
21
PIN,ST,B/10X22
22
V211-660-803-50
23
1832-431-220-00
24
O-RING/1A,P24
25
1832-431-007-10
26
FLANGEBOLT/M8X16
27
SPRING,TENSION
28
NUT/M8
29
V201-360-804-00
