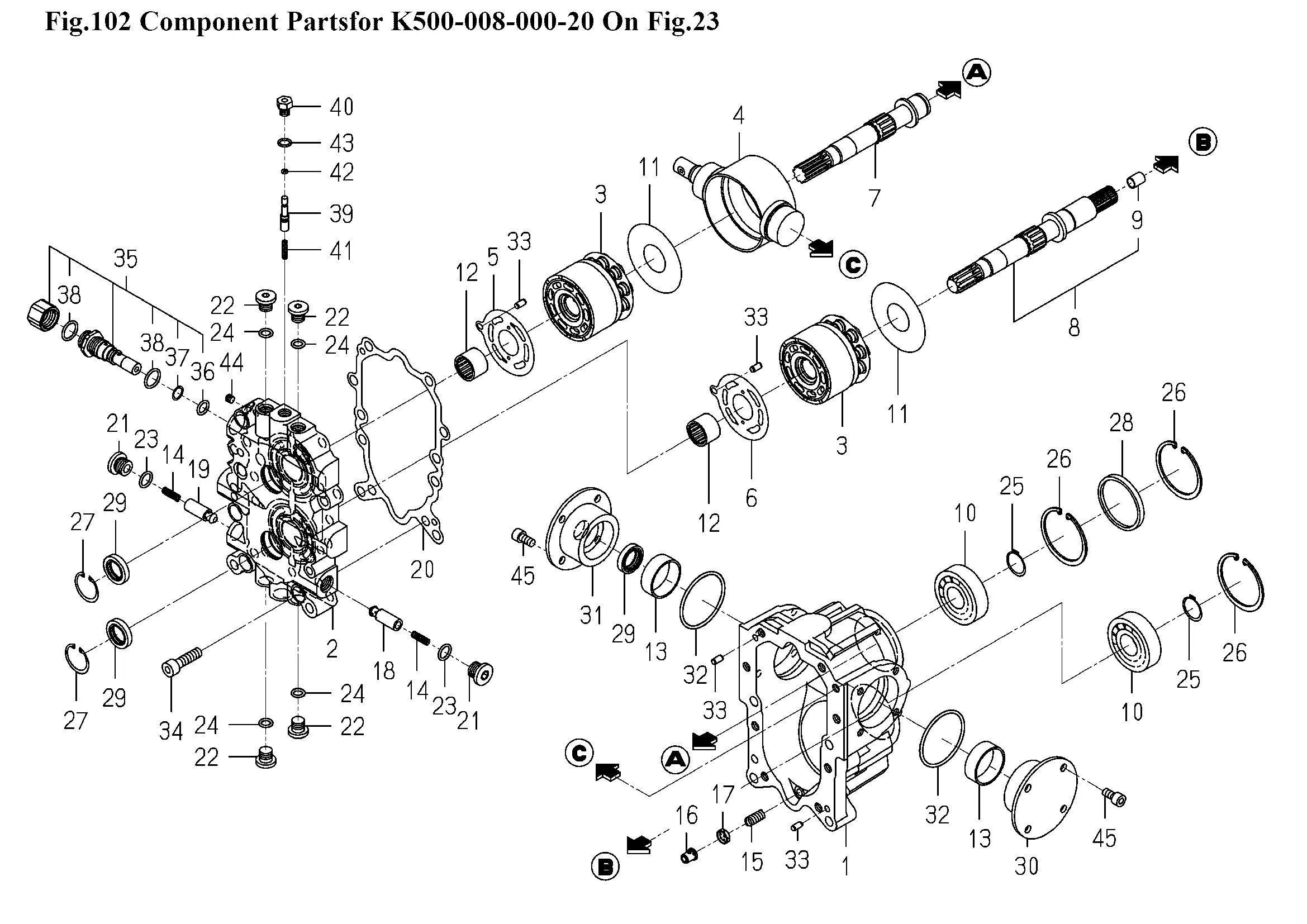

Einzelteile Hydrostat K500-008-000-20
Ersatzteile (45 Teile)
1
K500-008-001-00
2
K500-008-004-00
3
K500-006-300-10
4
K500-006-006-10
5
PLATE/VALVE/PUMP
6
PLATE/VALVE/MOTOR
7
K500-008-012-00
8
K500-008-610-00
9
BUSH/10X12X15
10
BEARING,RB/6305
11
K500-006-015-00
12
NEEDLE
13
BUSH/40X44X15
14
SPRING/HC030
15
SPRING/HC021
16
K510-003-022-00
17
K510-026-037-00
18
POPPET/CHECK/0.5
19
K500-008-023-00
20
GASKET/HMP1/008
21
PLUG(G3/8)
22
PLUG(PF1/4)
23
O-RING/1B,P14
24
O-RING/1B,P11
25
RING,SNAP/25 C
26
RING/SNAP/R62
27
RING,SNAP/32 C
28
PLUG,CAP/62X6
29
OIL SEAL
30
K500-008-034-00
31
K500-008-035-00
32
O-RING/1A,G60
33
K510-001-036-00
34
V220-541-003-50
35
K500-008-100-20
36
O-RING/1B,P12
37
RING/BACK UP
38
O-RING/1B,P18
39
SPOOL
40
PLUG/M12X1.25
41
SPRING/HC023
42
O-RING
43
O-RING/1B,P10
44
PLUG/SCREW/SEAL
45
K500-007-039-00
