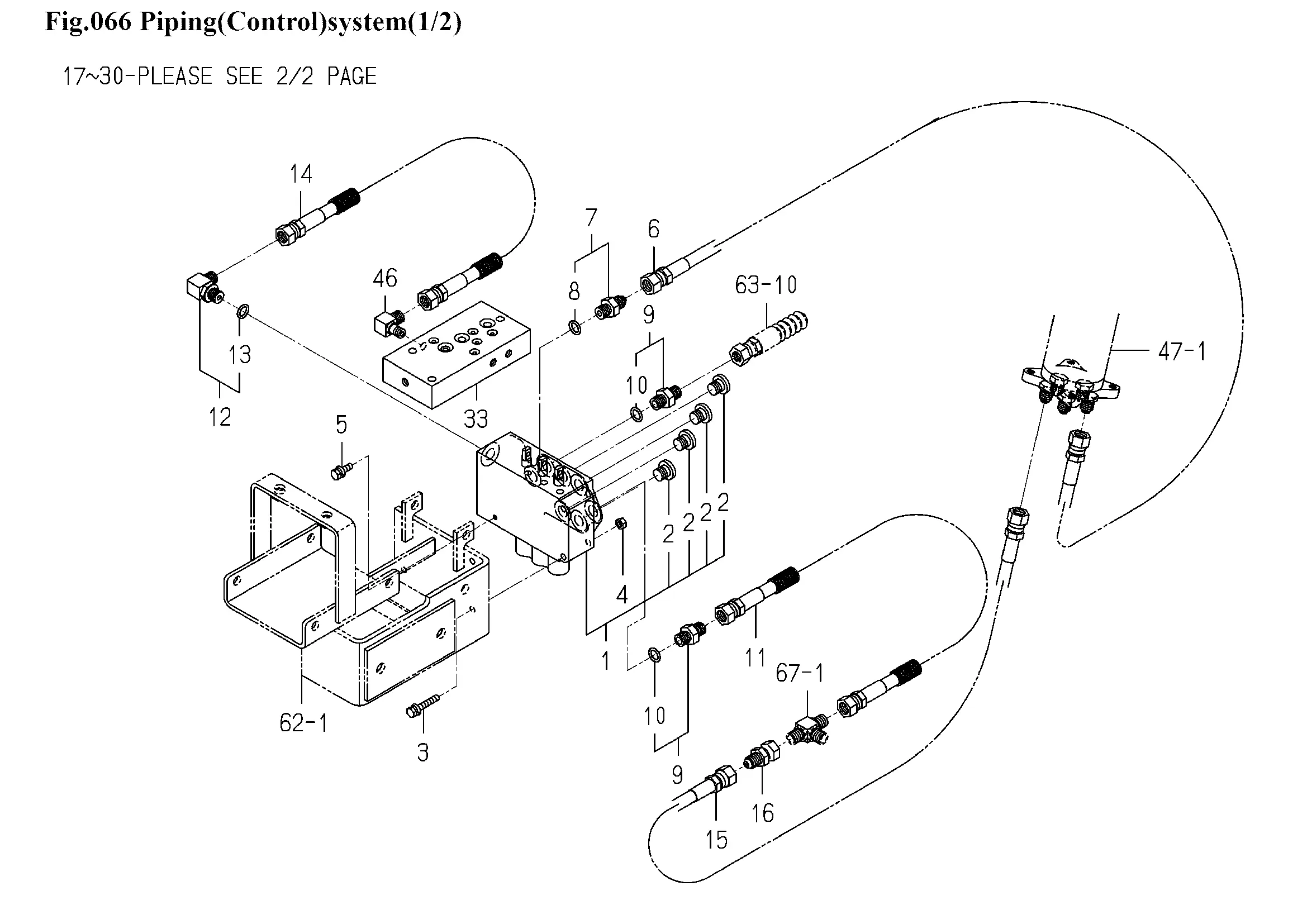

Hydr. Leitungen Steuerventil
Ersatzteile (56 Teile)
1
1728-508-280-10
2
PLUG(PF1/4)
3
V210-360-603-50
4
V301-260-006-00
5
V210-360-602-00
6
1832-509-610-00
7
ADAPTER/G1/4 ASSY
8
O-RING/1B,P11
9
ADPTER/G1/4.1/4
10
O-RING/1B,P11
11
1832-509-640-00
12
ADAPTER/L/G1/4 ASSY
13
O-RING/1B,P11
14
1832-509-320-00
15
1832-509-620-00
16
ADAPTER/G1/4
17
VALVE/282 ASSY
18
VALVE/REDUCE/21 SET
19
O-RING/1B,P22
20
O-RING/1B,P16
21
VALVE/PRV/B ASSY
22
O-RING/1B,P20
23
O-RING/AS568/013
24
O-RING/AS568/014
25
O-RING/AS568/015
26
PLUG/SCREW/SEAL
27
RELIEFVALVE/090 ASSY
28
SPRING/HC045
29
POPPET/1.3
30
1832-509-230-00
31
O-RING/1B,P14
32
O-RING/1B,P14
33
BODY/VALVE/PTO
34
1729-509-001-10
35
O-RING/1B,P12
36
O-RING/1B,P7
37
PLUG/SCREW/SEAL
38
V201-260-807-50
39
BOLT/M8X80
40
WASHER,SP/M8
41
WASHER,PL/M8
42
ELBOW/90DEG ASSY
43
O-RING/1B,P14
44
ADAPTER/PF1/4 ASSY
45
O-RING/1B,P11
46
ADAPTER/L/PT1/8
47
ADAPTER/PT1/8
48
ADAPTER/PF1/4 ASSY
49
O-RING/1B,P11
50
1832-509-630-10
51
PIPE/PTO/MOWER COMP
52
ADAPTER/G1/4-M1 ASSY
53
O-RING/1B,P11
54
1832-509-350-00
55
ADAPTER/L/PF1/4 ASSY
56
O-RING/1B,P11
