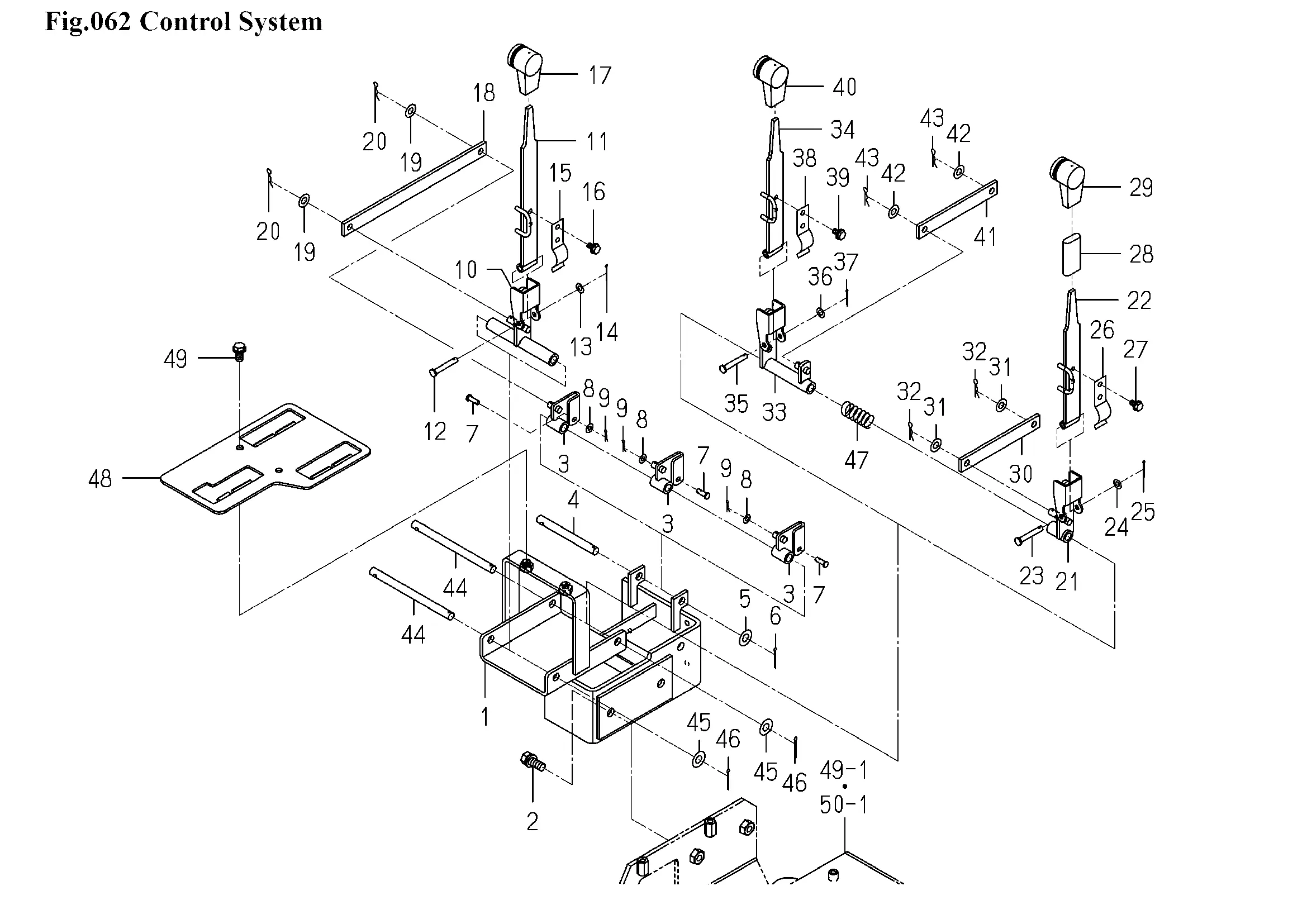

Hebel, Hydraulik
Ersatzteile (49 Teile)
1
1832-503-250-10
2
V211-561-003-00
3
1832-503-210-00
4
1832-503-003-00
5
V411-260-010-00
6
V500-162-502-50
7
PIN/05X17
8
V411-260-005-00
9
PIN/SNAP
10
1832-503-220-10
11
LEVER/LIFT COMP
12
PIN/6X42
13
V411-260-006-00
14
PIN,SPLIT/2X20
15
SPRING/PLATE
16
FLANGEBOLT/M6X10
17
GRIP
18
1832-503-001-00
19
WASHER,PL/M8
20
PIN/SNAP
21
1832-503-230-10
22
1832-503-270-10
23
PIN/6X42
24
V411-260-006-00
25
PIN,SPLIT/2X20
26
SPRING/PLATE
27
FLANGEBOLT/M6X10
28
INSULATOR/LEVER/SUB
29
GRIP
30
1832-503-002-00
31
WASHER,PL/M8
32
PIN/SNAP
33
1832-503-240-10
34
1832-503-270-10
35
PIN/6X42
36
V411-260-006-00
37
PIN,SPLIT/2X20
38
SPRING/PLATE
39
FLANGEBOLT/M6X10
40
GRIP
41
1832-503-002-00
42
WASHER,PL/M8
43
PIN/SNAP
44
1832-503-004-00
45
V411-260-010-00
46
V500-162-502-50
47
SPRING/HC043
48
1832-503-280-10
49
V211-660-802-00
