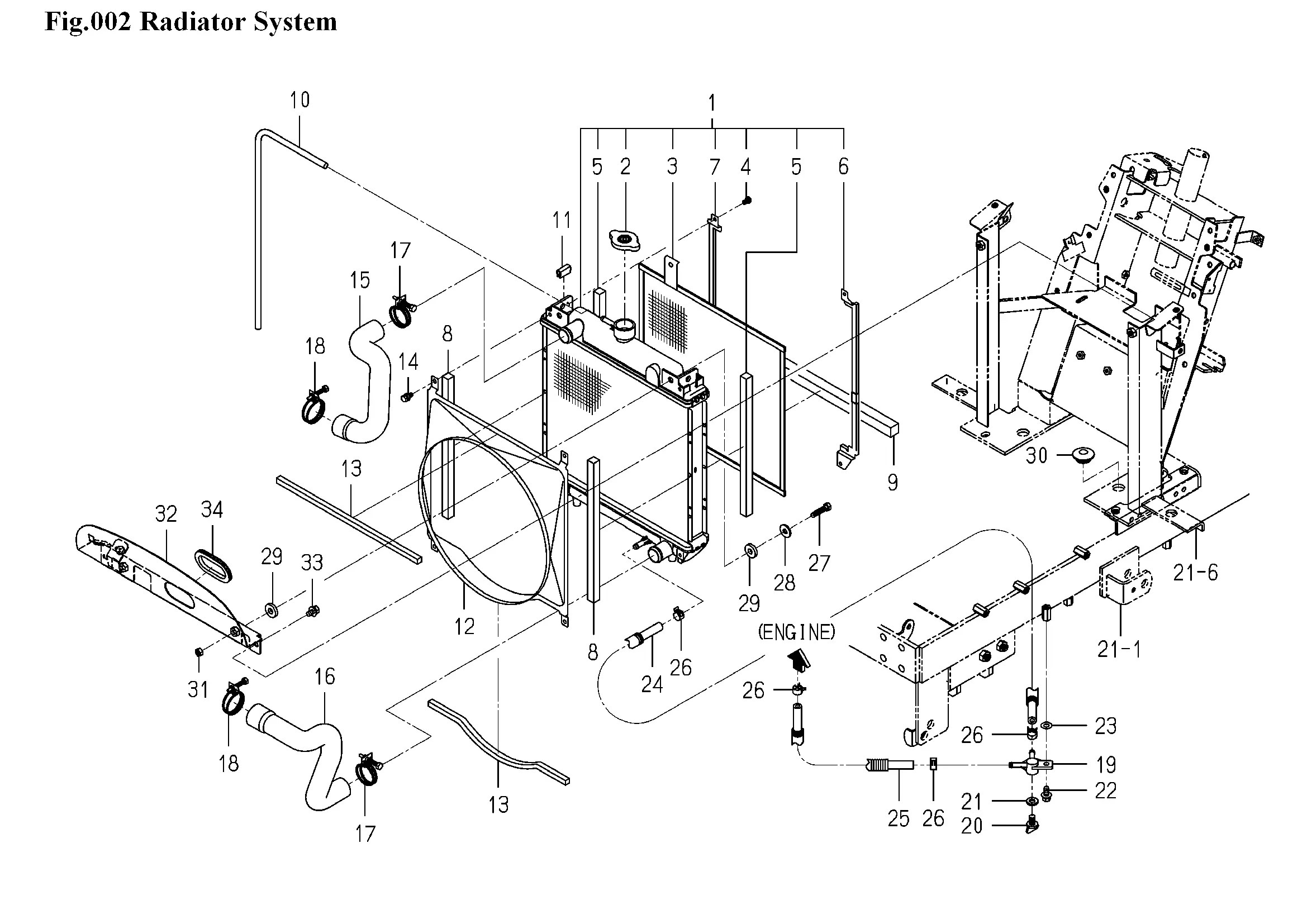

Kühler
Ersatzteile (34 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
SCREW/P
5
1703-102-204-00
6
GUIDE
7
GUIDE
8
INSULATOR
9
INSULATOR/20X20X350
10
2515-102-003-00
11
PAD/25
12
1782-102-001-00
13
1703-102-003-00
14
V210-360-601-20
15
HOSE/RADIATOR/INLET
16
HOSE/RADIATOR/OUTLET
17
J061-230-038-00
18
CLAMP/WIRE/36-44
19
CONNECTOR
20
1424-101-203-00
21
PACKING
22
V211-360-803-50
23
WASHER,PL/M8
24
HOSE/290 ASSY
25
HOSE/290 ASSY
26
CLIP/HOSE/14.7-15.9
27
V201-260-803-50
28
WASHER/24X9X3.2
29
CUSHION/RUBBER/10X25
30
BUSH,LEVER
31
NUT/M8
32
PANEL/RADIATOR COMP
33
BOLT,SP/M8X16
34
TRIM/188
