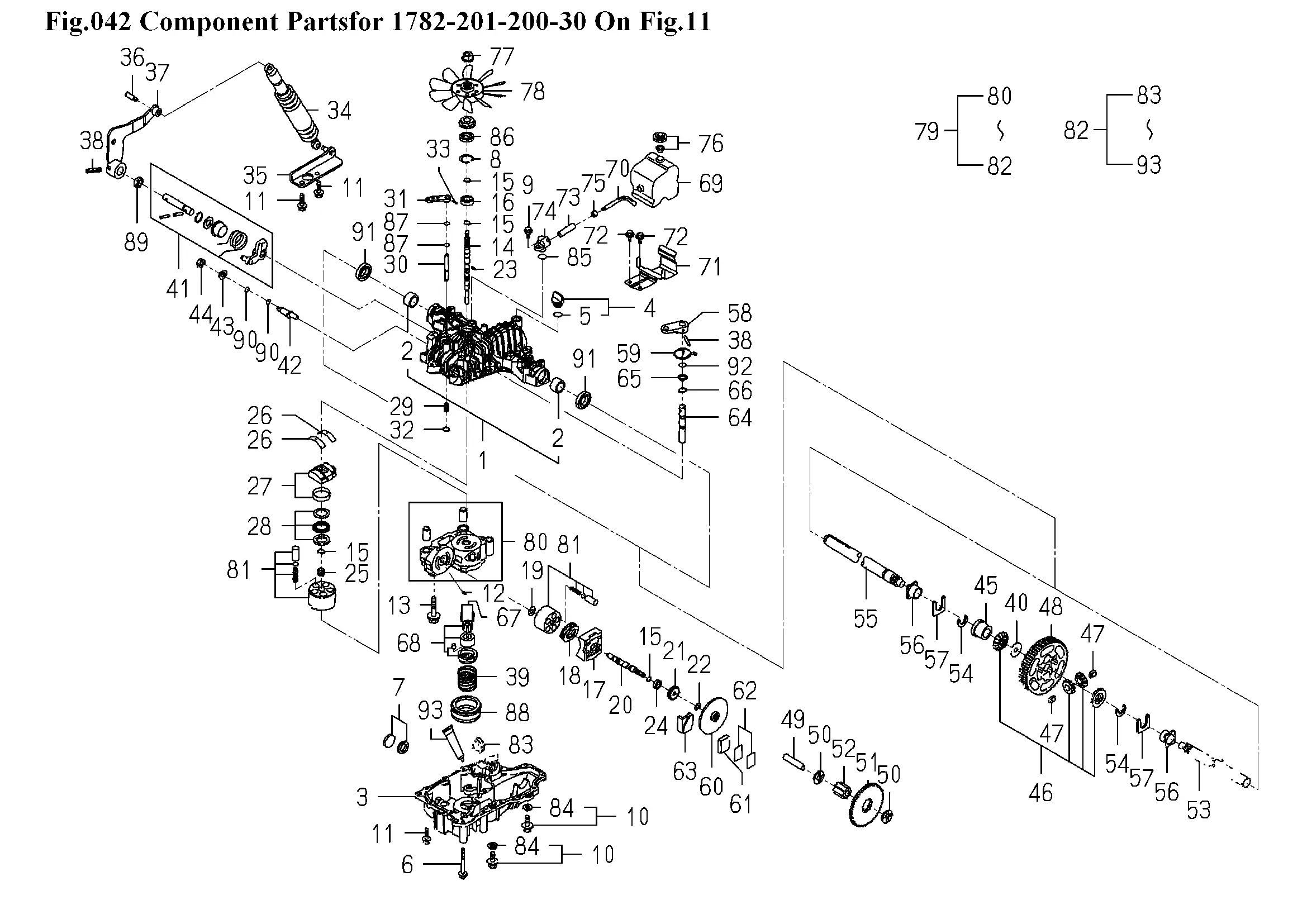

Einzelteile Hydrostat
Ersatzteile (93 Teile)
1
UPPERCASEKIT
2
BUSHING25.4
3
LOWERCASE
4
OILCAPM20B ASSY
5
O-RINGP18
6
1782-201-207-00
7
MAGNET
8
SNAPRINGC35
9
1782-201-215-00
10
DRAINBOLTKIT
11
1782-201-217-00
12
PIN3X9.8
13
1782-201-223-00
14
PUMPSHAFT
15
SNAPRINGS15
16
BEARING6202C3
17
MOTORHOUSING
18
1782-201-229-00
19
1782-201-231-00
20
1782-201-232-00
21
1782-201-233-00
22
1782-201-234-00
23
PIN3X13.8
24
BEARING6302DUC3
25
PUMPSPRING
26
THRUSTMETAL
27
SWASHPLATE ASSY
28
1782-201-560-00
29
1782-201-243-00
30
1782-201-244-00
31
BYPASSLEVER
32
1782-201-246-00
33
1782-201-247-00
34
SHOCKABSORBERK65
35
SHOCKSTAY
36
PINSHOCK
37
CONTROLLEVER
38
1782-201-254-00
39
CHARGESPRING
40
WASHER/17X36X6.4
41
CONTROLSHAFTKIT
42
1782-201-261-00
43
1782-201-262-00
44
1782-201-264-00
45
COLLAR25.4
46
DIFFGEARKIT
47
PIN17X24
48
FINALGEAR(67T)
49
1782-201-269-00
50
1782-201-270-00
51
1782-201-271-00
52
1782-201-272-00
53
1782-201-276-10
54
RETAININGRING
55
1782-201-278-10
56
BUSHING
57
THRUSTWASHER
58
BRAKELEVER
59
1782-201-286-00
60
BRAKEDISK
61
BRAKESHOE
62
SHIMKIT
63
BRAKEACTUATOR
64
BRAKESHAFT
65
1782-201-292-00
66
1782-201-300-00
67
SPRINGPIN4X18
68
CHARGEPUMPKIT
69
RESERVOLRTANK
70
PIPE8
71
1782-201-340-00
72
1782-201-341-00
73
TANKSPACER
74
FITTING
75
SEAL8
76
VENTVALVE15 ASSY
77
LOCKNUT10
78
NOTCHEDFAN8.4DIA
79
REPAIRKIT
80
CENTERCASEBB
81
CYLINDERBLOCKKIT
82
SEALKIT
83
FILTER
84
SEALWASHER10
85
O-RINGP18
86
SEALTC153507
87
O-RING1AP10A
88
FILTER
89
SEALTC162606
90
O-RING1AP14
91
SEALS25.4X42X8
92
O-RING1AP12
93
SEALANT
