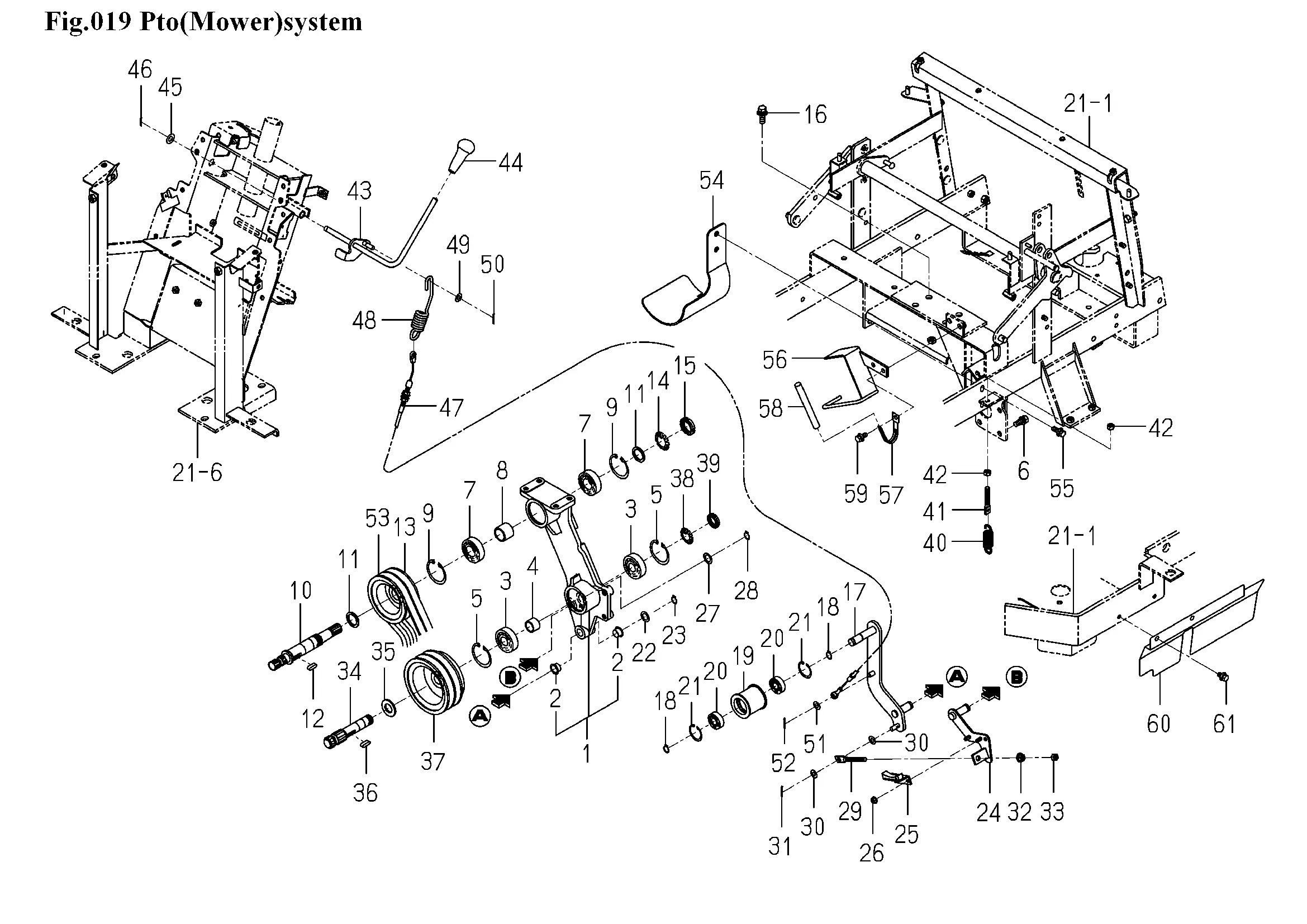

Front PTO
Ersatzteile (61 Teile)
1
1782-334-310-20
2
BUSH/15X17X11
3
V600-150-630-40
4
COLLAR/21X25X18
5
RING,SNAP/52 C
6
BOLT,S/M10X25/7T
7
BEARING/BALL
8
COLLAR/26X32X25
9
RING,SNAP/52 C
10
SHAFT/INPUT
11
WASHER/25X34X02
12
KEY/7X7X22
13
PULLEY/V2B104
14
WASHER,ADAPTER/AW05
15
NUT,ADAPTER/AN05
16
BOLT,SP/M10X30/7T
17
ARM/TENSION COMP
18
Sicherungsring 15x1
19
8663-201-062-10
20
V600-350-620-20
21
RING,SNAP/35 C
22
WASHER
23
Sicherungsring 15x1
24
ARM/PTO/BRAKE COMP
25
Bremsklotz
26
NUT/WASHER/M6
27
WASHER
28
Sicherungsring 15x1
29
ROD/M8X92
30
WASHER,PL/M8
31
PIN,SPLIT/2.5X20
32
Kombimutter-M8
33
NUT/M8
34
SHAFT/PTO
35
WASHER
36
KEY/7X7X22
37
PULLEY/V2B123
38
WASHER,ADAPTER/AW04
39
NUT,ADAPTER/AN04
40
SPRING/HE067
41
ROD/08X057
42
NUT/M8
43
LEVER/PTO COMP
44
GRIP/PTO
45
V411-260-010-00
46
PIN,SPLIT/2.5X20
47
1782-334-530-10
48
SPRING/HE138
49
WASHER,PL/M8
50
PIN,SPLIT/2.5X20
51
WASHER,PL/M8
52
PIN,SPLIT/2.5X20
53
BELT/VB031
54
GUIDE/BELT/LOWE COMP
55
BOLT,SP/M8X25
56
STOPPER/BELT COMP
57
CLAMP
58
TUBE/120
59
BOLT,SP/M8X20
60
1782-334-014-30
61
BOLT,SP/M8X16
