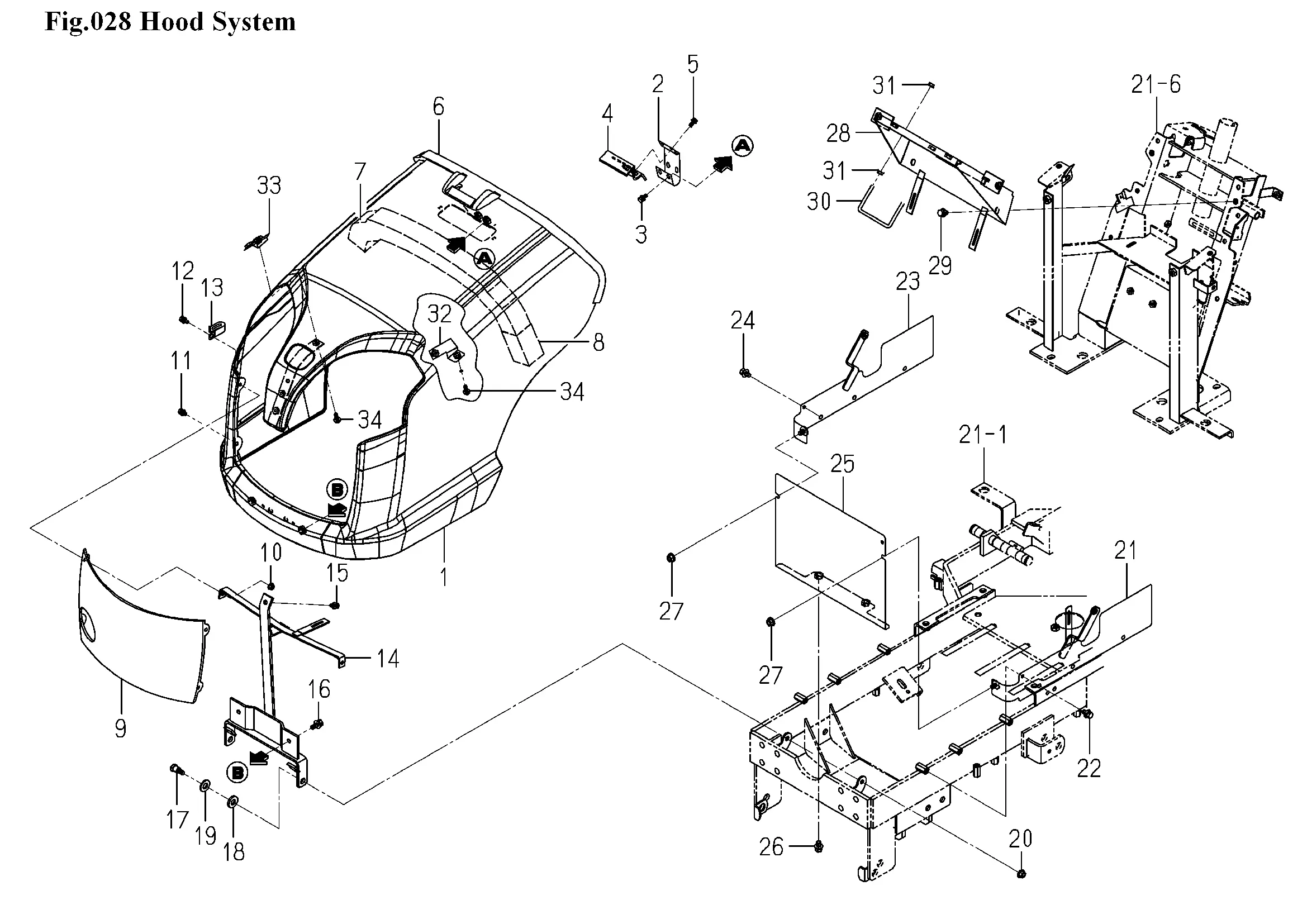

Motorhaube
Ersatzteile (34 Teile)
1
1782-601-710-20
2
PLATE/LOCK
3
BOLT,SP/M6X16
4
HANDLE COMP
5
SCREW,SP/M6X16
6
1739-601-075-40
7
SEAL/45X45X640
8
SEAL/45X50X80
9
1739-601-071-10
10
NUT/WASHER/M6
11
V210-360-601-20
12
BOLT,SP/M6X16
13
HOLDER/JE/9-9
14
ARM/HOOD COMP
15
BOLT,SP/M6X16
16
BOLT,SP/M8X20
17
1689-621-008-10
18
WASHER/12X26X04
19
V411-260-012-00
20
V363-260-008-00
21
COVER/SIDE/LH COMP
22
V231-360-801-20
23
COVER/SIDE/RH COMP
24
V231-360-801-20
25
COVER/ENGINE/F COMP
26
V231-360-801-20
27
Kombimutter-M8
28
BRACKET COMP
29
BOLT,SP/M8X16
30
Bügel, Verschluss Motorhaube
31
NUT/WASHER/M6
32
STAY/LH COMP
33
STAY/RH COMP
34
BOLT,SP/M6X16
