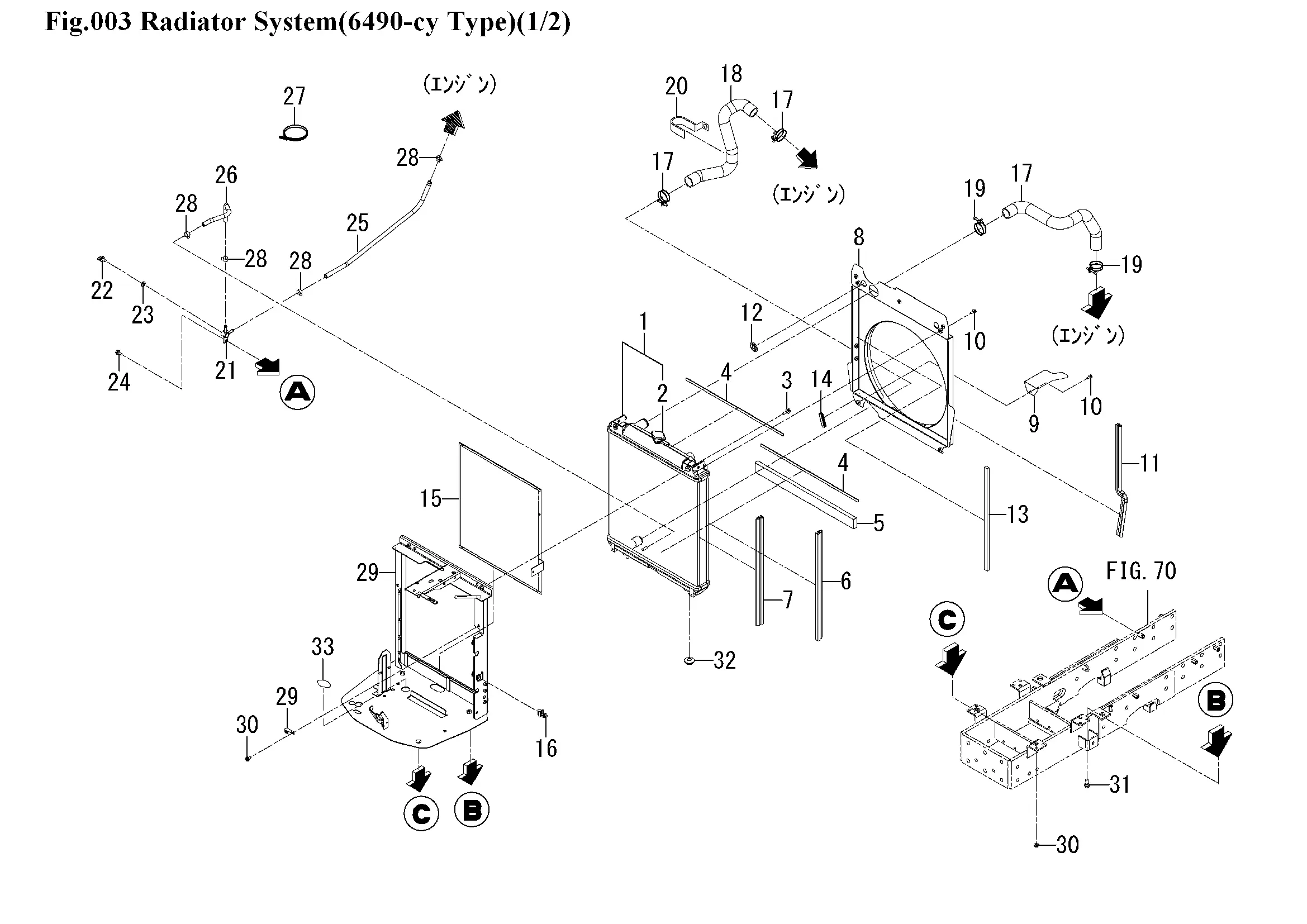

Kühler
Ersatzteile (59 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR
5
INSULATOR/40X480
6
INSULATOR/475
7
INSULATOR/475
8
1796-102-250-10
9
1796-102-005-00
10
1746-804-002-00
11
TRIM/510
12
3670-272-001-00
13
INSULATOR
14
INSULATOR/55
15
1796-102-260-20
16
LATCH ASSY
17
HOSE/RADIATOR/INLET
18
HOSE/RADIATOR/OUTLET
19
CLAMP/WIRE/36-44
20
CLAMP
21
CONNECTOR
22
1424-101-203-00
23
PACKING
24
BOLT,SP/M8X20
25
HOSE/230
26
1564-104-015-00
27
1342-402-006-00
28
CLIP/HOSE/14.7-15.9
29
1796-102-210-60
30
1746-816-001-00
31
1746-804-003-00
32
BUSH,LEVER
33
1801-504-002-00
34
1785-102-210-30
35
1746-817-001-00
36
WASHER,PL/M8
37
SPRING/HT020
38
1792-102-240-00
39
PIN/SNAP
40
1801-102-004-00
41
CAP/PARKING
42
RESERVETANK ASSY
43
CAP
44
PACKING
45
1690-102-214-00
46
1690-102-215-00
47
1690-102-216-00
48
HOSE/RUBBER
49
BAND,WIRE/140
50
1792-102-006-00
51
1746-804-003-00
52
1796-102-004-10
53
INSULATOR/700
54
PROTECTOR/185
55
TRIM/90
56
1746-804-001-00
57
1792-102-270-10
58
TUBE/07X09X30
59
1815-802-001-00
