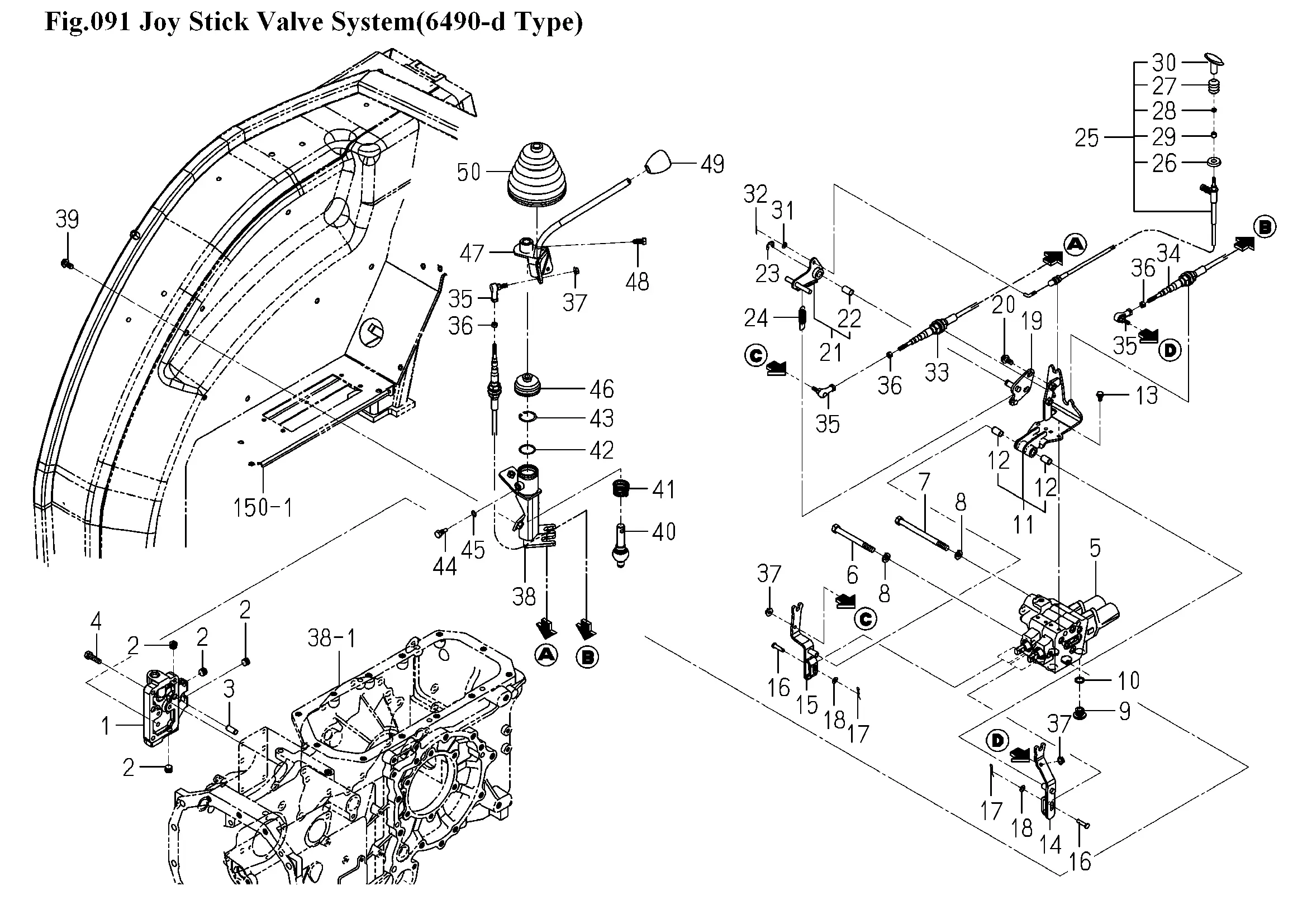

Kreutzhebel, Joy Stick
Ersatzteile (50 Teile)
1
1815-511-005-10
2
PLUG/SCREW
3
PIN,ST,B/10X24
4
V211-560-803-00
5
K211-109-000-00
6
V201-261-010-00
7
V201-261-013-00
8
WASHER,SP/M10
9
PLUG(G3/8)
10
O-RING/1B,P14
11
HOLDER/CABLE ASSY
12
BUSH/10X12X20
13
FLANGEBOLT/M6X12
14
1815-511-520-00
15
ARM/BUCKET
16
PIN/06X25
17
PIN/SNAP
18
V411-260-006-00
19
BRACKET/LOCK COMP
20
FLANGEBOLT/M8X16
21
ARM/LOCK ASSY
22
BUSH/10X12X20
23
RING,SNAP/9 E
24
SPRING/HE055
25
Bowdenzug, Arretierung, kpl.
26
1742-511-791-00
27
1742-511-792-00
28
1742-511-793-00
29
1742-511-794-00
30
KNOB
31
V411-260-005-00
32
PIN,SPLIT/1.6X15
33
CABLE/BOOM ASSY
34
CABLE/BUCKET ASSY
35
JOINT/BALL/M06
36
V301-260-006-00
37
NUT/FLANGE/M06
38
HOLDER/JOY COMP
39
FLANGEBOLT/M8X16
40
Halter, Joy Stick
41
SPRING
42
WASHER/27X32X01
43
RING,SNAP/32 C
44
BOLT/LOCK
45
WASHER/8X12X2
46
BOOT,CHANGE LEVER
47
LEVER/JOY COMP
48
BOLT/M8X16
49
GRIP
50
BOOT/JOY
