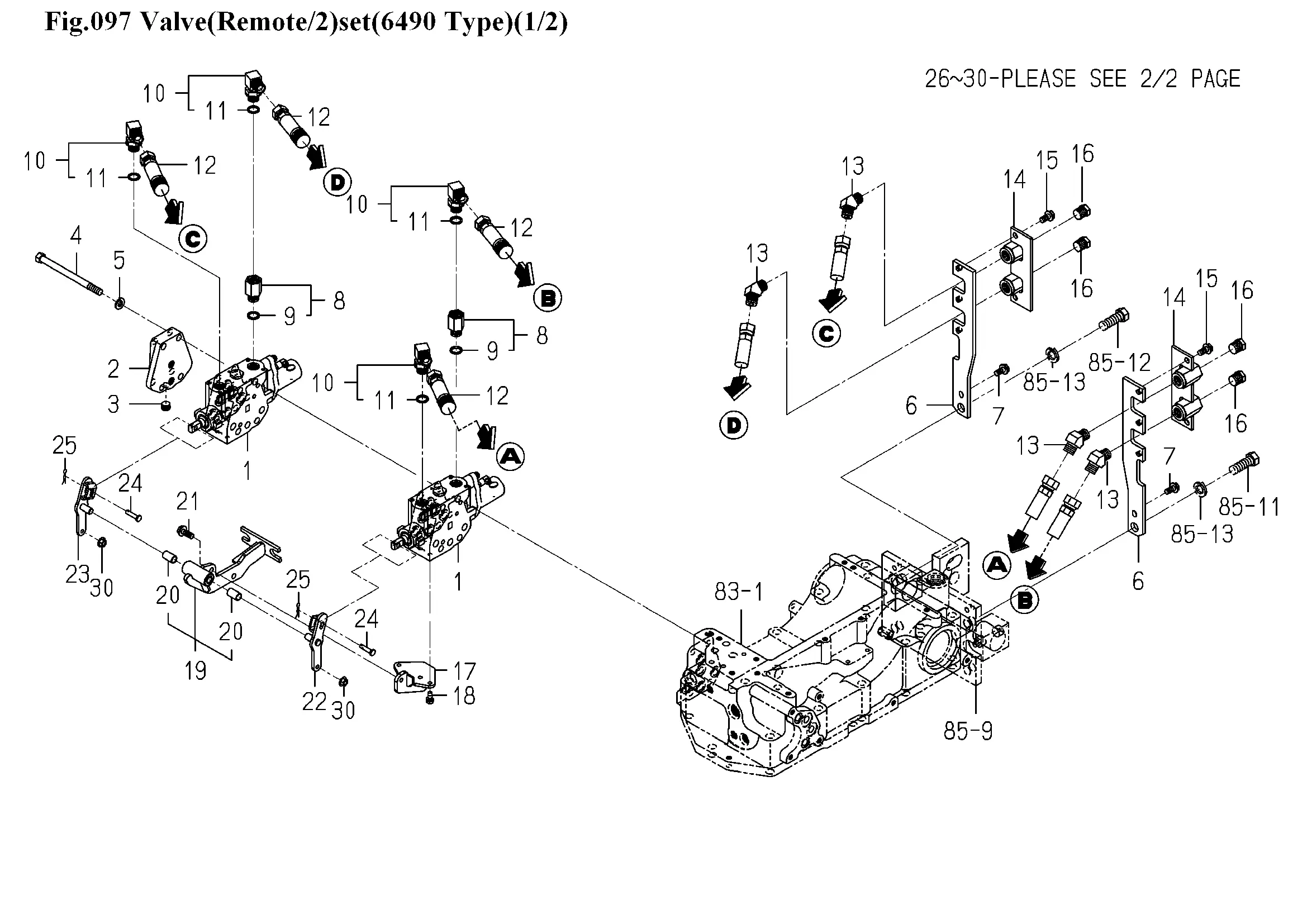

Zusatzsteuergerät
Ersatzteile (37 Teile)
1
VALVE/CONTROL/075/4
2
1792-511-002-00
3
PLUG/SCREW/SEAL
4
V201-361-013-00
5
WASHER,SP/M10
6
1742-512-001-20
7
FLANGEBOLT/M8X16
8
ADAPTER/G3/8 ASSY
9
O-RING/1B,P14
10
ADAPTER/L/G3/8 ASSY
11
O-RING/1B,P14
12
1801-509-250-00
13
ADAPTER/45/R3/8XG3/
14
1815-512-310-00
15
FLANGEBOLT/M8X16
16
PLUG/SCREW/SEAL
17
1816-512-220-10
18
BOLT,S/M6X16/7T
19
1816-512-240-00
20
BUSH/10X12X20
21
V231-360-802-00
22
1816-512-200-10
23
1816-512-210-10
24
PIN/06X23
25
PIN/SNAP
26
CABLE/FIRST ASSY
27
CABLE/SECOND ASSY
28
JOINT/BALL/M06
29
V301-260-006-00
30
NUT/FLANGE/M06
31
BRACKET/LEVER COMP
32
FLANGEBOLT/M8X16
33
LEVER/SUBCON ASSY
34
BUSH/10X12X15
35
1815-512-001-10
36
1719-312-001-00
37
GRIP/THROTTLE
