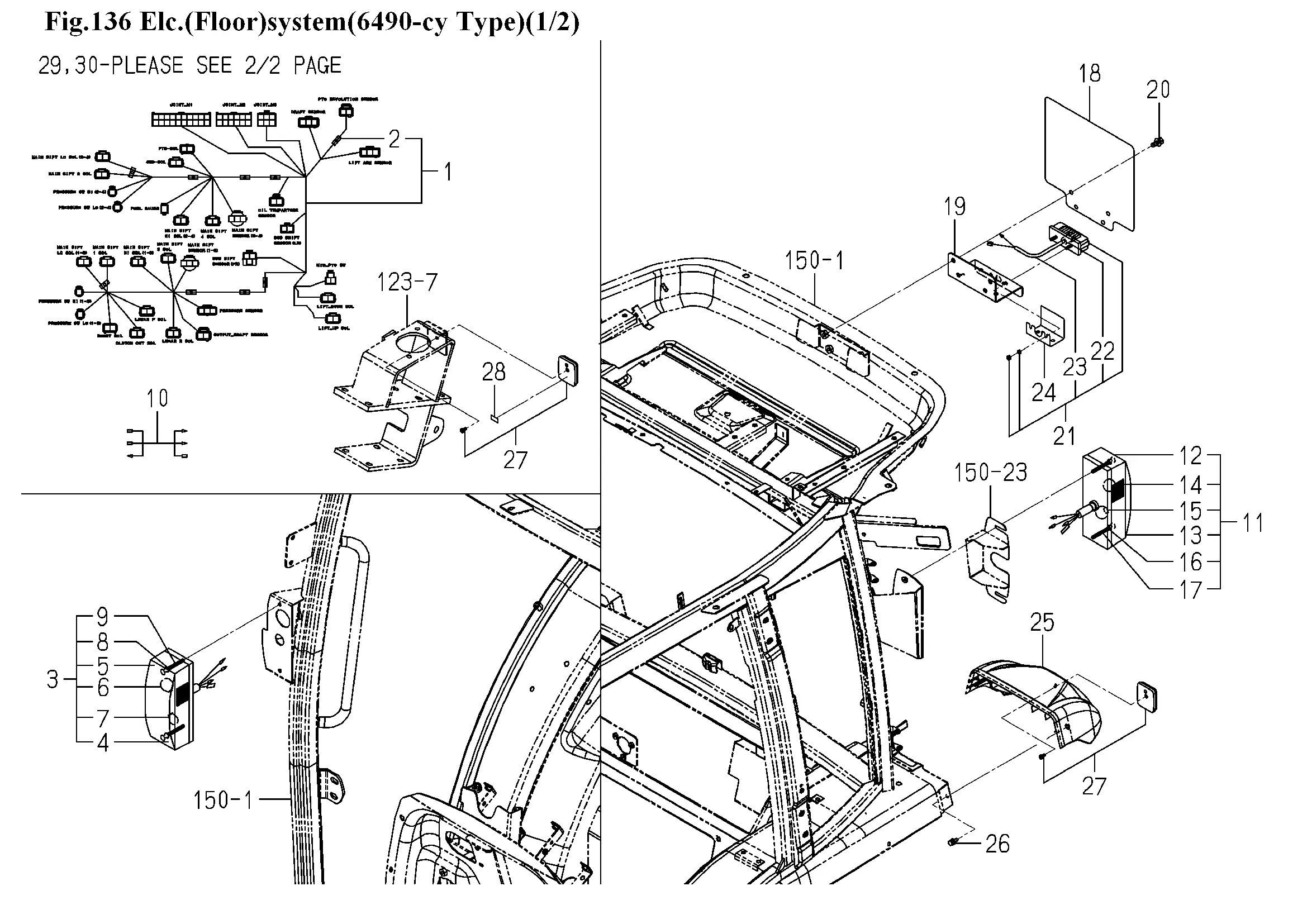

Beleuchtung, hinten
Ersatzteile (51 Teile)
1
1816-654-500-10
2
1801-654-201-00
3
LAMP/COMBINATIO ASSY
4
LENS
5
LENS
6
1564-654-213-00
7
1566-656-204-00
8
1792-652-233-00
9
SCREW
10
1801-654-260-00
11
LAMP/COMBINATIO ASSY
12
LENS
13
LENS
14
1564-654-213-00
15
BULB/12V21-5W
16
1792-652-233-00
17
SCREW
18
PLATE/NUMBER/E4
19
PLATE
20
FLANGEBOLT/M8X16
21
LAMP/NUMBERPLAT SET
22
1674-654-271-00
23
HARNESS/LAMP
24
GUARD/LIGHT
25
1792-606-001-10
26
BOLT,SP/M6X16
27
1674-654-400-10
28
1674-654-004-00
29
SENSOR/REVOLUTION/L
30
BOLT,SP/M6X16
31
1732-654-001-00
32
SWITCH/OIL/PRESSURE
33
Sensor
34
BOLT,SP/M6X16
35
SWITCH/PUSH ASSY
36
SENSOR/REVOLUTION/R
37
BOLT,SP/M6X16
38
Bremslichtschalter
39
ARM
40
BOLT,SP/M6X16
41
1815-654-510-00
42
FLANGEBOLT/M6X40
43
1815-654-001-00
44
V210-260-601-00
45
SWITCH,SAFETY ASSY
46
Schraube M4x30
47
Platte
48
BAND,WIRE/140
49
SOCKET/12V ASSY
ob
Taster heben-EHR
ob
Taster senken-EHR
