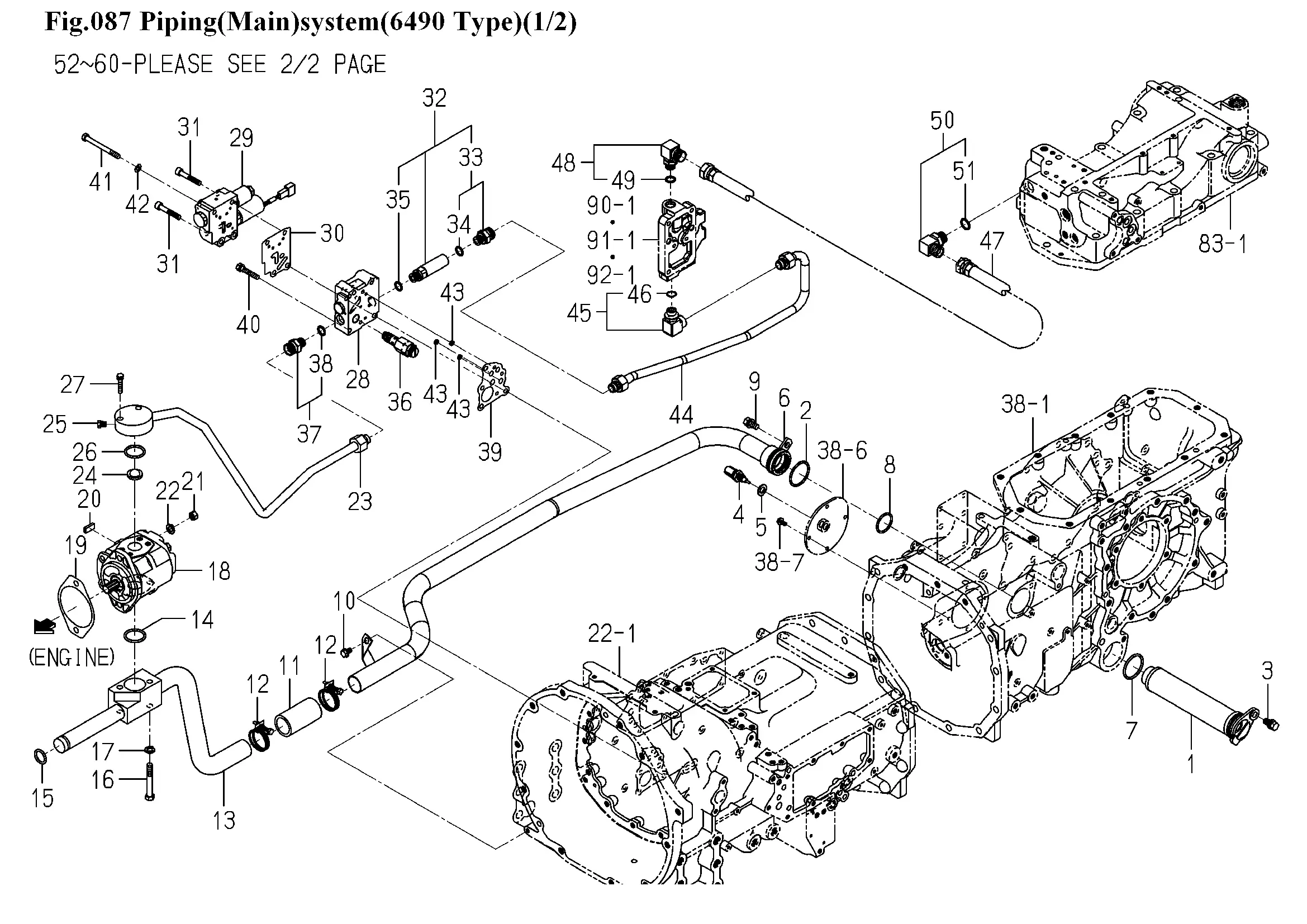

Hydraulikfilter, Leitung, Hydraulikpumpe
Ersatzteile (76 Teile)
1
FILTER/SUCTION/400
2
O-RING/1A,G45
3
BOLT,SP/M10X25
4
SENSOR/TEMP ASSY
5
1757-509-015-00
6
PIPE/SUC/REAR COMP
7
O-RING/1B,P44
8
O-RING/1A,G35
9
BOLT,S/M10X20
10
V231-360-801-20
11
Verbindungsschlauch
12
CLAMP/WIRE/36-44
13
1816-508-240-00
14
O-RING/1B,P34
15
RING/O
16
V201-361-007-00
17
WASHER,SP/M10
18
Hydraulikpumpe
19
GASKET/PUMP
20
Dichtung
21
NUT/M10
22
WASHER,SP/M10
23
PIPE/DEL/FRONT/ COMP
24
FILTER/LINE/18X28X14
25
PLUG/SCREW/SEAL
26
O-RING/1B,P32
27
BOLT,S/M6X35/7T
28
VALVE/REDUCE/06 SET
29
VALVE/INDEPENDENT/26
30
GASKET/HVA1/097
31
BOLT/M8
32
RELIEFVALVE/100 ASSY
33
1729-508-290-20
34
O-RING/1B,P14
35
O-RING/1B,P14
36
VALVE/RELIEF/10 ASSY
37
1729-508-290-20
38
O-RING/1B,P14
39
GASKET/REDUCE
40
V211-260-804-50
41
V201-260-808-50
42
WASHER,SP/M8
43
FILTER/PORT/09
44
1816-508-220-10
45
ADAPTER/L/G3/8 ASSY
46
O-RING/1B,P14
47
1792-508-240-00
48
ADAPTER/L/G1/2 ASSY
49
O-RING/1B,P14
50
ADAPTER/90/G/1/ ASSY
51
RING/O
52
VALVE,HYDUALIC/PFV/3
53
O-RING/1B,P20
54
O-RING/1B,P14
55
FILTER/LINE/12X18X15
56
COLLAR/16X18X15
57
V211-260-806-00
58
K231-008-000-20
59
O-RING/1B,P10A
60
RING/BACK UP
61
COLLAR/11X21X03
62
RING/SNAP
63
SEAL,DUST
64
O-RING/1B,P22
65
O-RING/1B,P16
66
NUT/M10
67
1796-508-001-00
68
COVER/SHAFT COMP
69
V201-260-802-00
70
NUT/M8
71
KNOB
72
SCREW/M6X40
73
V401-160-006-00
74
VALVE/RELIEF/08 ASSY
75
O-RING/1B,P16
76
O-RING/1B,P11
