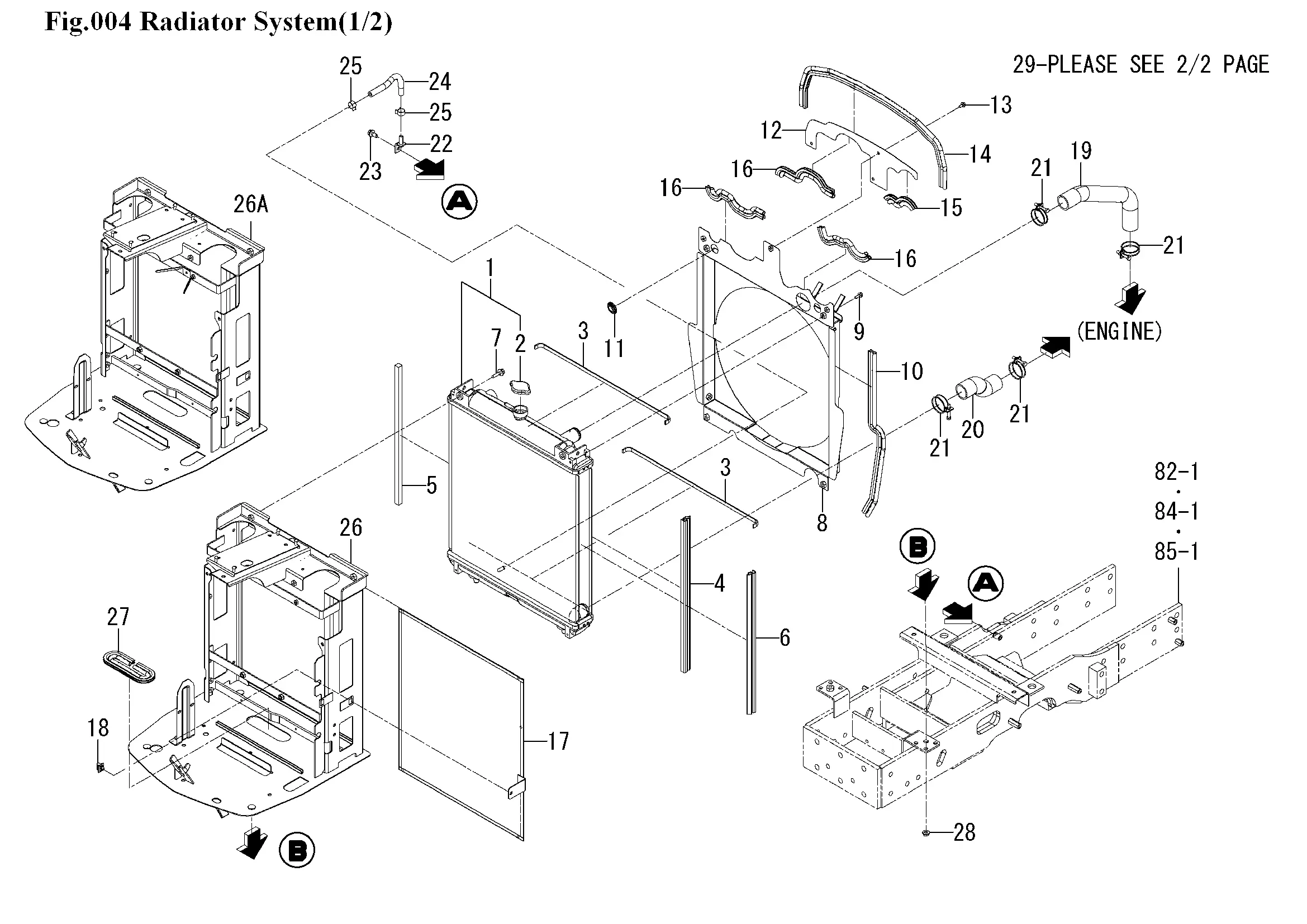

Kühler
Ersatzteile (53 Teile)
1
RADIATOR ASSY
2
CAP
3
INSULATOR
4
INSULATOR/475
5
INSULATOR/15X15X470
6
INSULATOR/475
7
1746-803-003-00
8
1817-102-330-10
9
1746-804-002-00
10
TRIM/510
11
3670-272-001-00
12
1817-102-011-00
13
1746-804-001-00
14
INSULATOR/700
15
INSULATOR/115
16
INSULATOR/220
17
PROTECTOR/NET COMP
18
LATCH ASSY
19
HOSE/RADIATOR/INLET
20
HOSE/RADIATOR/OUTLET
21
CLAMP/WIRE/36-44
22
1817-102-320-00
23
BOLT,SP/M8X20
24
HOSE/205
25
CLIP/HOSE/14.7-15.9
26
1817-102-300-20
26A
1817-102-300-30
27
TRIM/320
28
1746-816-001-00
29
BUSH,LEVER
30
1560-666-004-00
31
INSULATOR/140
32
1792-102-071-00
33
PAD/25
34
1817-102-310-00
35
1746-817-001-00
36
WASHER,PL/M8
37
3673-641-004-00
38
1817-102-031-10
39
PIN/SNAP
40
1798-102-730-00
41
CAP
42
PACKING
43
1690-102-214-00
44
1798-102-741-00
45
1690-102-216-00
46
1798-102-742-00
47
BAND,WIRE/140
48
1792-102-270-10
49
TUBE/07X09X30
50
1815-802-001-00
51
NET/SIDE/RH
52
CLIP(B)
