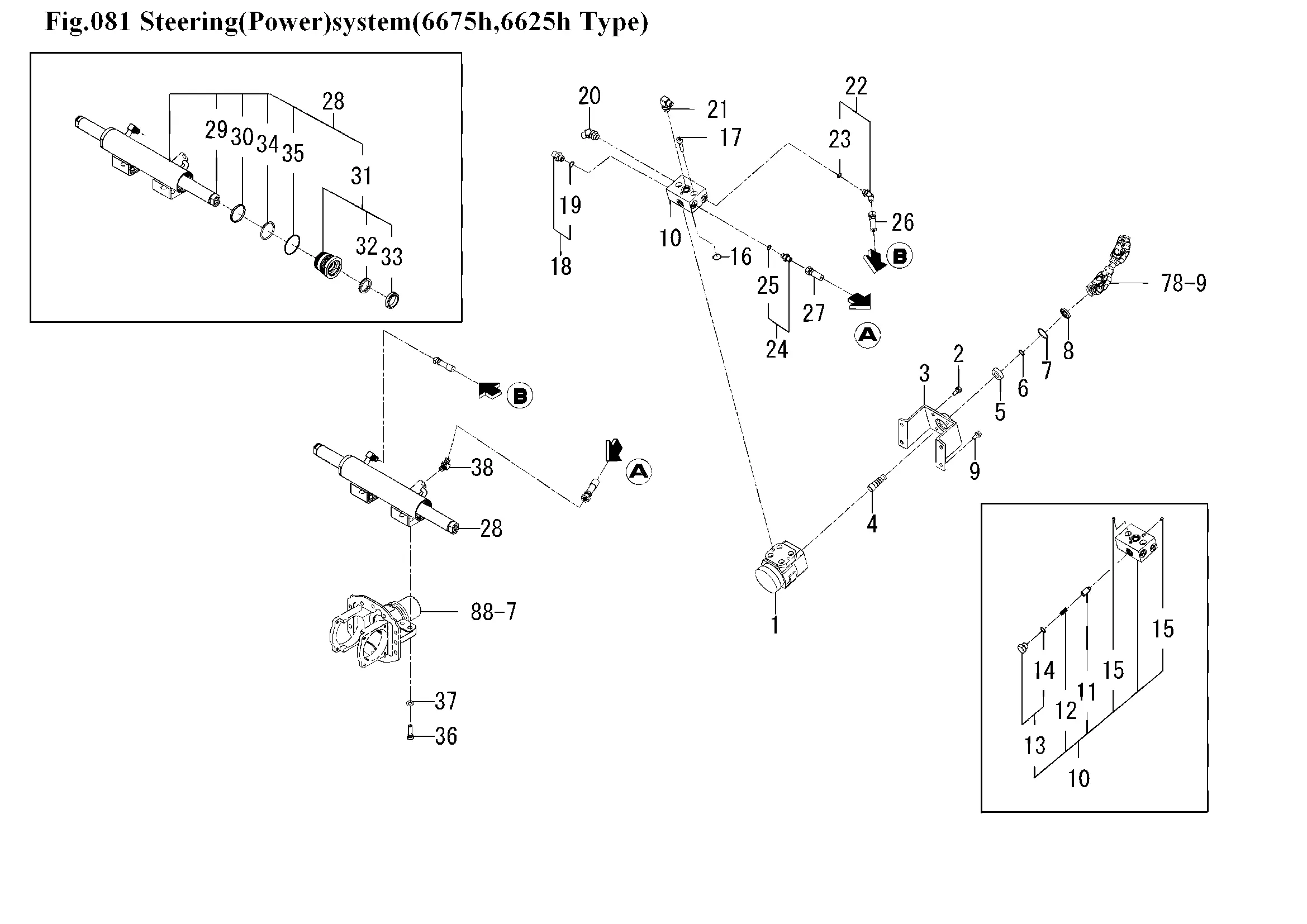

Lenkzylinder
Ersatzteile (38 Teile)
1
1646-407-670-20
2
BOLT,S/M10X20/7T
3
1817-407-210-10
4
SHAFT
5
BEARING,RB/6003ZZ
6
RING,SNAP/17 C
7
RING,SNAP/35 C
8
SEAL,OIL/VC17355
9
BOLT,S/M10X25/7T
10
1815-407-310-00
11
1843-509-001-00
12
SPRING/HC024
13
PLUG/G3/8 ASSY
14
O-RING/1B,P14
15
PLUG/SCREW/SEAL
16
O-RING/1B,P20
17
V220-541-004-00
18
ADAPTER/PF3/8 ASSY
19
O-RING/1B,P14
20
ADAPTER (G3/8B-G3/8B
21
CONNECTOR
22
ELBOW/45DEG ASSY
23
O-RING/1B,P11
24
ADPTER/G1/4.1/4
25
O-RING/1B,P11
26
1817-407-220-10
27
1817-407-230-10
28
K167-007-000-20
29
ROD/PISTON COMP
30
PACKING/PISTON
31
COVER/ROD SET
32
PACKING/ROD
33
SEAL/DUST
34
O-RING/1B,P44
35
O-RING/1A,S53
36
1763-410-006-10
37
WASHER,SP/M12
38
ADAPTER/45DEG
