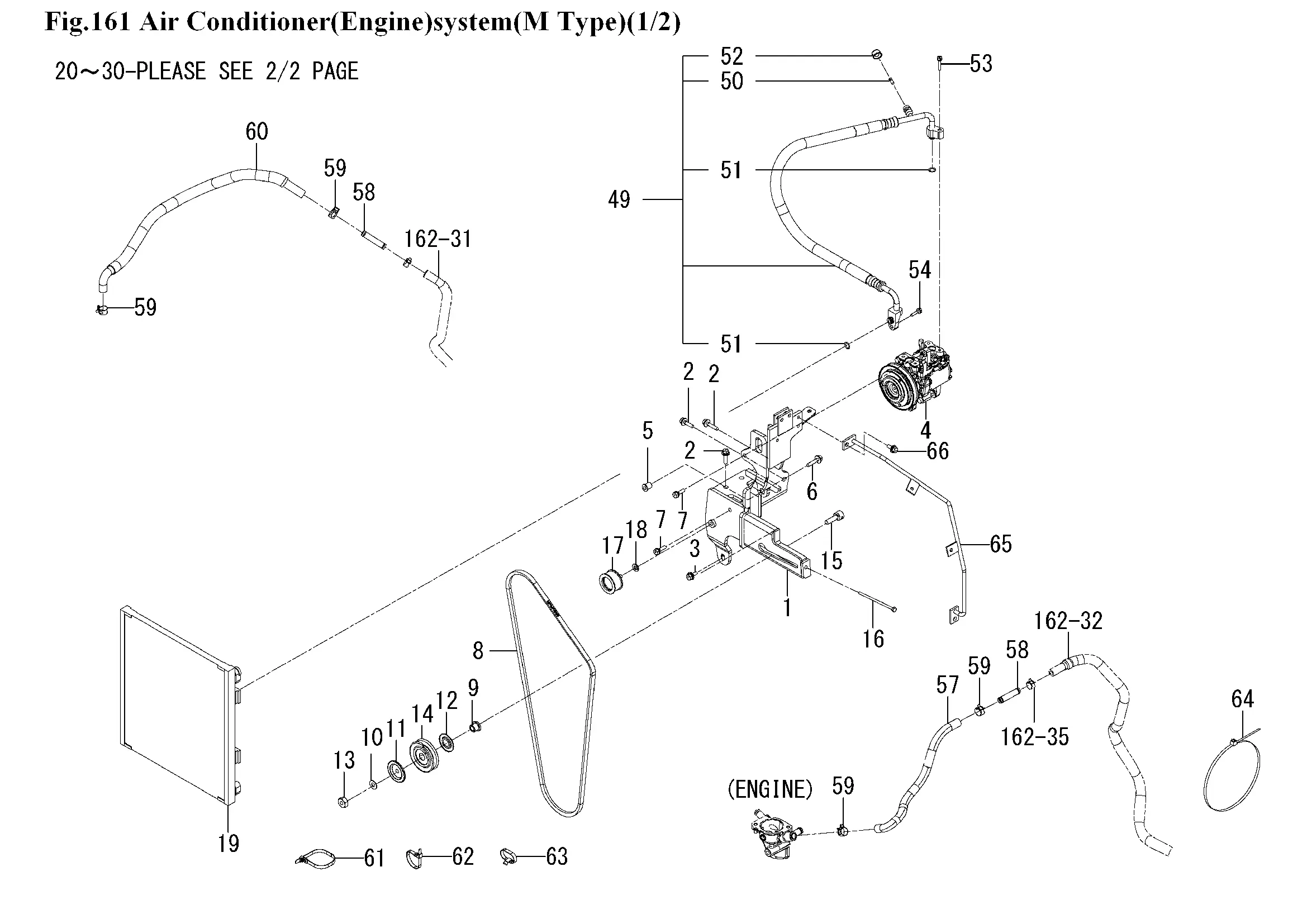

Kompressor, Klimaanlage
Ersatzteile (66 Teile)
1
1817-780-310-00
2
BOLT,SP/M8X30/7T
3
V211-660-802-00
4
COMPRESSOR ASSY
5
1716-780-001-00
6
V211-660-803-50
7
BOLT,S/M8X25/7T
8
BELT/V/HM/56.5
9
1599-782-531-10
10
WASHER/W
11
COVER/G1
12
COVER/G2
13
NUT
14
1599-782-540-10
15
SHAFT
16
BOLT/M06X110
17
PULLEY/FT/45X20 ASSY
18
WASHER,SP/M10
19
CONDENSER ASSY
20
BOLT/SP
21
1792-780-290-10
22
1792-780-280-40
23
1815-802-001-00
24
1757-780-002-00
25
1757-780-003-00
26
WASHER/6X24X2
27
1815-802-002-00
28
1817-780-300-00
29
1690-780-001-00
30
1815-802-001-00
31
RECEIVER/DRYER ASSY
32
1729-780-250-10
33
BOLT/SP
34
1759-308-001-00
35
NET/CONDENSER/350X36
36
LATCH ASSY
37
JOINT/RECEIVER/LH
38
O-RING
39
BOLT/SP
40
PIPE/LIQUID ASSY
41
O-RING
42
BOLT/SP
43
BOLT/S
44
1817-780-280-00
45
1729-780-512-00
46
O-RING
47
PLUG
48
V210-260-603-00
49
1817-780-240-10
50
1729-780-512-00
51
O-RING
52
PLUG
53
V210-260-603-00
54
BOLT/SP
55
1792-780-004-00
56
V210-360-602-00
57
1800-780-005-10
58
1800-780-007-00
59
CLIP/HOSE/18-22
60
HOSE/HEATER/L/800
61
BAND,WIRE/140
62
1342-402-006-00
63
1560-666-004-00
64
CLAMP
65
1817-780-320-00
66
FLANGEBOLT/M8X16
