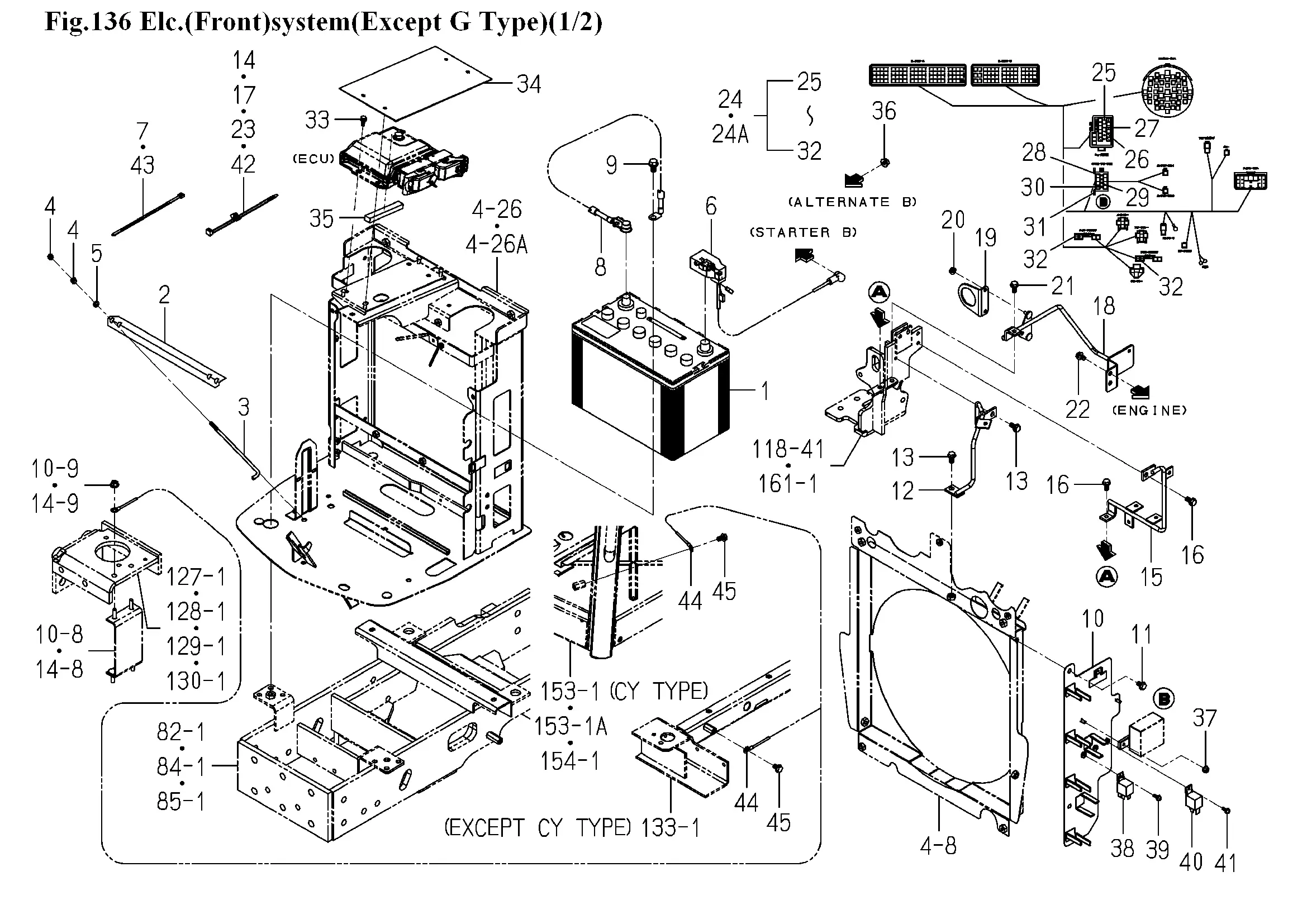

Batterie, Scheinwerfer
Ersatzteile (60 Teile)
1
BATTERY/115D31R ASSY
2
1422-687-001-10
3
BOLT/M6X250
4
1746-811-001-00
5
V411-260-006-00
6
1816-650-200-50
7
BAND,WIRE/140
8
CABLE/EARTH ASSY
9
1815-804-001-00
10
1817-650-400-10
11
V231-360-801-20
12
1817-650-410-00
13
FLANGEBOLT/M8X16
14
1560-666-004-00
15
1817-650-430-00
16
FLANGEBOLT/M8X16
17
1560-666-004-00
18
1817-650-420-10
19
1817-650-004-00
20
NUT/WASHER/M6
21
FLANGEBOLT/M8X16
22
V231-360-801-20
23
1560-666-004-00
24
1817-650-440-10
24A
HARNESS/ENGINE ASSY
25
FUSE/BLADE/32V05A
26
FUSE/BLADE/32V15A
27
FUSE/BLADE/32V30A
28
FUSE/SLOW BLOW/50A
29
FUSE/SLOW BLOW/60A
30
FUSE/SLOWBLOW/80A
31
COVER/FUSE
32
DIODE
33
BOLT/SP
34
1817-650-001-00
35
1829-630-066-00
36
Kombimutter-M8
37
NUT/WASHER/M6
38
RELAY/35A ASSY
39
V120-365-001-60
40
RELAY ASSY
41
V120-365-001-60
42
1560-666-004-00
43
1342-402-006-00
44
1817-650-450-00
45
V231-360-801-20
46
1815-650-210-10
47
BULB/12V60/55W
48
1815-650-220-10
49
BULB/12V60/55W
50
BOLT/SP
51
1816-650-210-00
52
1560-666-004-00
53
BAND,WIRE/140
54
1650-652-014-00
55
1342-402-006-00
56
1740-680-530-20
57
WASHER/6X14X3
58
1118-606-002-10
59
V411-260-006-00
