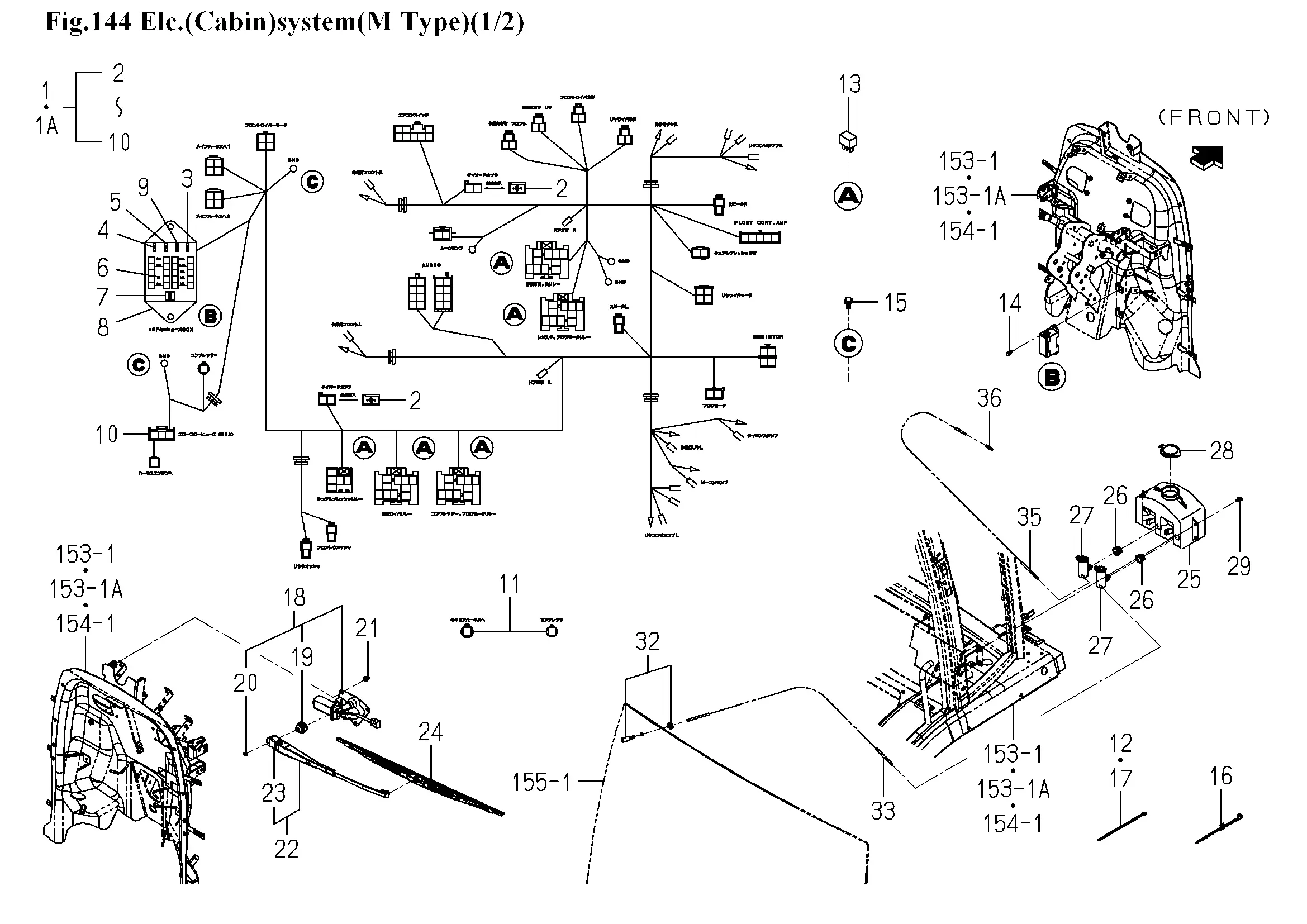

Elektrik, Kabine oben
Ersatzteile (69 Teile)
1
1817-658-300-10
1A
1817-658-300-20
2
DIODE/3A
3
FUSE,BLADE/32
4
FUSE/BLADE/32V15A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V05A
7
TOOL/FUSE
8
COVER/FUSEBOX
9
FUSE/BLADE/32V7.5A
10
FUSE/SLOW BLOW/50A
11
1817-658-210-00
12
BAND,WIRE/140
13
RELAY/5P ASSY
14
BOLT,SP/M6X16
15
FLANGEBOLT/M6X12
16
1560-666-004-00
17
1342-402-006-00
18
MOTOR/WIPER/175 ASSY
19
GROMMET
20
V301-260-006-00
21
BOLT/M6X16X16
22
ARM/WIPER/350 ASSY
23
1696-658-301-00
24
BLADE/WIPER/450 ASSY
25
TANK/WASHER/2M
26
GROMMET/W/T
27
PUMP/W/T
28
CAP/TANK/WASHER
29
BOLT/M6X16X16
30
Switch Wiper Assy
31
1746-658-002-00
32
Nozzle Washer Assy
33
1729-658-002-00
34
CAP/22X38
35
1690-658-003-00
36
VALVE/CHECK
37
LAMP/WORKING/35 ASSY
38
VALVE/HALOGEN/12V35W
39
1817-658-004-00
40
STAY
41
FLANGEBOLT/M6X16
42
1790-705-008-00
43
REAR DIFF SWITCH
44
DIFF LOSTING MARK
45
1711-666-052-10
46
1711-666-053-10
47
1800-658-001-00
48
1801-658-001-00
49
BOLT/M6X16X16
50
COVER/AUDIO/E4
51
1729-705-008-00
52
1801-658-003-00
53
SPEAKER ASSY
54
COVER/SPEAKER
55
V111-174-001-60
56
V360-260-004-00
57
1800-720-017-00
58
LAMP/ROOM ASSY
59
1792-658-301-00
60
1792-658-302-00
61
1792-658-310-20
62
SCREW,SP/M5X20
63
FLANGEBOLT/M6X10
64
SWITCH/DOOR ASSY
65
NUT/M10
66
1817-658-003-00
67
RIVET/PUSH/07
68
CLAMP,WINKER B
